17,637 lbs.18'9"x 4'9" x 6'8" 87'2" (with JIB300.3H)65'7" (with JIB300.3H)

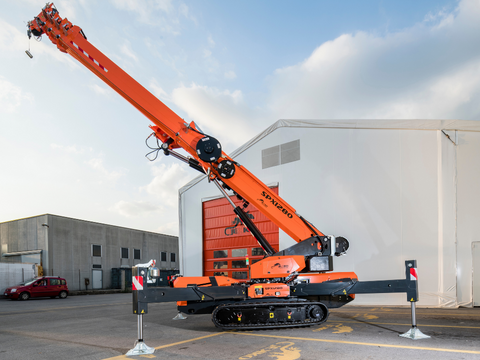

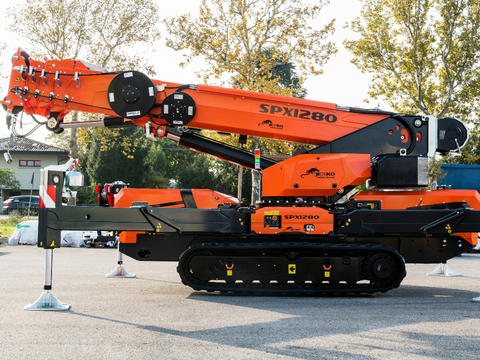

Reduced stabilization area, 7.87-ton max capacity, 87.2-foot max working height, 2-ton pick & carry: a mini crane with unique features which make it incomparable on the market.


SPX1275 SPX1275
1 Hook & Pulley Hook & Pulley

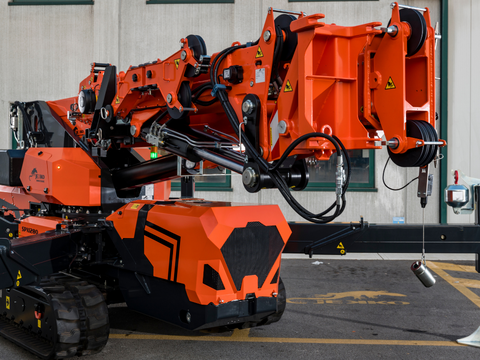

JIB working with hook or pulley mode

2 Three different JIB Three different JIB

- 1.500 Kg Hydraulic flying JIB
- 1.500 Kg Lattice flying JIB
- 3.500 Kg Runner JIB

3 Hydraulic Grabber Manipulator Hydraulic Grabber Manipulator

300 Kg pipe and beam manipulator

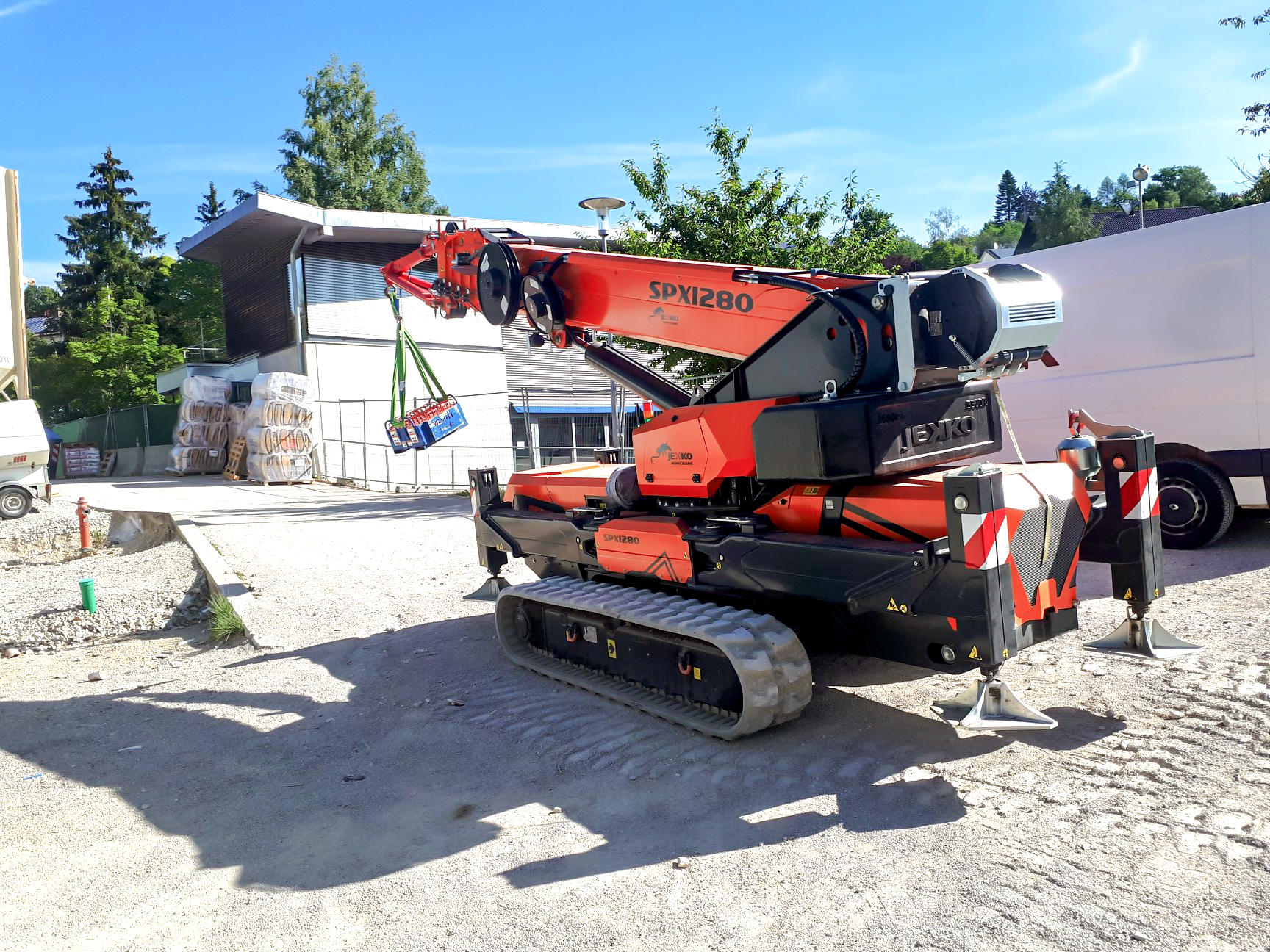

4 Pick & Carry Pick & Carry

2 tons 360° rotating pick & carry capacity

Extendable Tracks
Extendable Tracks

Independent extendable tracks to increase steering and 360° pick & carry

6 Power Pack Power Pack

External three-phase power pack

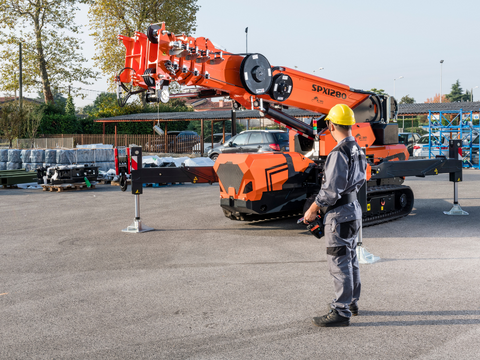

7 Radio Remote Control Radio Remote Control

- Large display
- Proportional radio remote control with two batteries
- Crane and crawler control

8 Continuous 360° rotation Continuous 360° rotation
9 Electronic LMI Electronic LMI

- Automatic stability control
- Plug & Play
- Diagnostic troubleshooting
- Friendly display with all the information
- Full safety respect EN13000

10 Virtual Wall Virtual Wall

Anti-collision system with acquisition of the working area

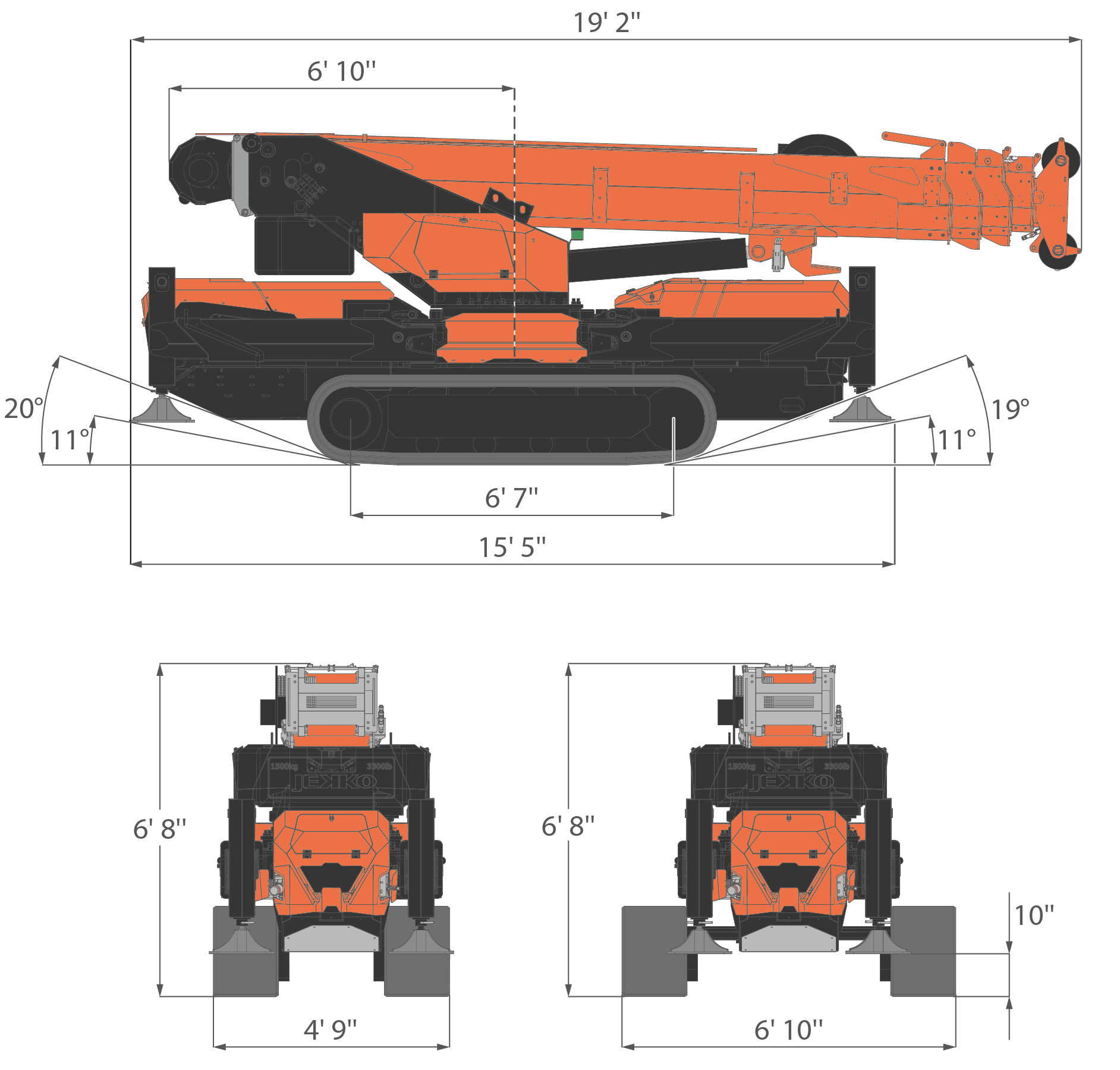

Dimensions 18’9″x 4’9″ x 6’8″
Stabilization Area 15′ x 15′
Weight Pounds
Crane SPX1280 15,432
Counterweight 3,300
Hookblock / Capacity 8T-D10 242
Auxiliary Power Pack PP400-8D     PP220-8D 264
PP400-11DV 308
Jib JIB3500GX 154
JIB1501.3HL 1499
JIB1500.1FL 595

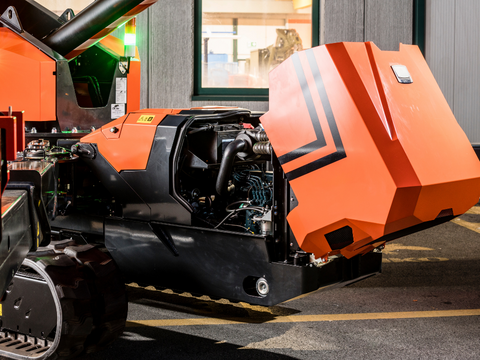

Engine (Diesel & Battery)
Engine KUBOTA D1105-E4B
Diesel Fuel Yes
Liquid Cooling Yes
Power 18.5 kW                          25 Hp
Other Information
Main Winch 3,300 lbs                        410 ft  – Ø 13/32 in      209.3 – 377.6 ft/min
Max Outrigger Load 14,991 lbs.
Max Track Load 10.24 lb/in2
Travel Speed .9 – 1.86 mph
Gradeability 20°
Extendable Tracks 4’9″-6’9″

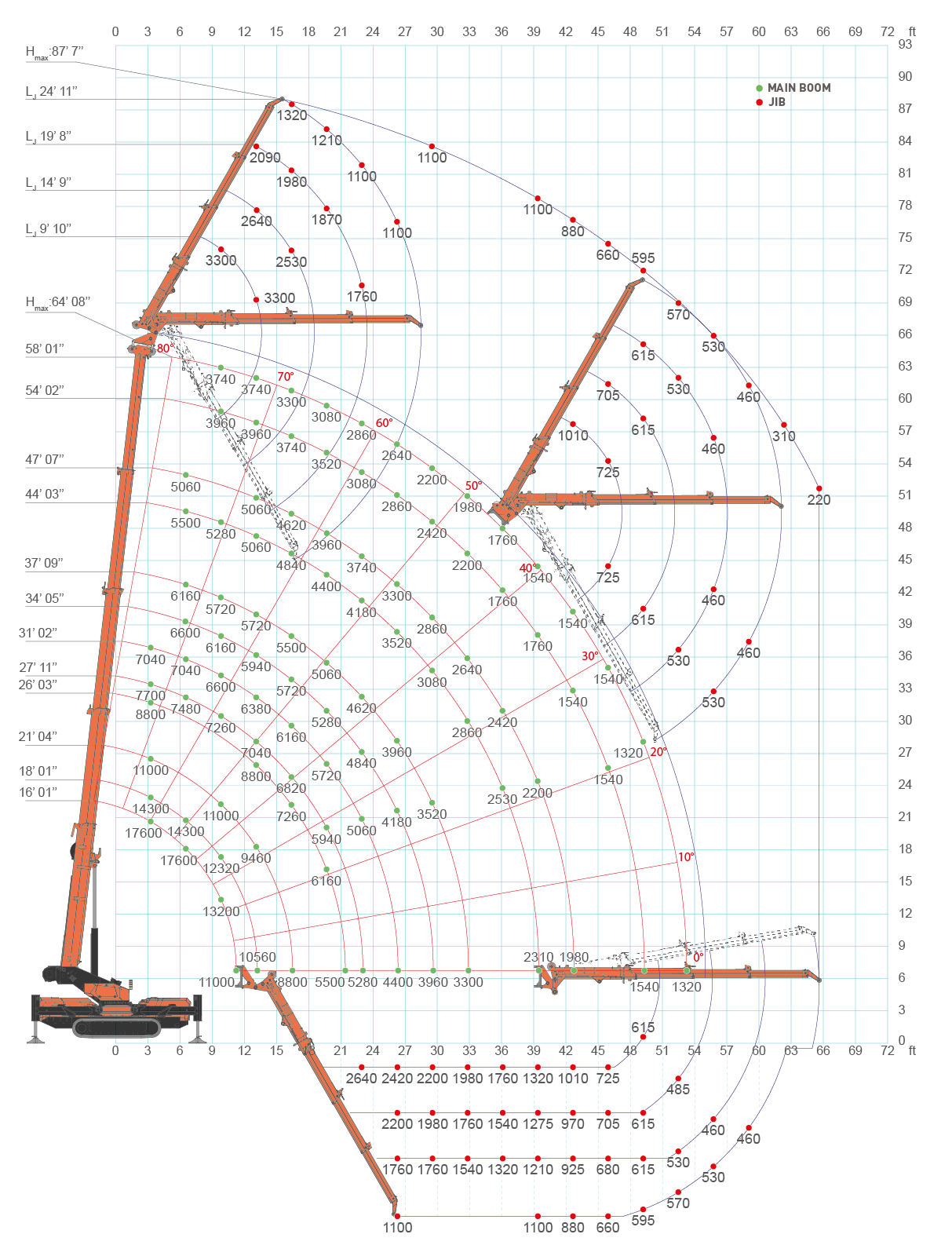

1280 LOAD CHART_JIB15023HX_cropped

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines


3,307 lbs capacity 410 ft  - Ø 13/32 in

Anti Two Block (A2B)

This switch prevents the hook from blocking or from being pulled against the boom end.

Crane-Carrier Interlock (CCI)

This system interlocks the functions of the crane and of the carrier.

Diagnostic Trouble Code (DTC)

Onboard diagnostic system for troubleshooting

Extendable Tracks (EXT)

Horizontally (SPX1040, SPX1275, SPK60) or 45° (SPB209, SPX312-424, SPX532) extending tracks

Geometrical Stability Control (GSC)

Geometrical Stability Control (GSC) shows the position of each single outrigger and operating sector.

Load Moment Indicator (LMI)

The LMI prevents overload or tipping of the machine.

Pick & Carry (P&C)

The machine can move on its tracks while the load is lifted up.

Virtual Walls (VW)

Automatic setting of ‘virtual walls’ to restrict the working areas.

Two Speed Tracks (2ST)

Two Speed Winch (2SW)

Winch double speed

Radio Control Display (RCD)

Display on the radio remote control showing the machinery  load information.

Single Line Hook

Hook for single line pull of the rope.

Transportation Anchor Points

Anchor points for handling and transport of the minicrane

Bubble Level

To check correct stabilization

LED Working Light

Light positioned on the boom for operation at night

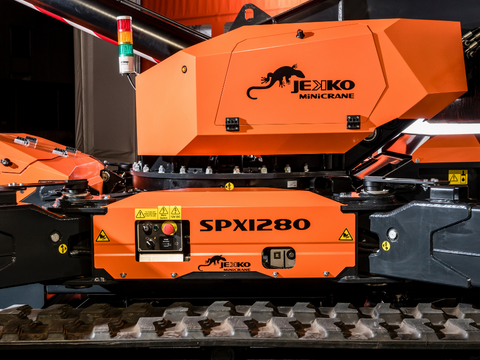

Tower Lamp

Tower lights (green/yellow/red) that signal errors and dangers


The Jemmy software manages all the machine functions

Radio Remote Control + 2 batteries

Scanreco proportional multipurpose radio remote control with additional battery


SPX1280CDH-2: Diesel Engine Kubota V1505-E4B - 18.5 kW - Diesel

Jib Hook or Winch Mode

Jib hook mode and winch mode are both possible.


All mini cranes Jekko can be customized depending on the industry for which they should be used.

Pulley Block

Pulley used to configure the different parts of line

Power Pack

400V or 220V additional electric motor (North America)

Runner Jib

Hook jib

Hydraulic Jib

Built-in and radio remote controlled hydraulic jib.

Luffing Jib

Lattice boom with varied angles and manual extension

Winter Kit

The Winter Kit warms up some components for operation at low temperatures

Visual Angle Indicator (VAI)

Working angle indicator, compulsory for North America

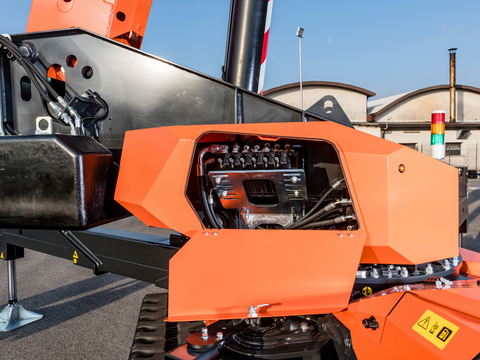

Hydraulic Extra Functions

Hydraulic activation for hydraulic accessories such as jibs and manipulators. It is necessary to deliver oil to the machine boom end.

Personalized Colour

Customized paint colour, choice of engine housing/boom or complete crane.

Low Marking White Tracks

Low marking white tracks for indoor operation.

Grabber Pipe Manipulator

With quick-coupling.
