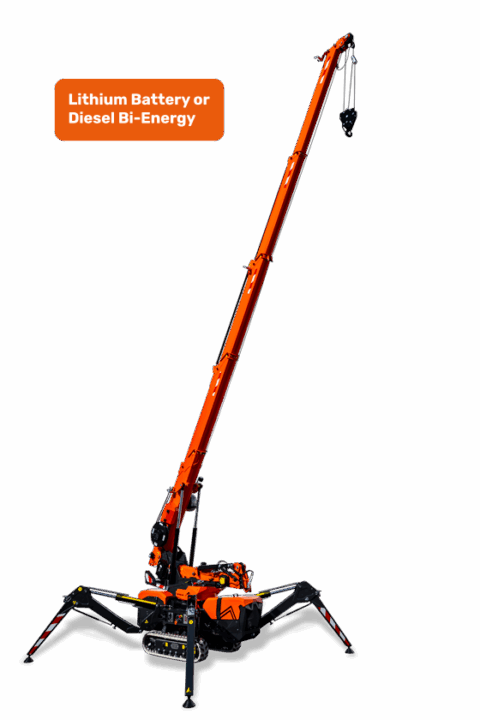

Model available with
standard or lithium batteries

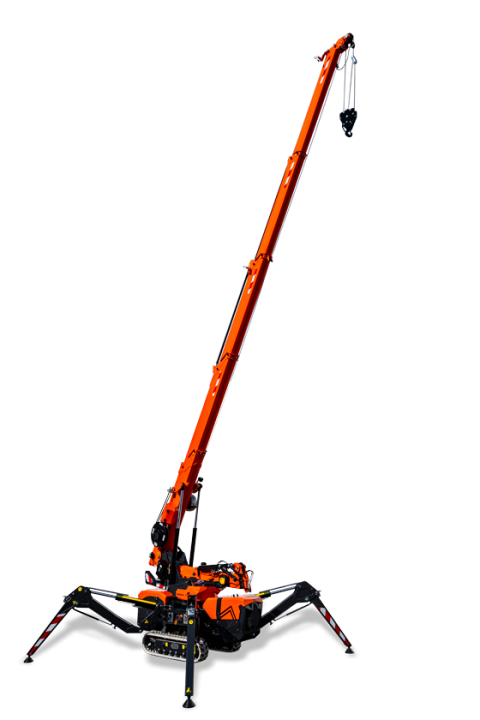

Minicrane

SPX509.2

Name: SPX509.2
Brand: Jekko
SKU: SPX509.2

1,950 lb10' 4'' x 2' 6'' x 6' 5''56' 09''48' 07"

The most user-friendly crane you can find, featuring the most advanced stability system on the market. This next-generation mini crane ensures top level performance.

Download the Technical Sheet Download the brochure SPX509.2_CDH_V25.11_USA_DIGITAL Download the brochure SPX509.2_CL_V25.11_USA_DIGITAL

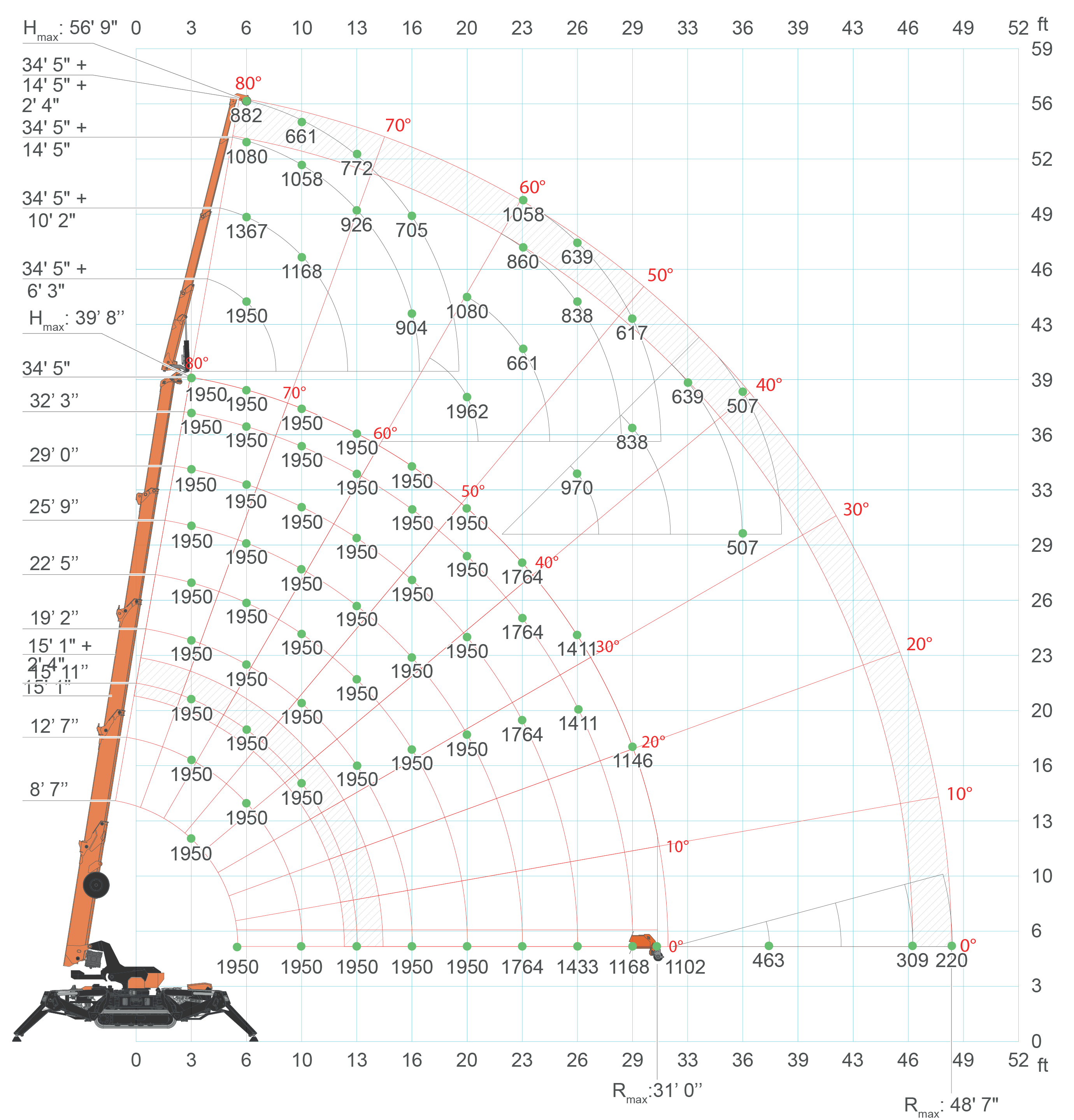

Load Chart

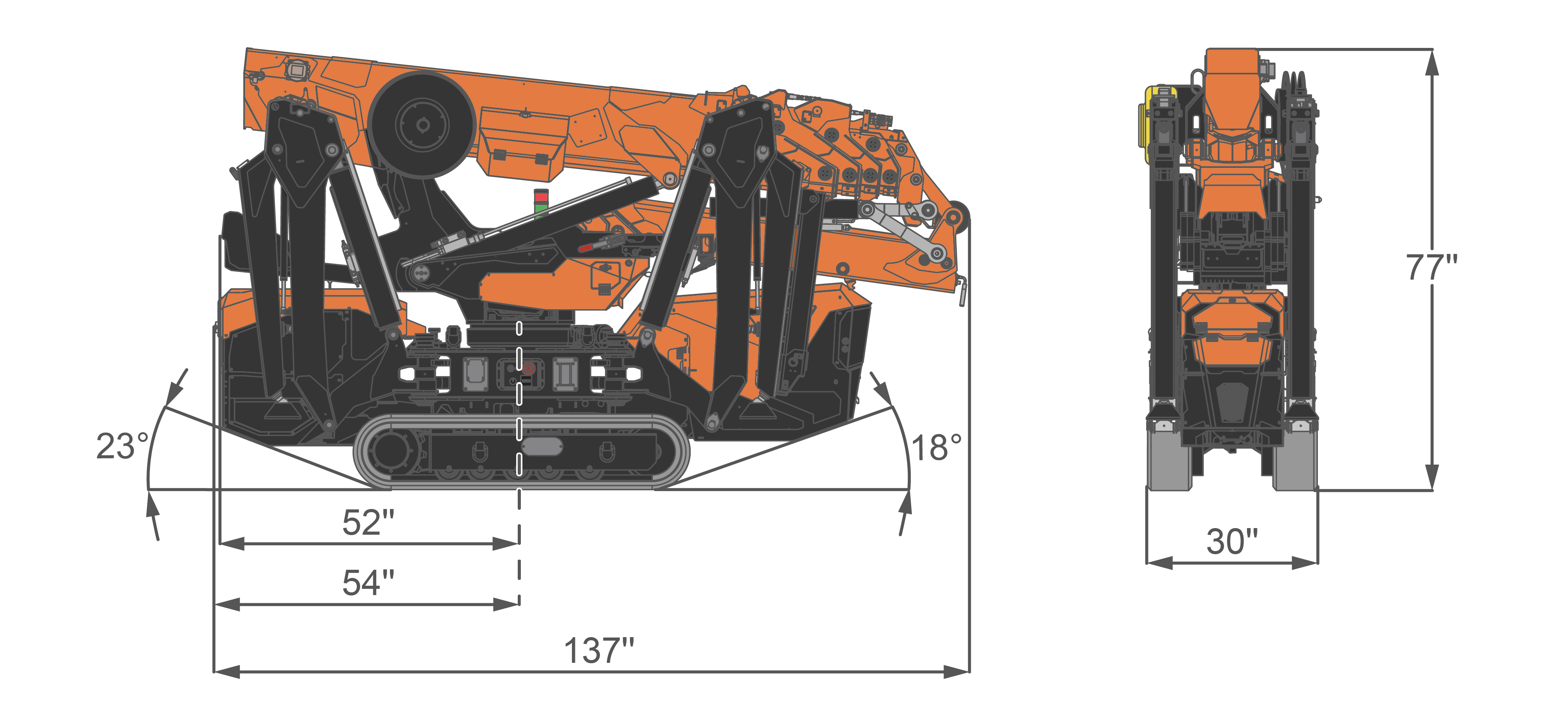

Dimensions

SPX532 - Dimensioni 1-M CL-CL2 imperiale_WEB

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

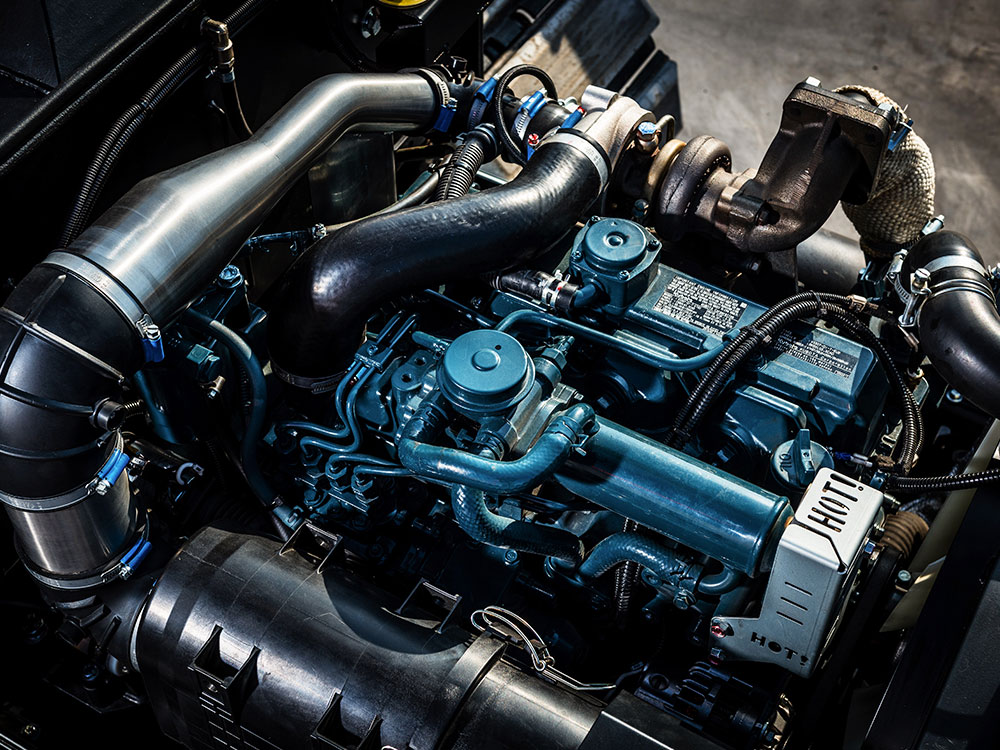

Diesel Engine

Kubota Diesel engine with DPF filter automatic management. Variable Speed Engine Management for low consumption, low noise, faster crane movement. Eco/Normal/Power working modes

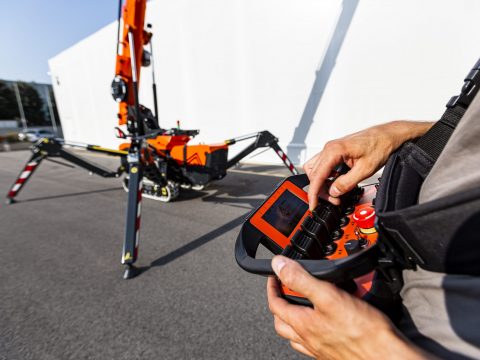

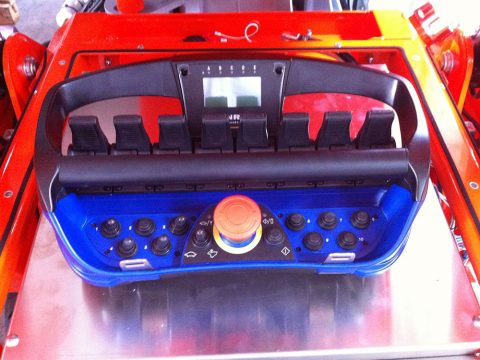

Radio Remote Control + 2 batteries

Scanreco proportional multipurpose radio remote control with additional battery

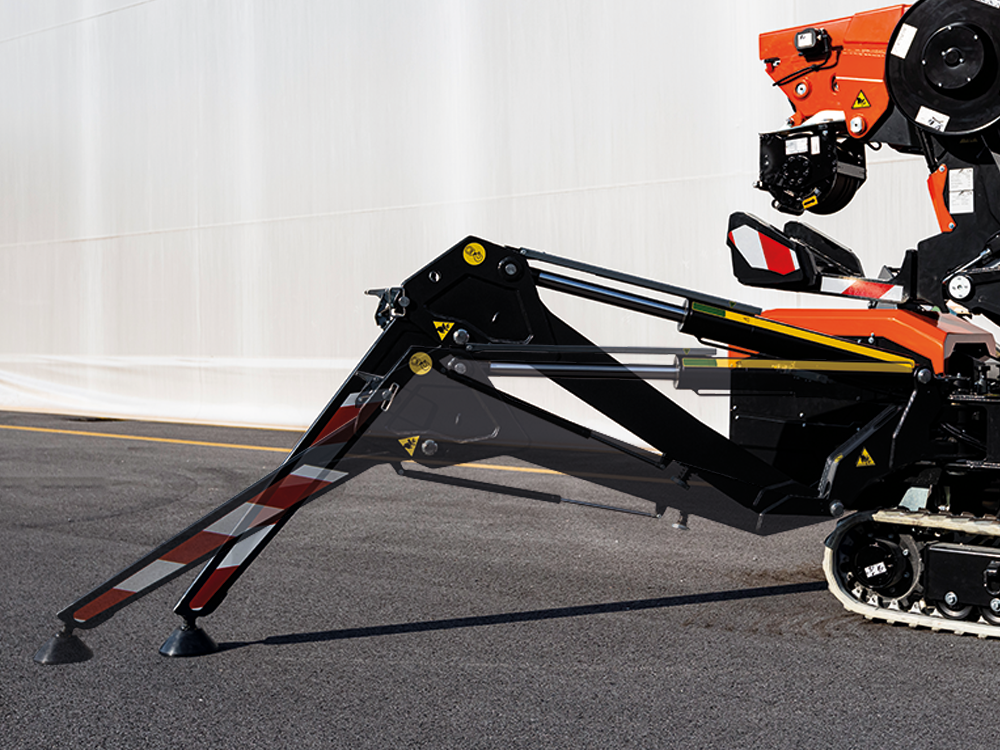

Double Outrigger Leg Position

Double position of the outrigger legs

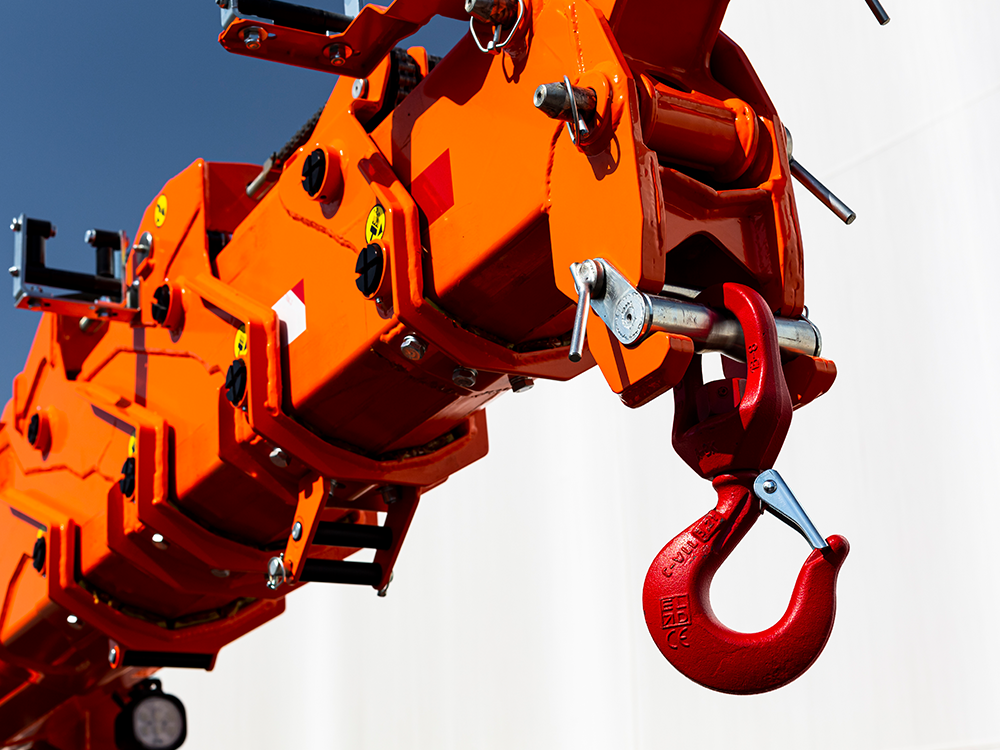

Jib Hook or Winch Mode

Jib hook mode and winch mode are both possible.

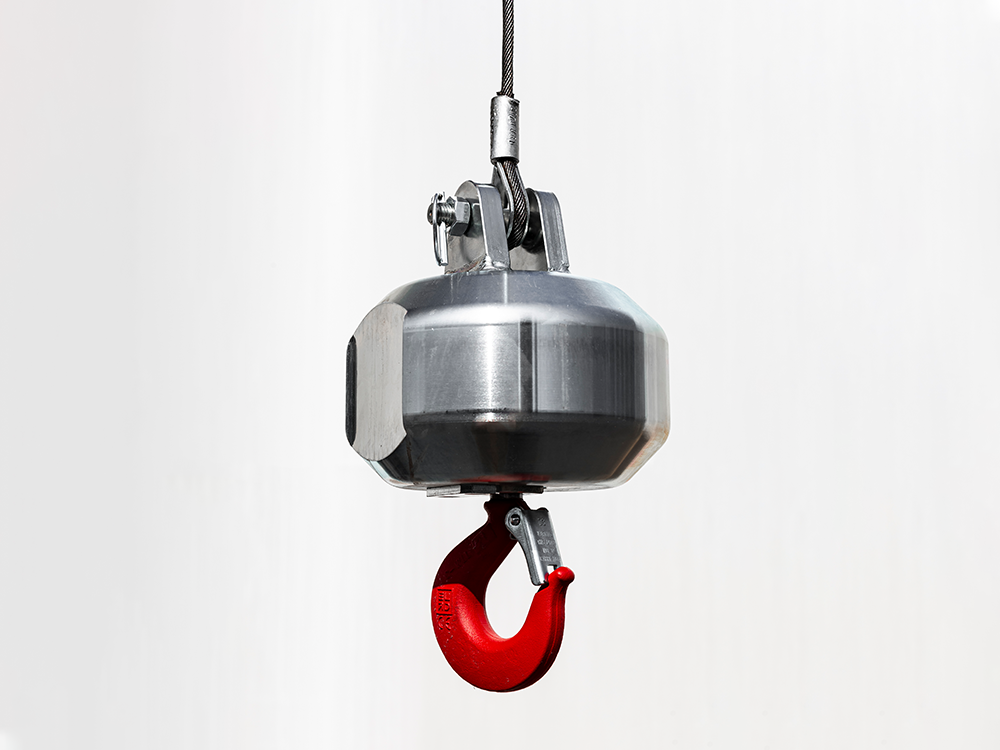

Single Line Hook

Hook for single line pull of the rope.

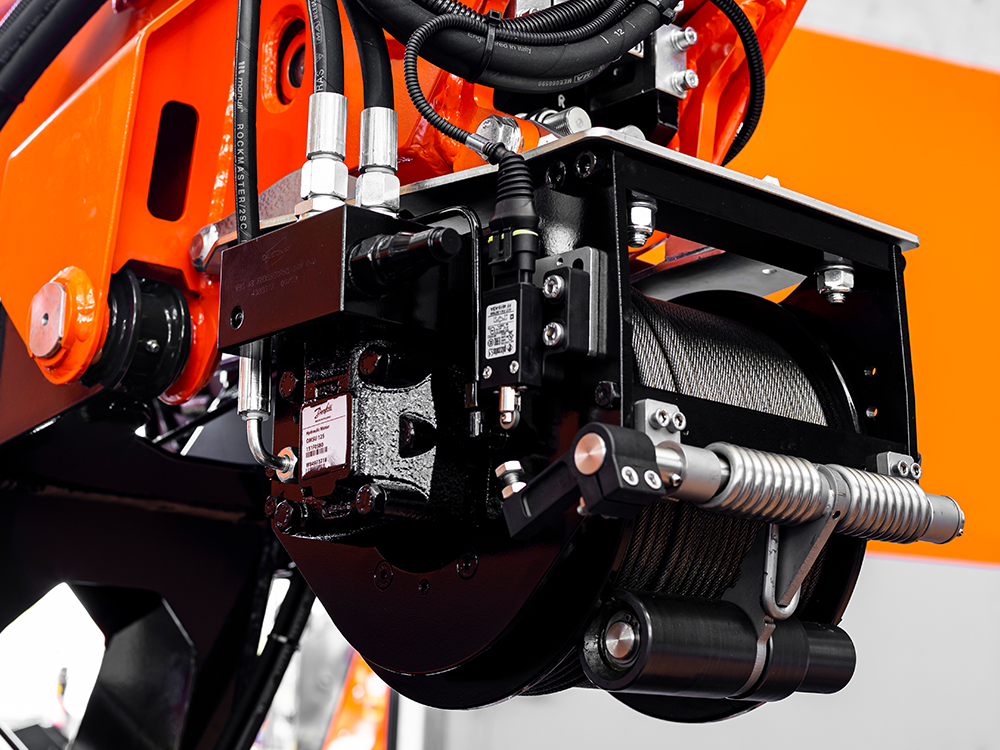

Winch

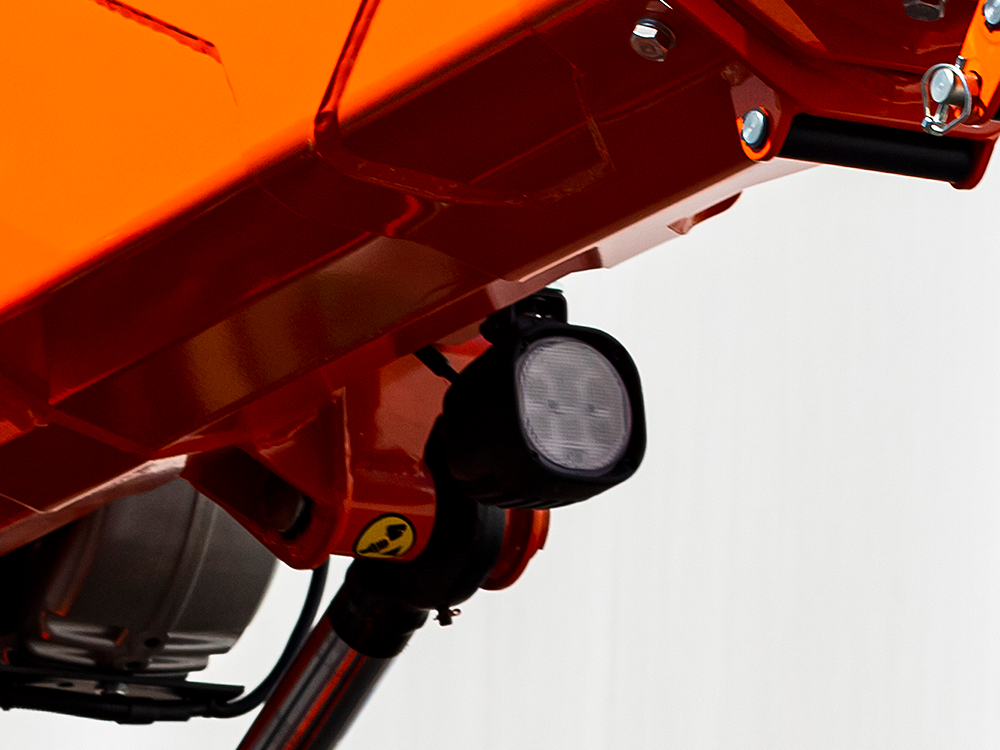

LED Working Light

Light positioned on the boom for operation at night

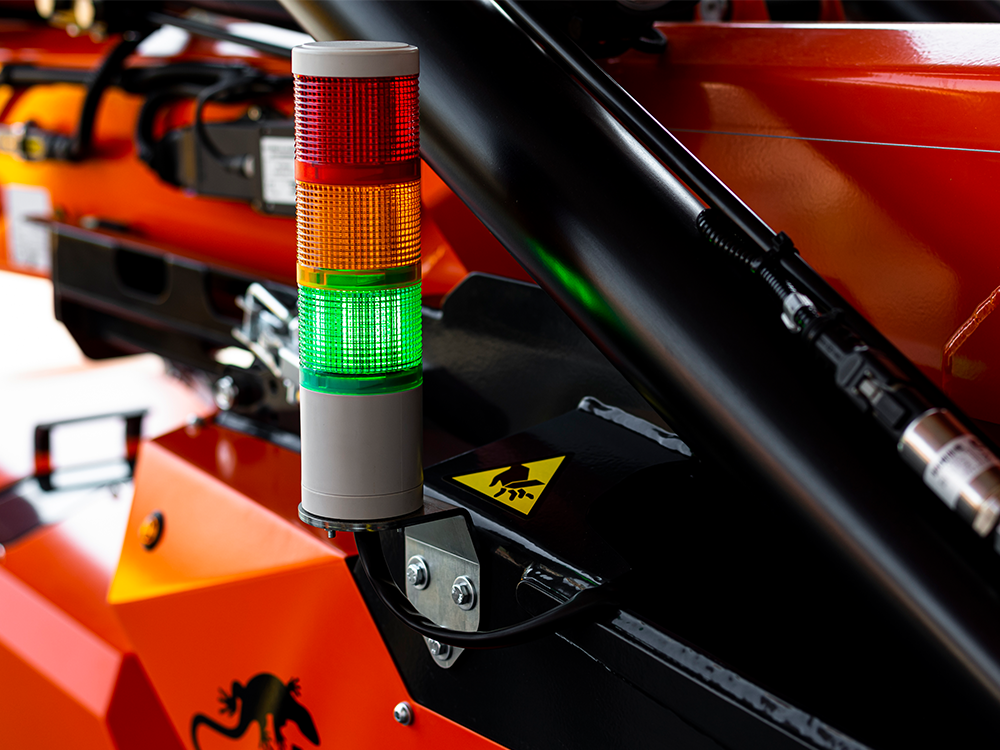

Tower Lamp

Tower lights (green/yellow/red) that signal errors and dangers

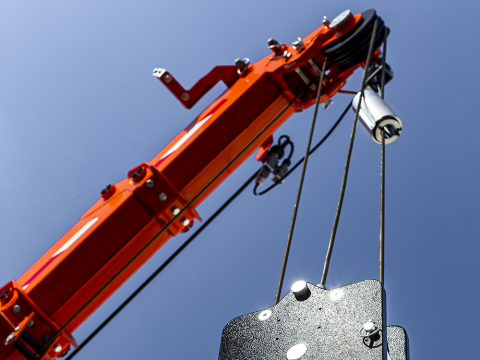

Anti Two Block (A2B)

This switch prevents the hook from blocking or from being pulled against the boom end.

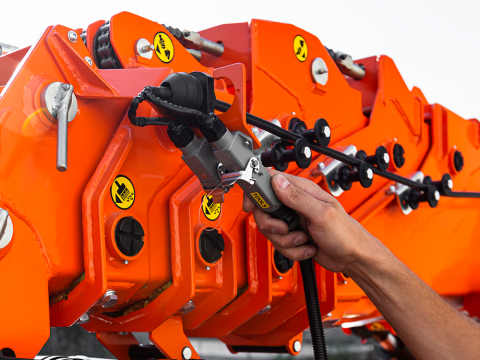

Plug & Play Attachment (PPA)

Once connected, tools are automatically detected by the LMI and loading charts are updated.

Crane-Carrier Interlock (CCI)

This system interlocks the functions of the crane and of the carrier.

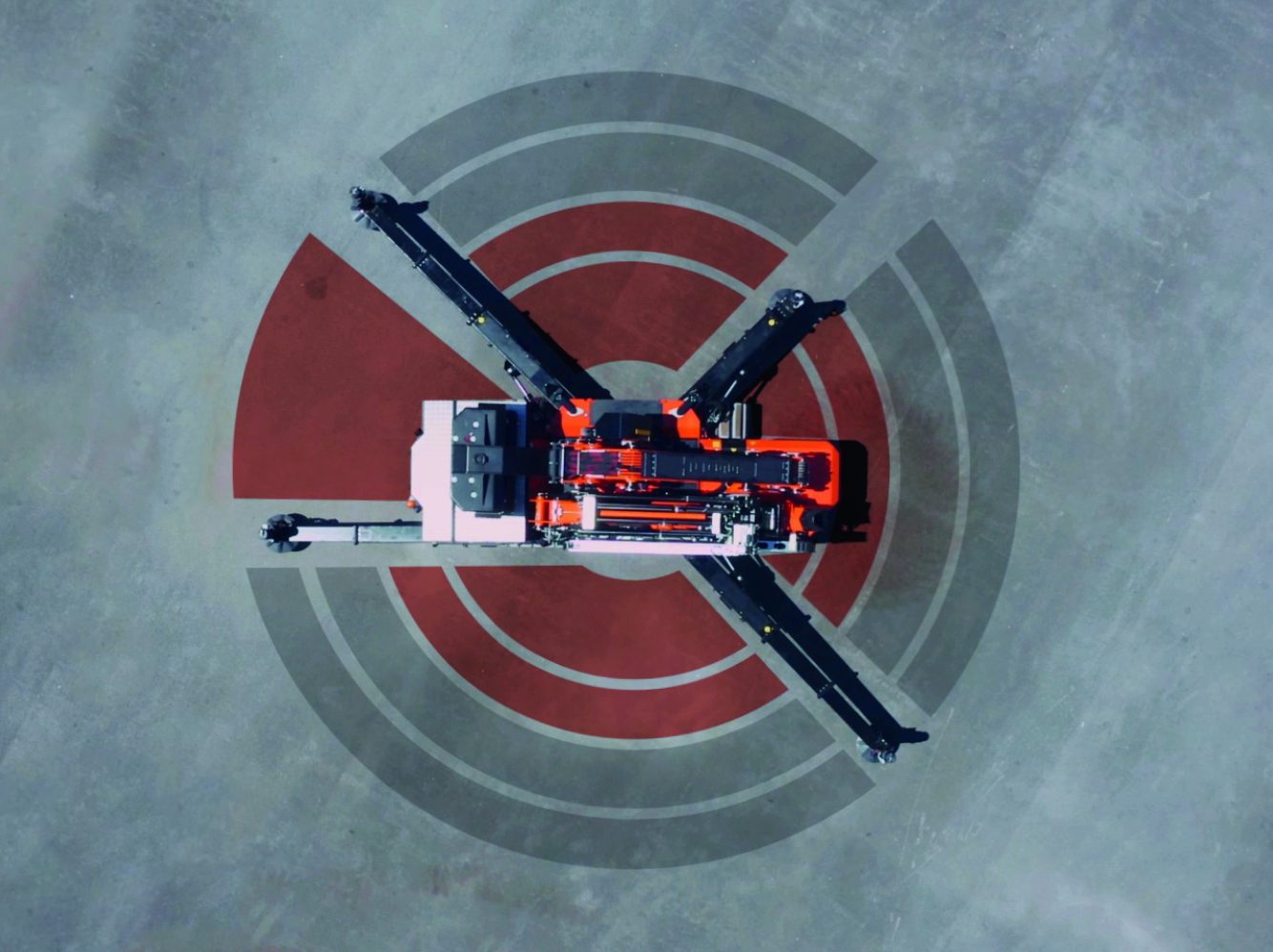

Pick & Carry

Versatile stability configurations

Stepless outriggers rotation 0°/45°
Stepless telescopic outriggers extension
Adjustable outriggers height
Asymmetric configuration

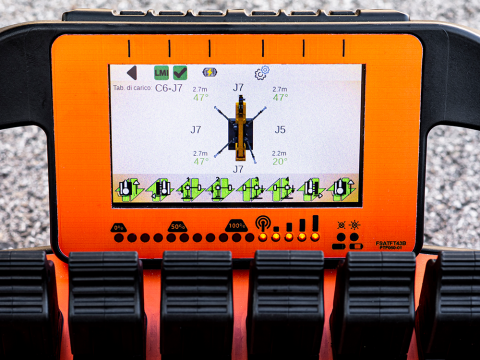

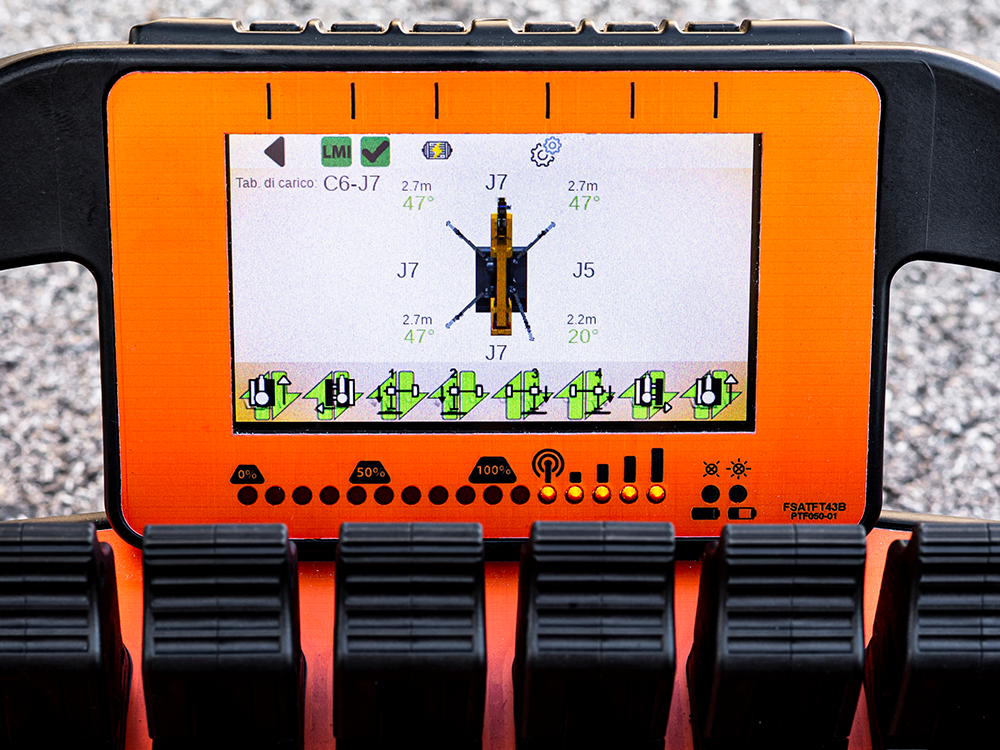

Load Moment Indicator (LMI)

The LMI prevents overload or tipping of the machine.

Two Speed Tracks (2ST)

Options

All mini cranes Jekko can be customized depending on the industry for which they should be used.

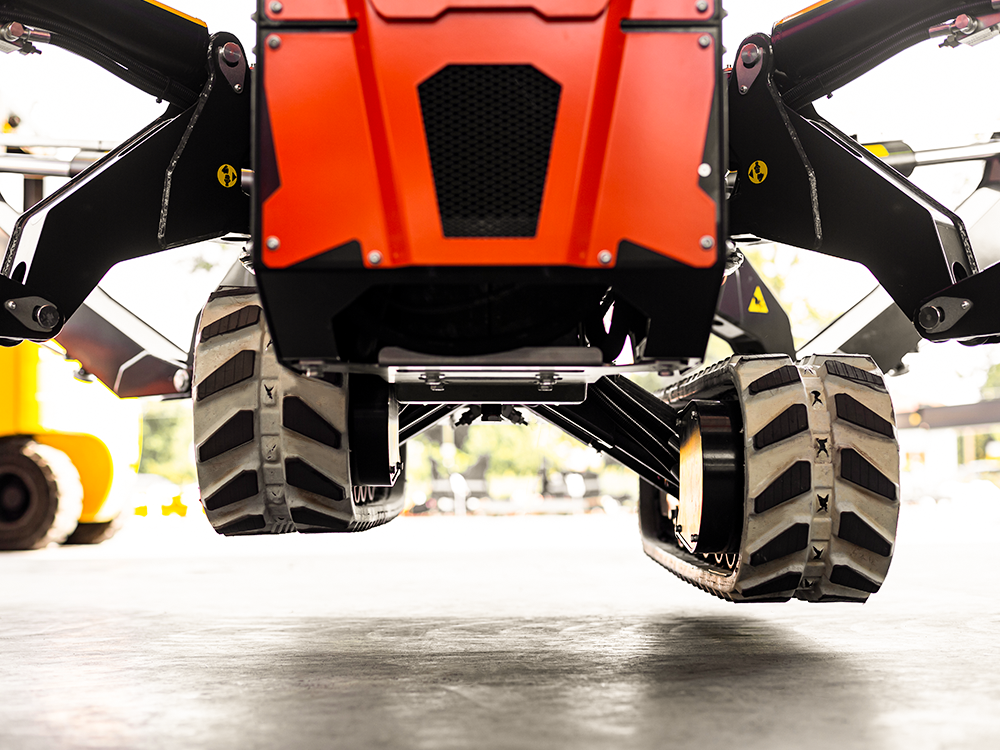

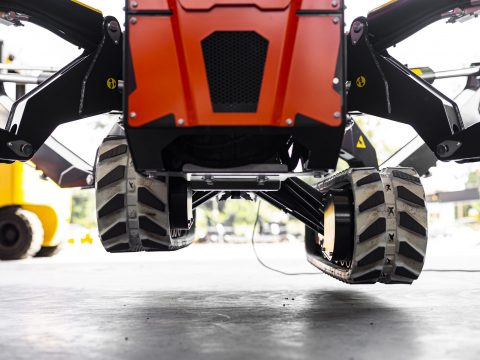

Extendable Tracks (EXT)

Horizontally (SPX1040, SPX1275, SPK60) or 45° (SPB209, SPX312-424, SPX532) extending tracks

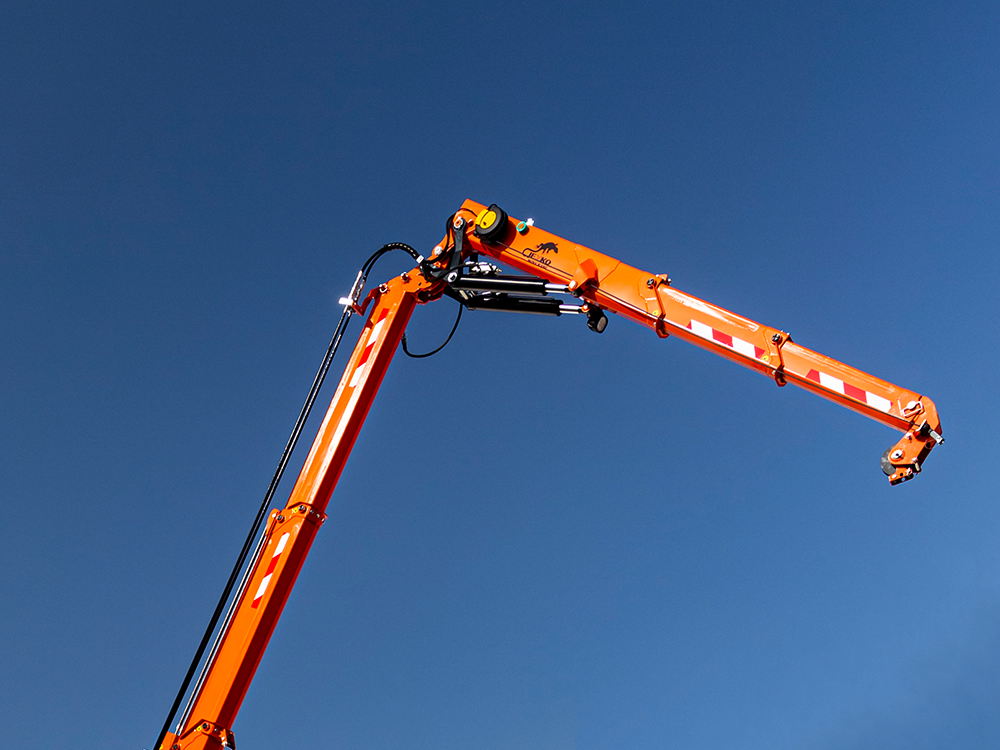

Hydraulic Jib

Built-in and radio remote controlled hydraulic jib.

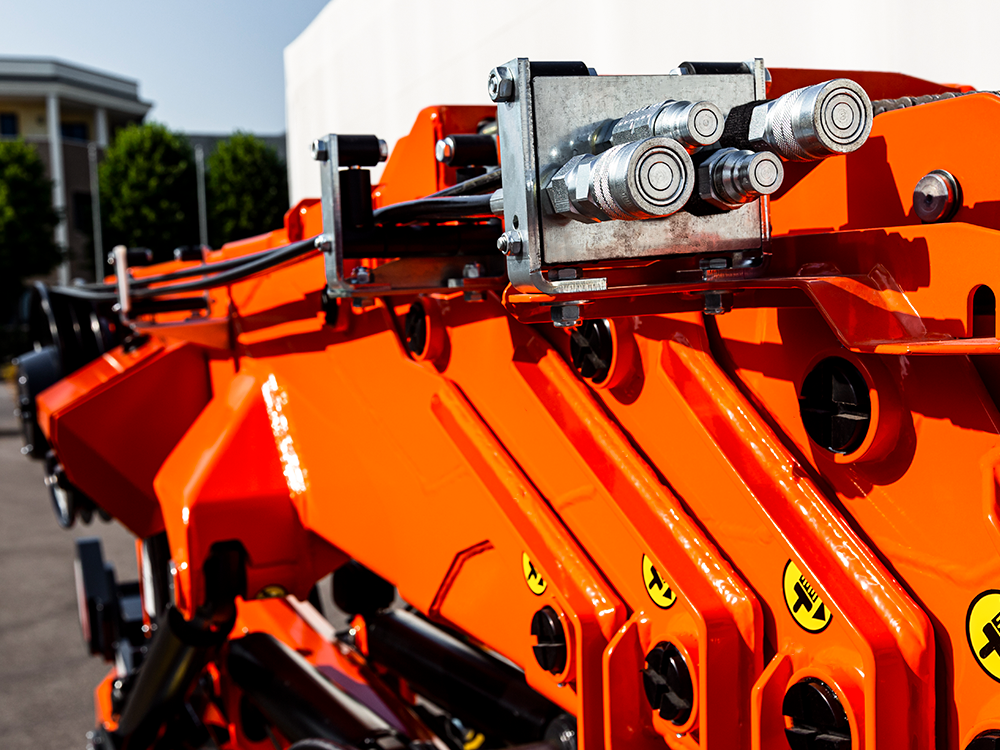

Hydraulic Extra Functions

Hydraulic activation for hydraulic accessories such as jibs and manipulators. It is necessary to deliver oil to the machine boom end.

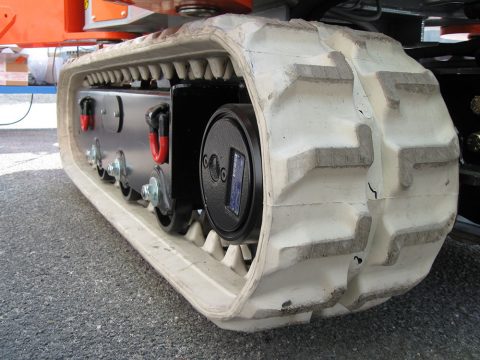

Low Marking White Tracks

Low marking white tracks for indoor operation.

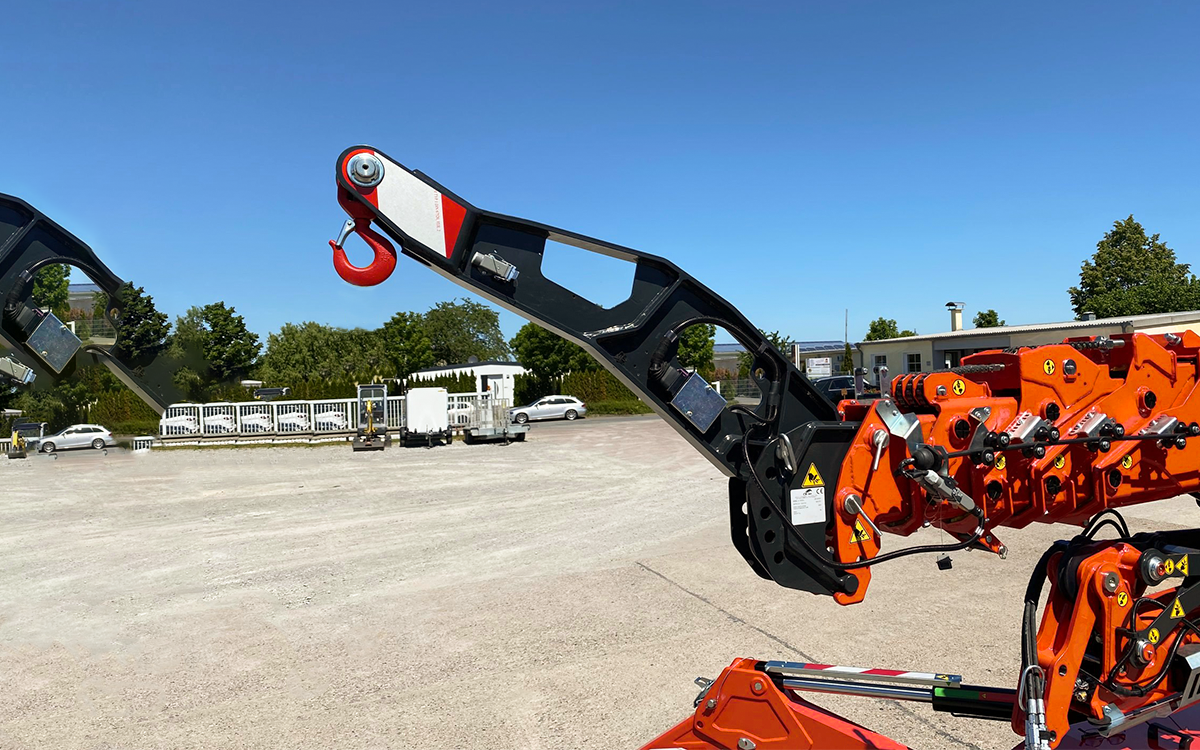

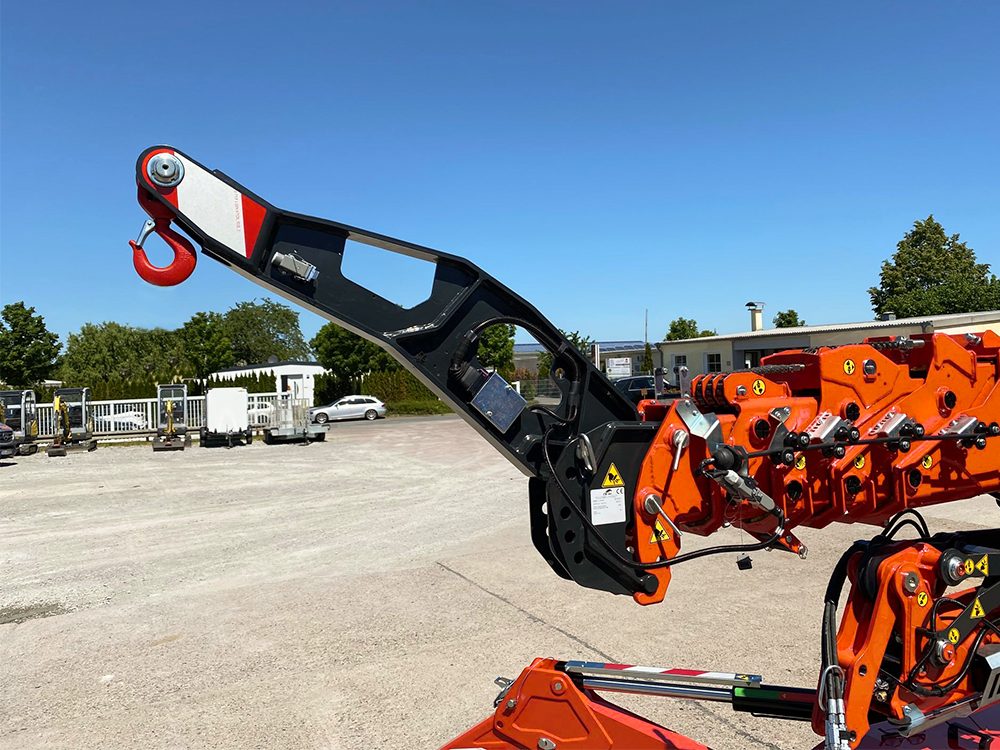

Runner Jib

Hook jib

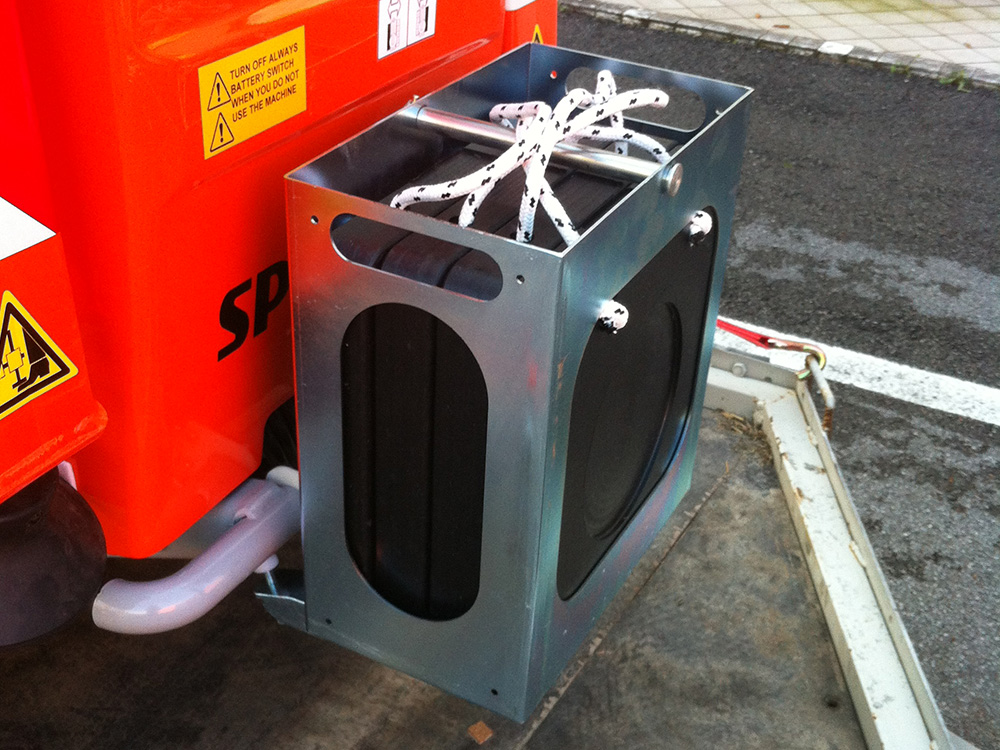

Outriggers Mats and Tray

Outrigger mats for weight distribution and effective stabilization

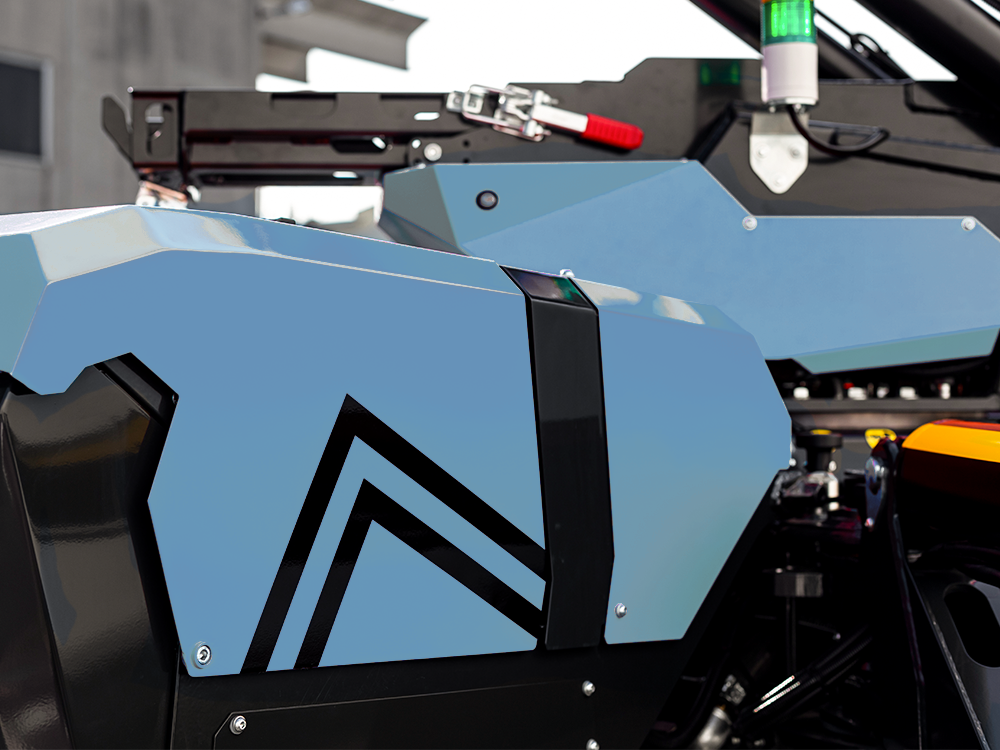

Personalized Colour

Customized paint colour, choice of engine housing/boom or complete crane.

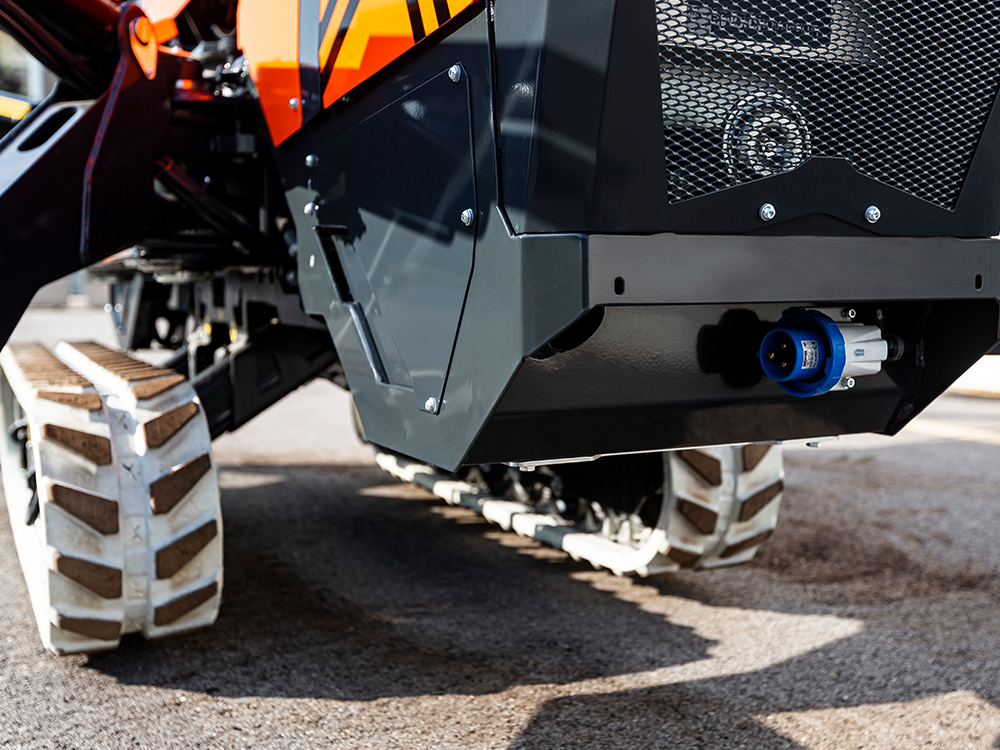

Electric Power Pack (Bi-Energy)

On board motor: 100% electric operation
Emission-free and noise-free indoor operation
Threephase motors for every Country

Endless crane configurations

Different working mode: hooke, winch, hydraulic jib, runner jib and Plug&Play tools

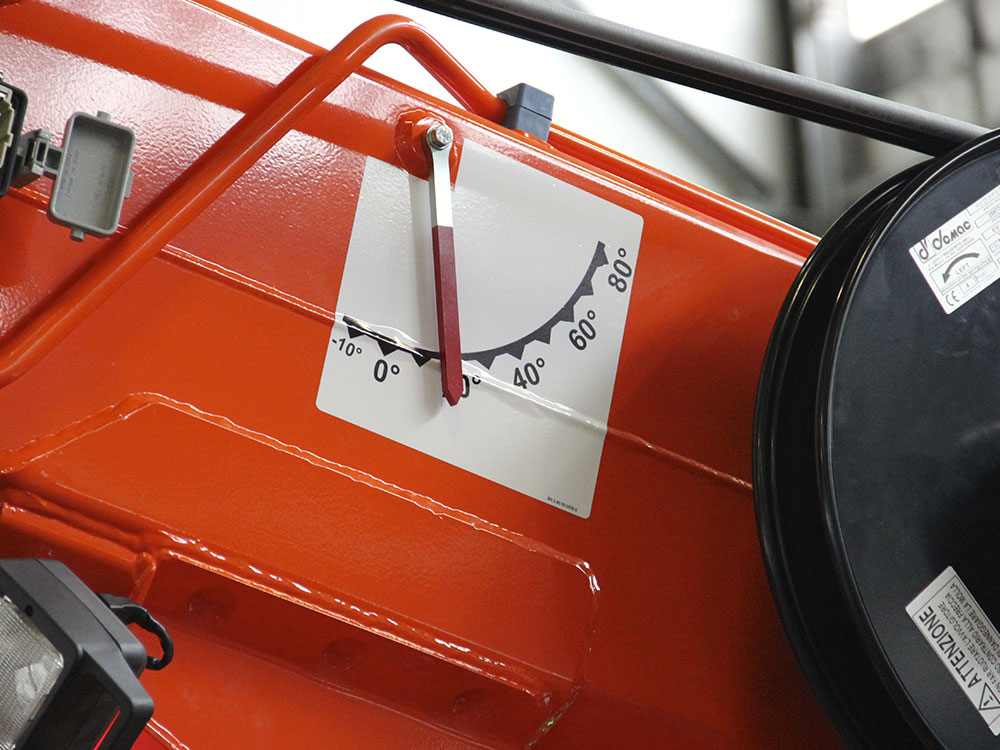

Visual Angle Indicator (VAI)

Working angle indicator, compulsory for North America

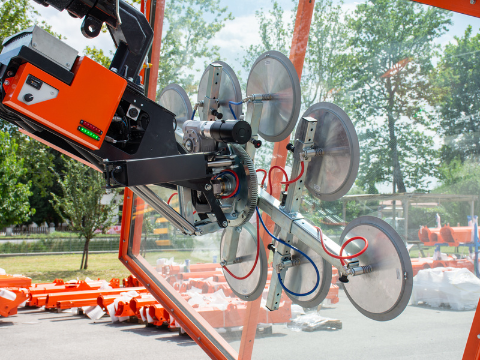

Battery Glass Manipulator

With quick-coupling.

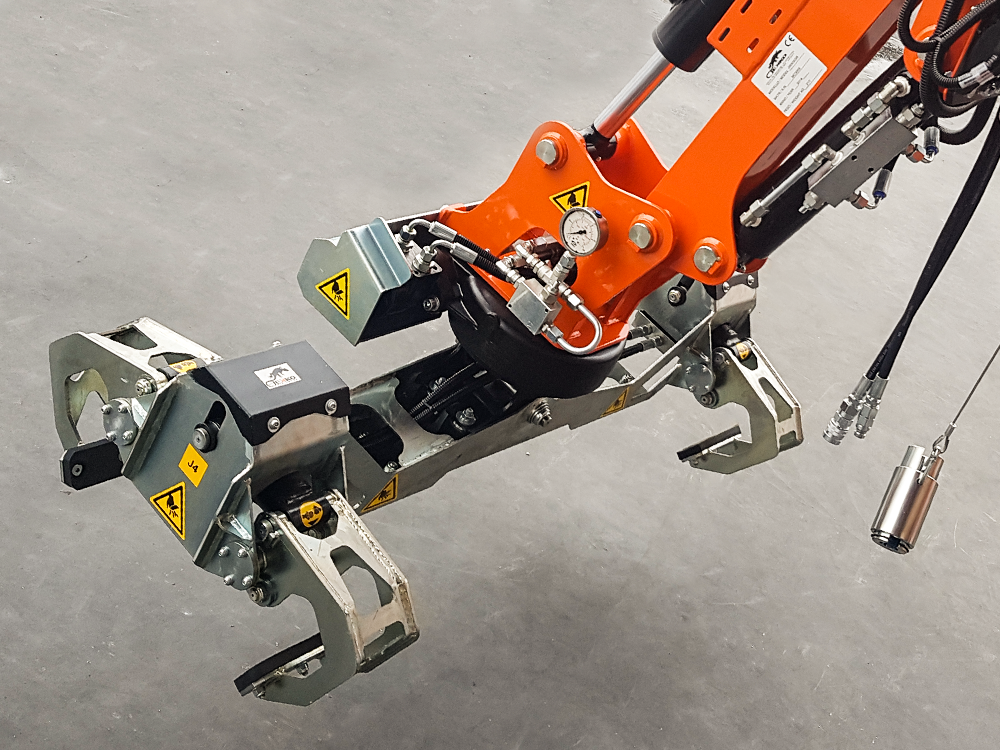

Grabber Beam Manipulator

With quick-coupling.

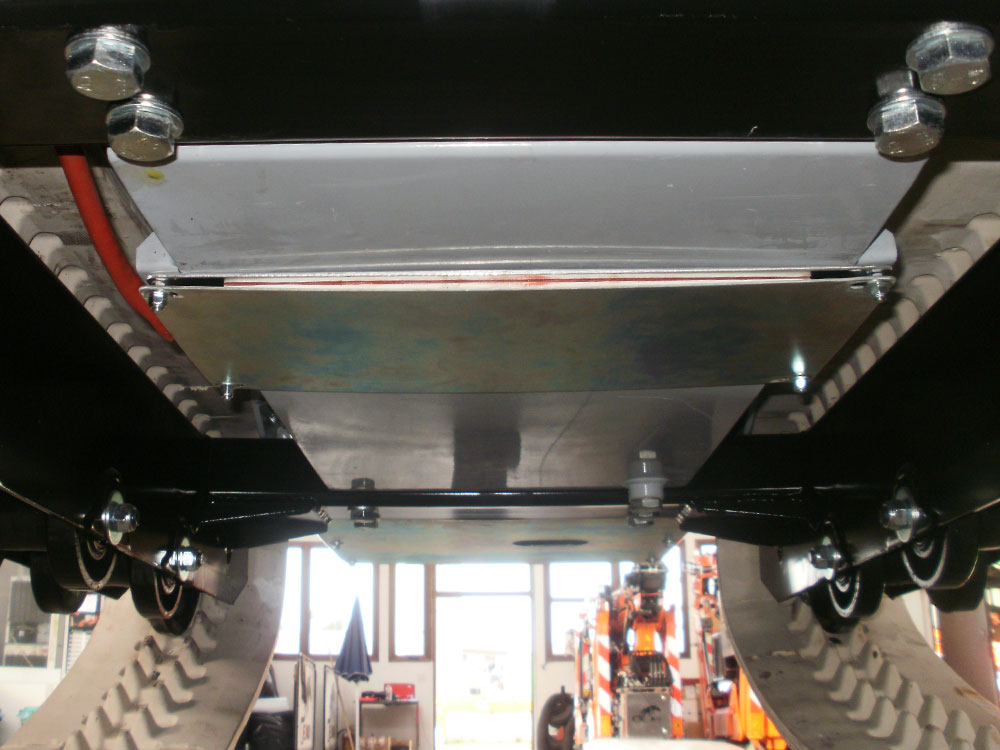

Winter Kit

The Winter Kit warms up some components for operation at low temperatures

Lithium Battery

Indoor operation, emission freeMaintenance freeRuntime over 1 workdayOn board 110/230V fast charger: 0-80% in 3 hAdjustable charging currentWork while charging.
