Minipickers

MPK10.2

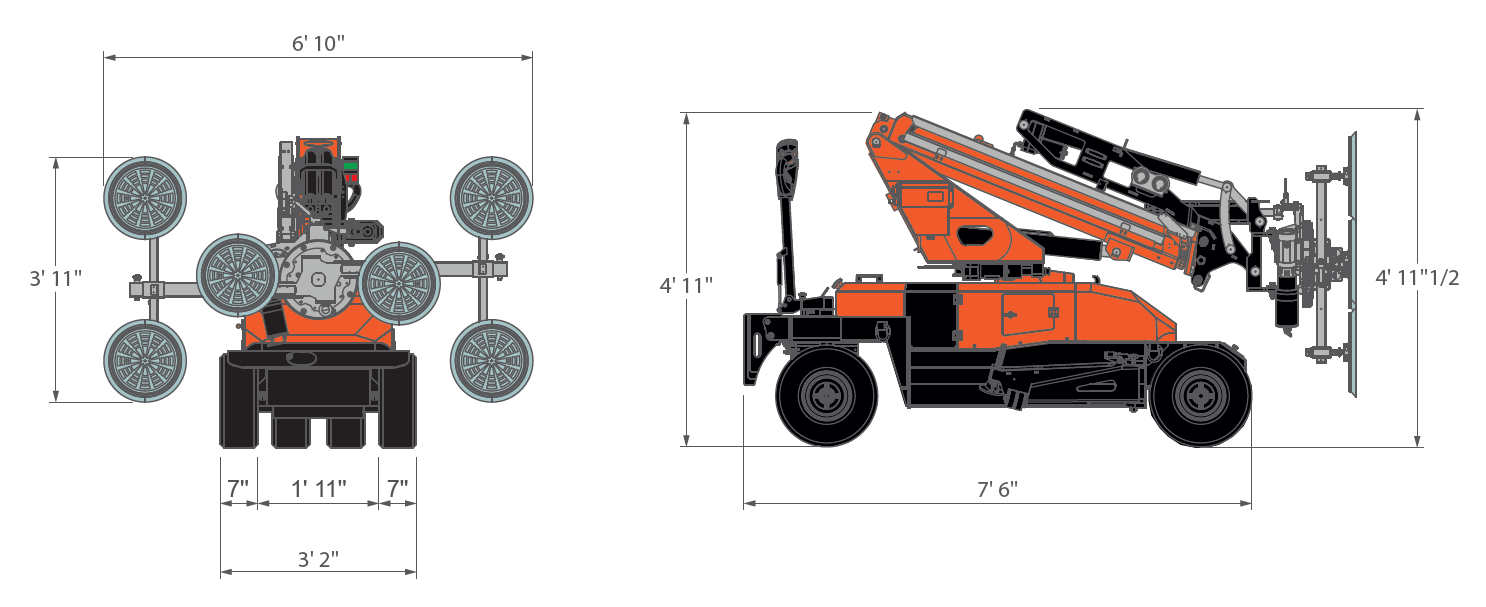

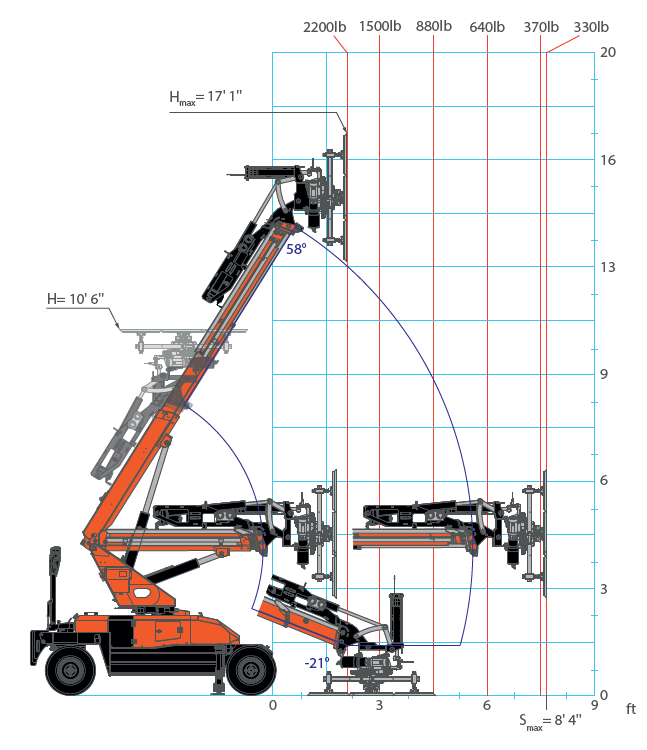

2,180 lb7' 6 ''' x 3' 2'' x 4' 11''17' 1''8' 4''

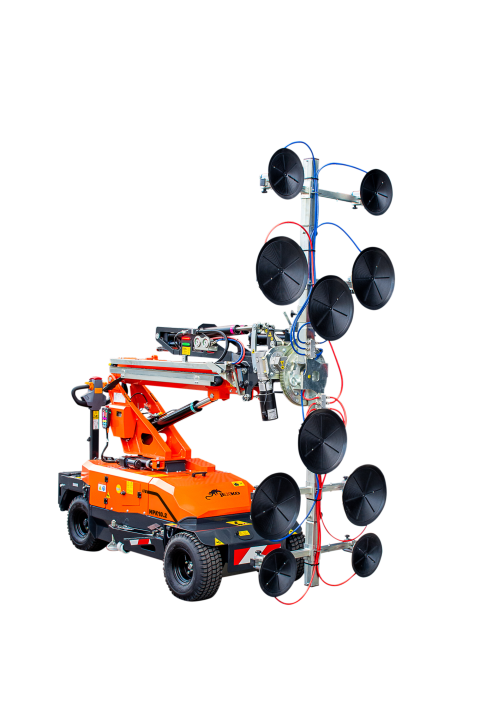

Discover MPK10.2, the 2,180 lbs full electric 2in1 minipicker: an extremely compact glass robot and pick & carry crane all in one machine. The new improved vacuum manipulator with modular and customisable layout allows to easily position glass, marble, monopanels or smooth panels of any kind.

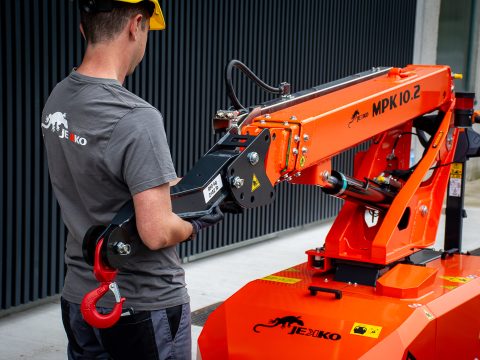

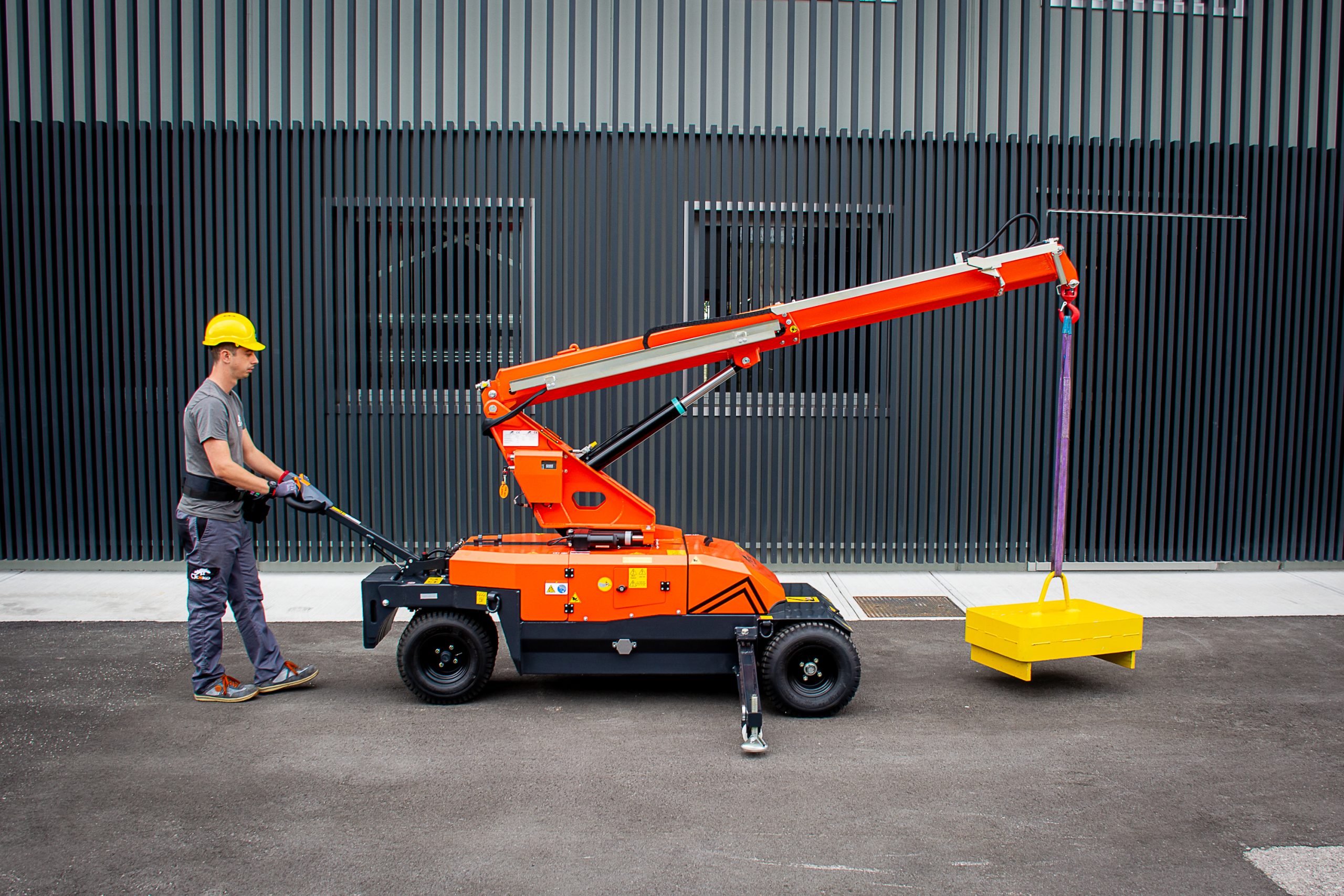

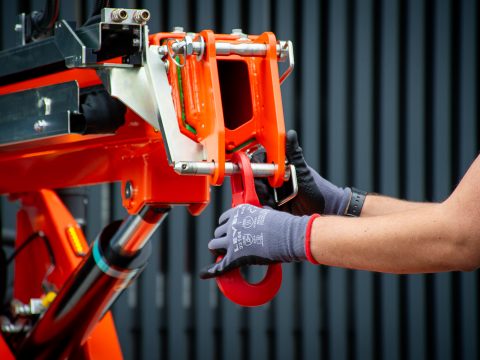

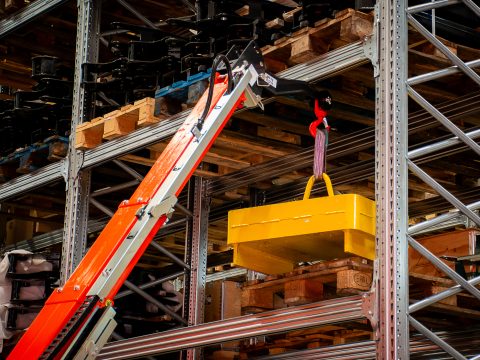

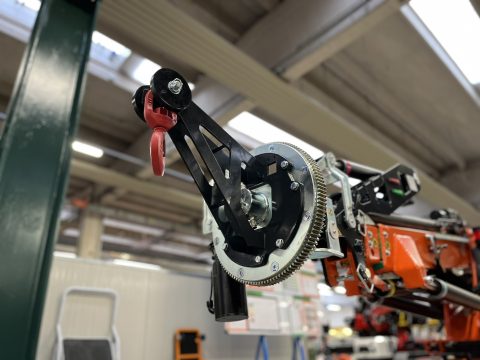

MPK10.2 is not only a glass installation robot! With hook and adjustable searcher hook, MPK10.2 is a 2,180 lbs pick & carry electric crane with a long-duration battery ideal for emission-free and noise-free indoor liftings. With its compact size it fits neatly through narrow access points.

Features:

1 Boom Mobility Boom Mobility

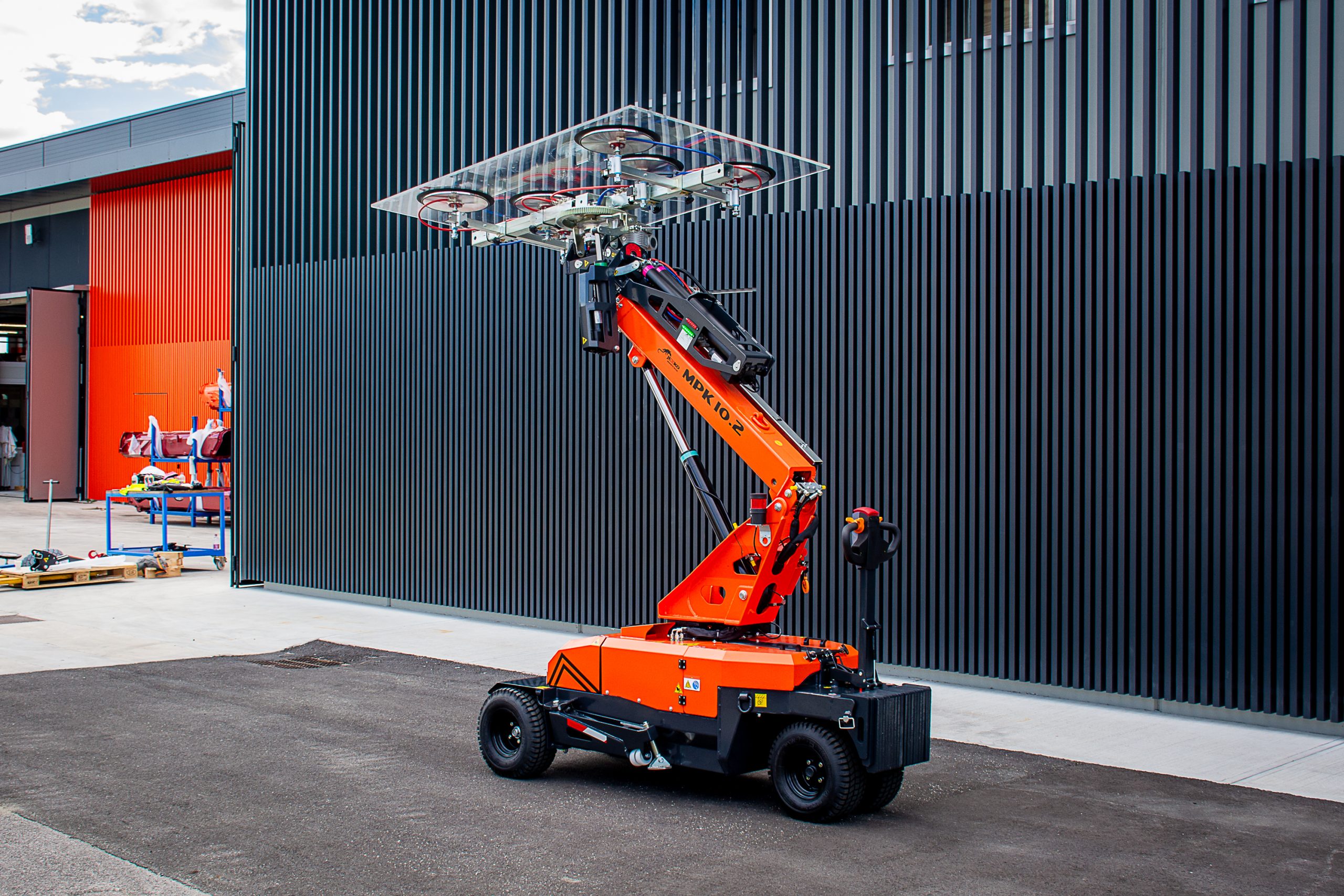

To easily reach any corner and perform a millimetric lifting, the turret features a side rotation, a wide raising angle range and a double extension.

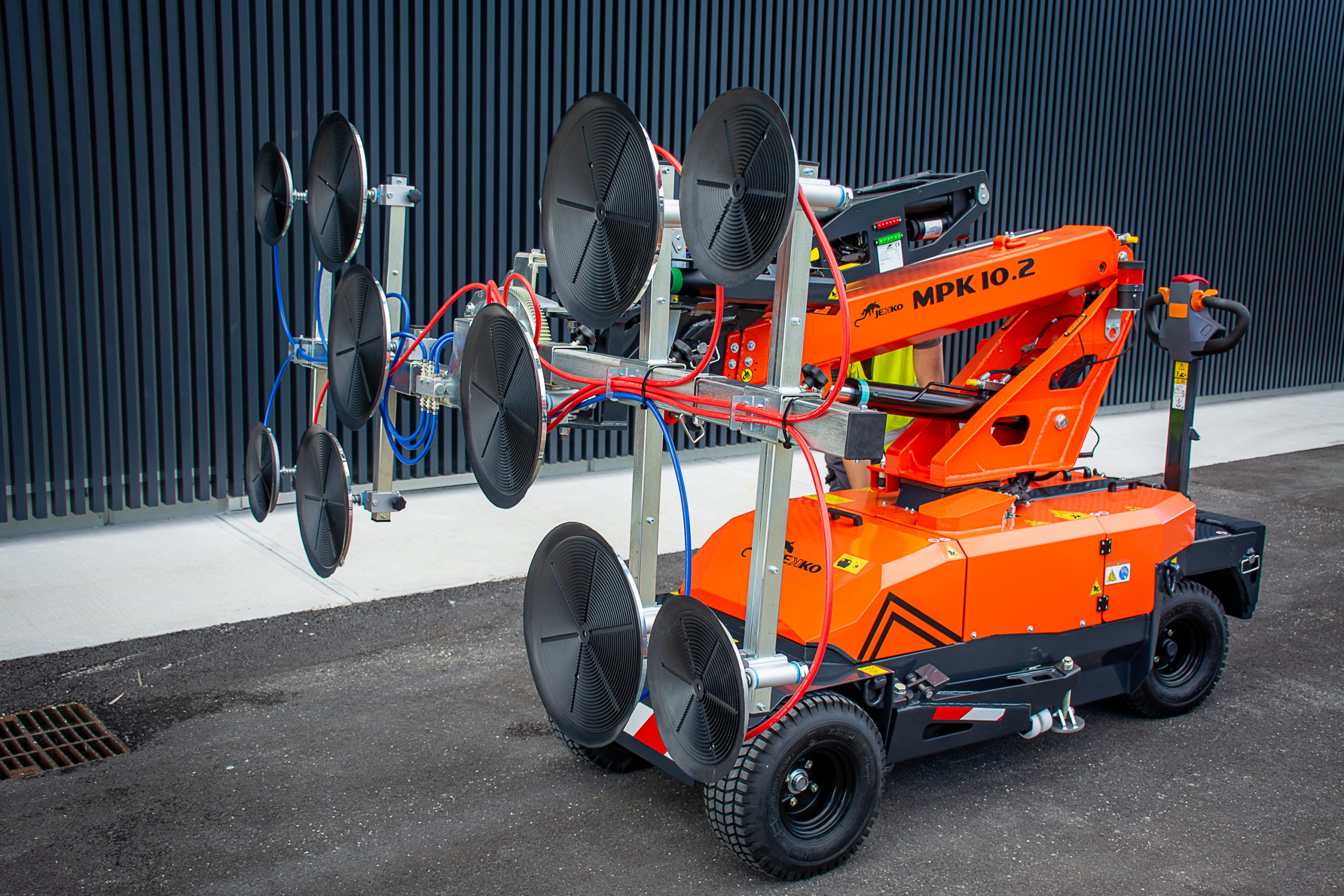

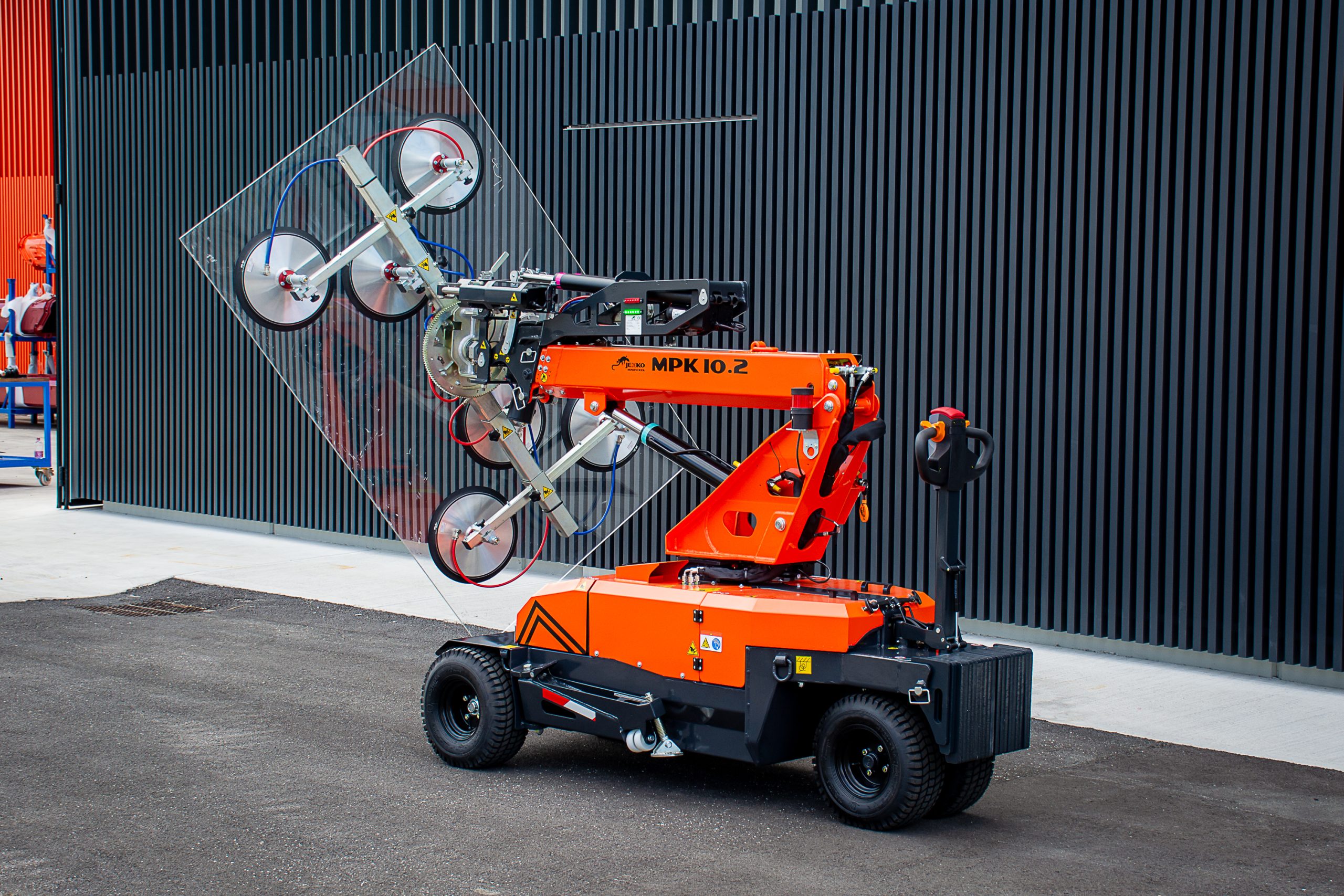

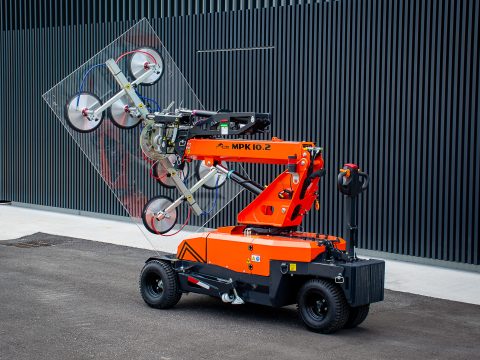

2 Vacuum Manipulator Vacuum Manipulator

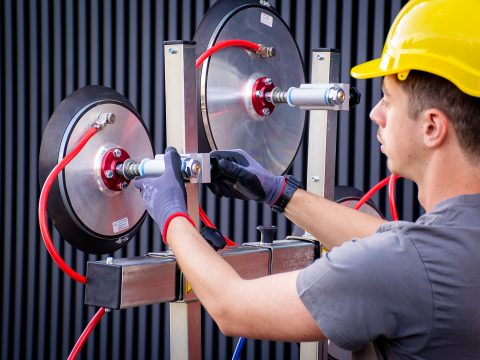

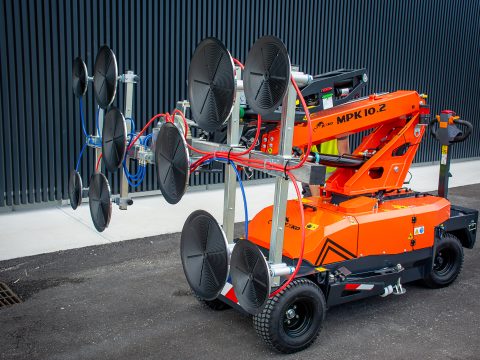

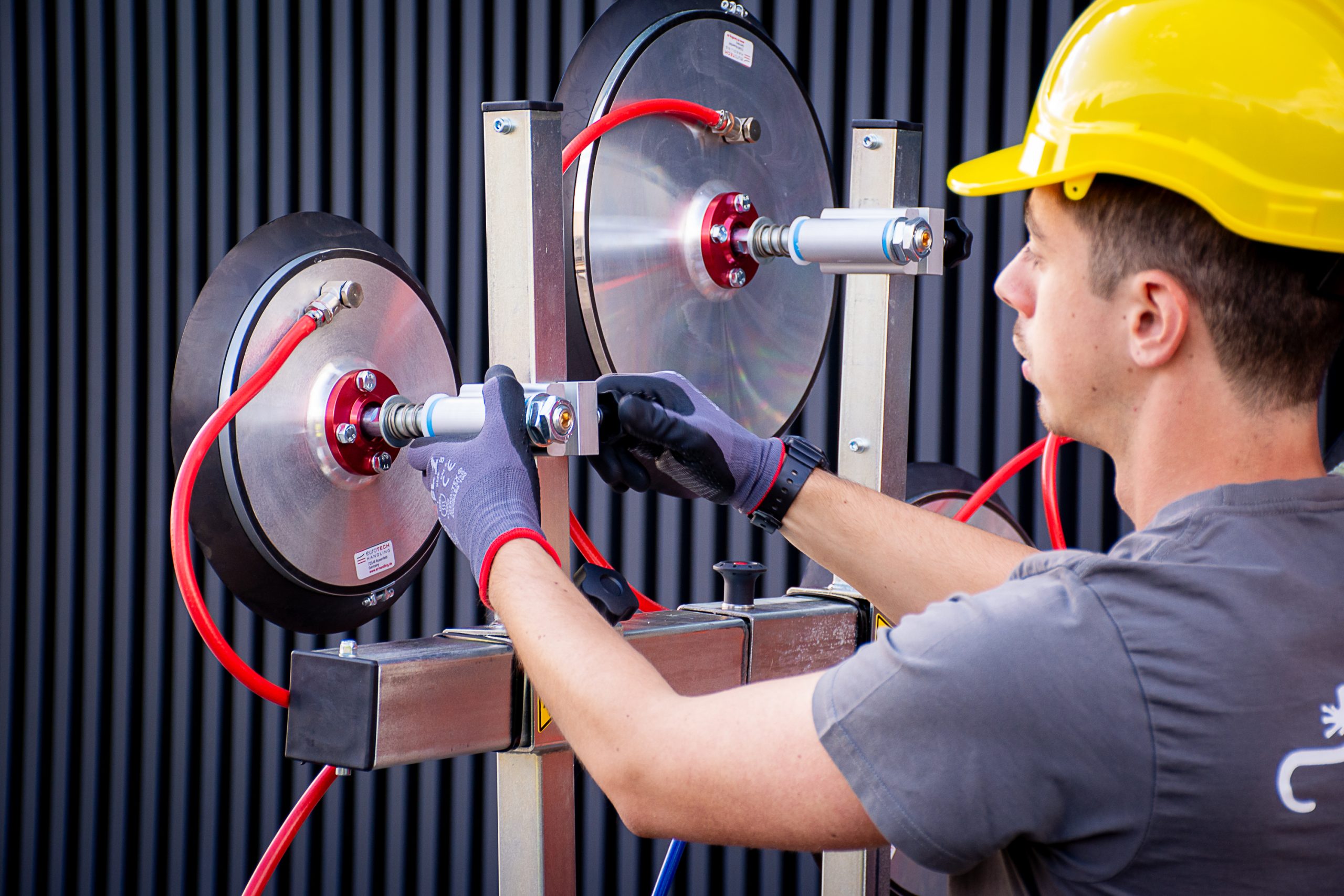

The new vacuum manipulator with modular and customizable layout allows you to perform any glazing installation. From 4 to 6 pads can be mounted on different positions to fit glass panels of any size and shape. 360° rotation, and wide tilt and swing movements. Electrically operated via wired controlVacuum pump onboardTwo independent vacuum circuitsØ400 or Ø290 pads for glass, marble and slabsSpecial pads for monopanel“Blow-off” function for easy releaseBall joint on pads for improved adaptability

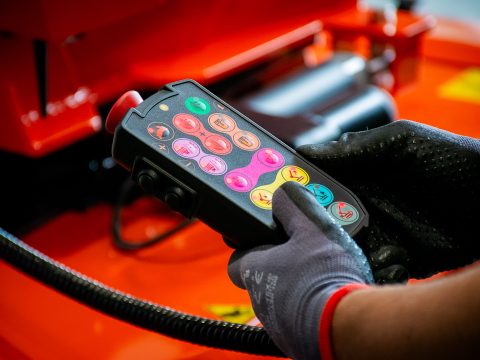

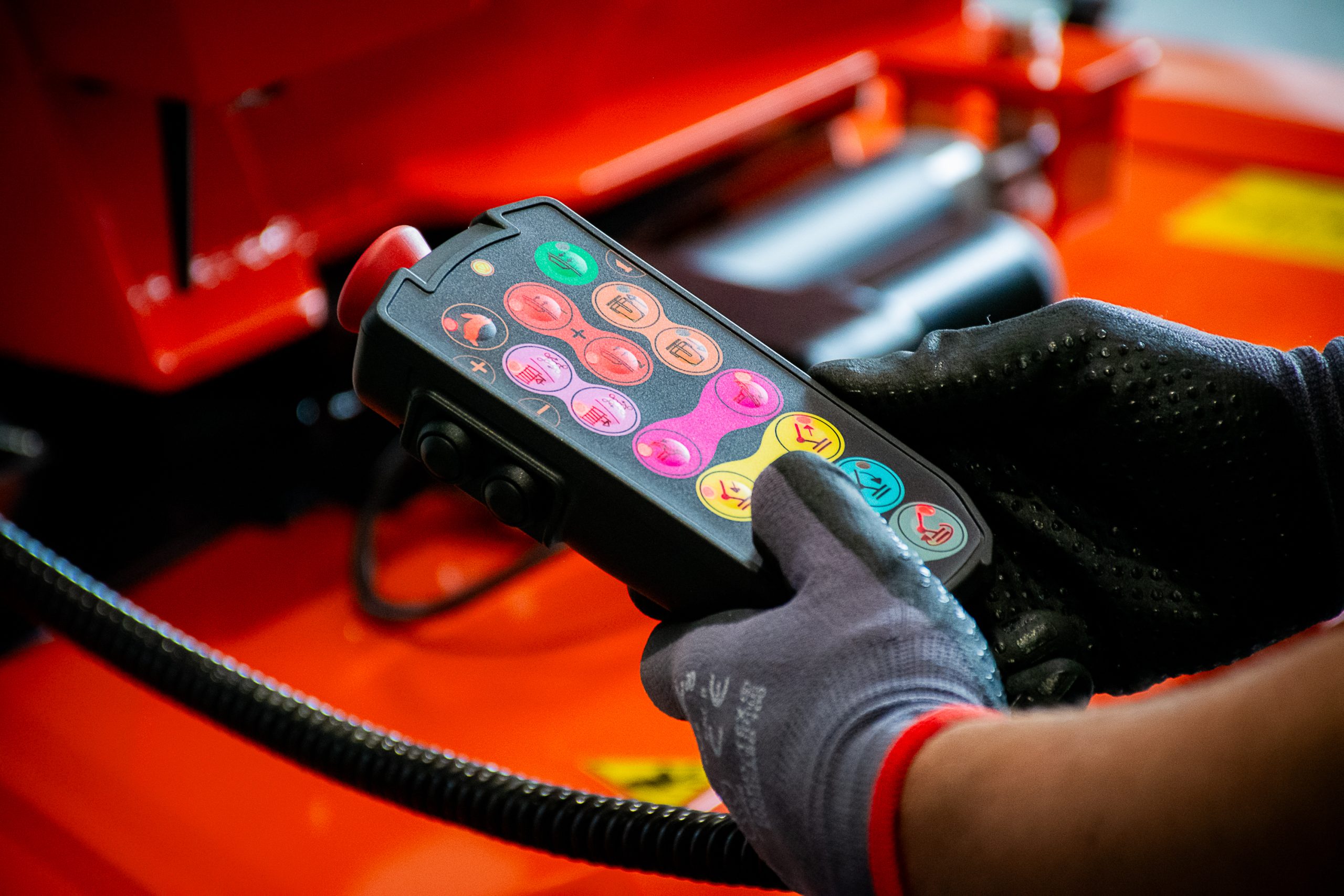

3 Radio Remote Control Radio Remote Control

A simple and intuitive control to manage machine driving, crane and manipulator all in one. The radio remote control includes a self-diagnostics system and an emergency button to promptly stop the crane if needed. An additional wired control is also available.

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

Fully Electric

Battery powered, lead-acid typeMinimal maintenance costsEmission-free indoor operationOn board 110V or 230V fast battery chargerRuntime over 1 workday.

Modular Ballast

Easily removable ballast modulesOperates with reduced ballastAutomatic lifting capacity adjustment

J-Link by TrackUnit

Remote fleet monitoring and diagnostics; Built-in or retrofit on existing units.

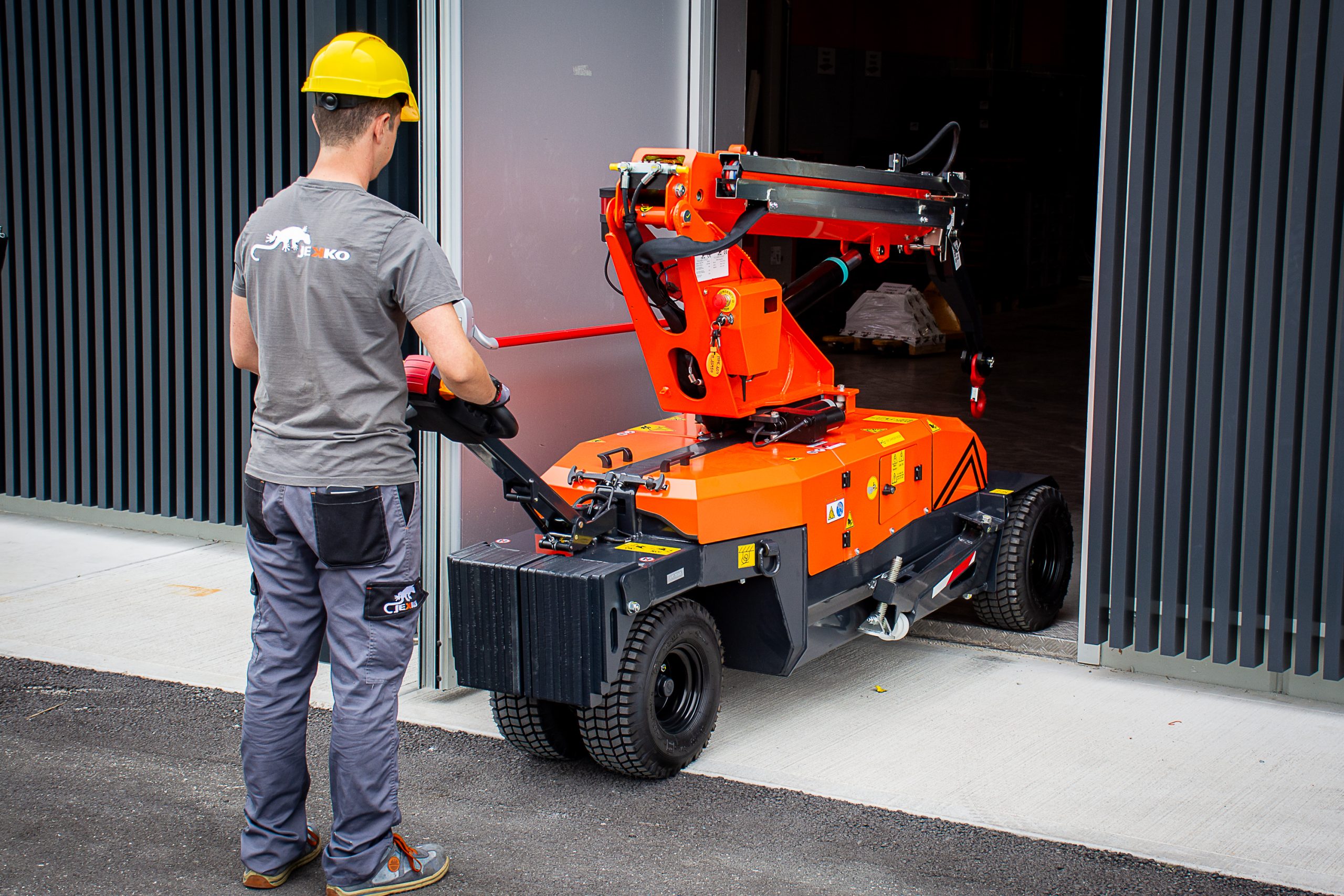

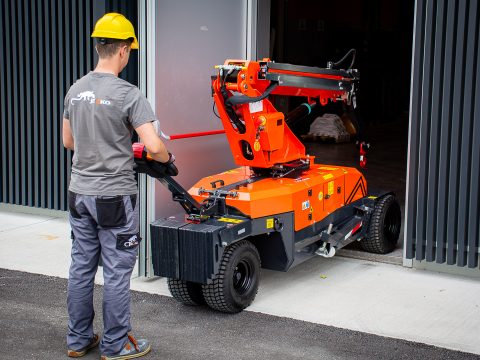

Easy to drive everywhere

  • Front-wheel drive with differential
  • Wide steering angle

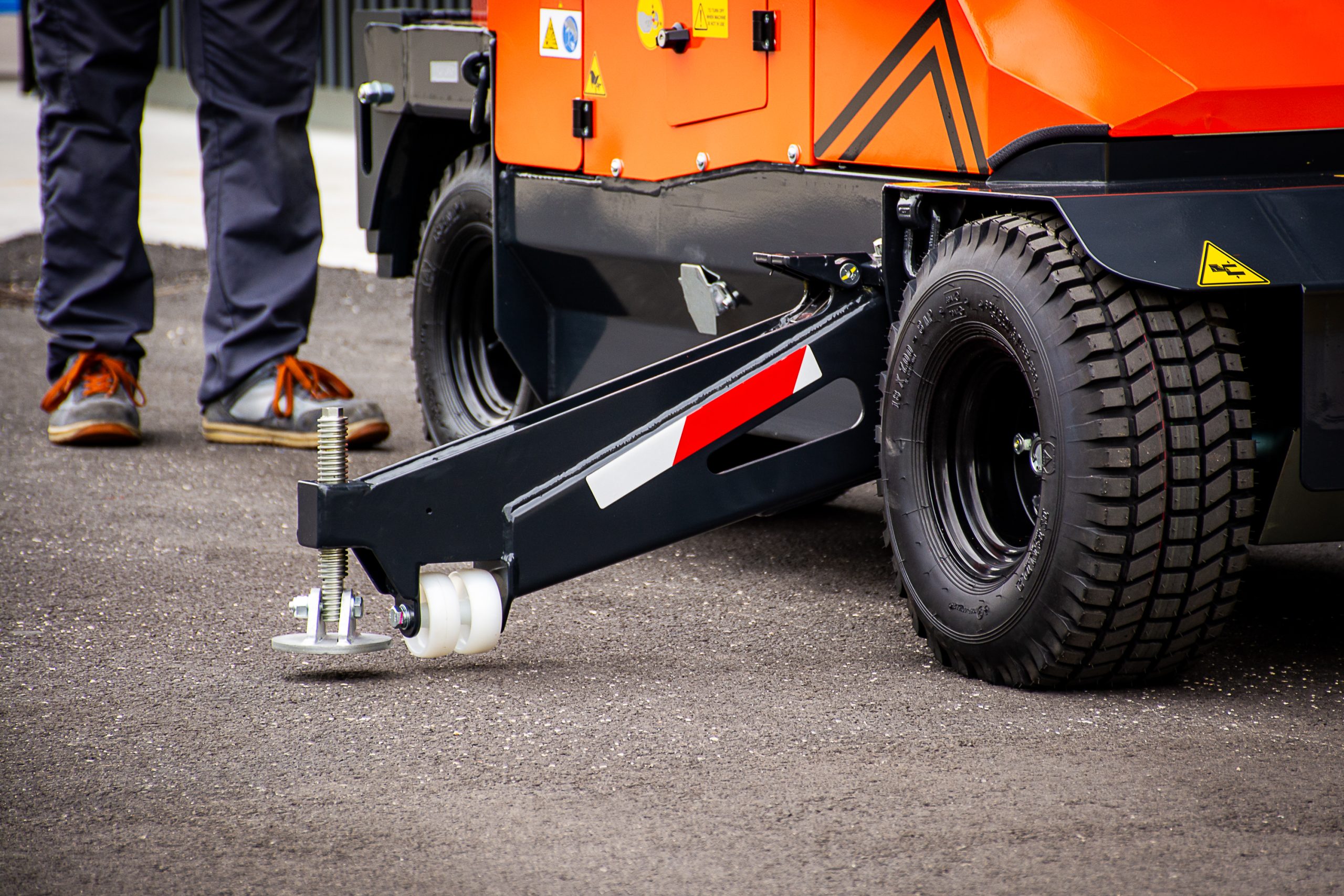

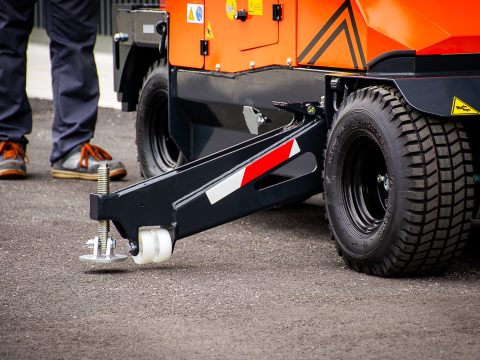

  • Side stabilisers
  • Twin front wheels available *

Indoor wheels

Non-marking white tyres for indoor.

Outdoor wheels

Off-road tyres (foamed puncture-proof).

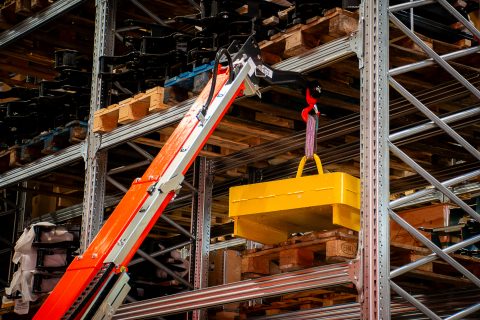

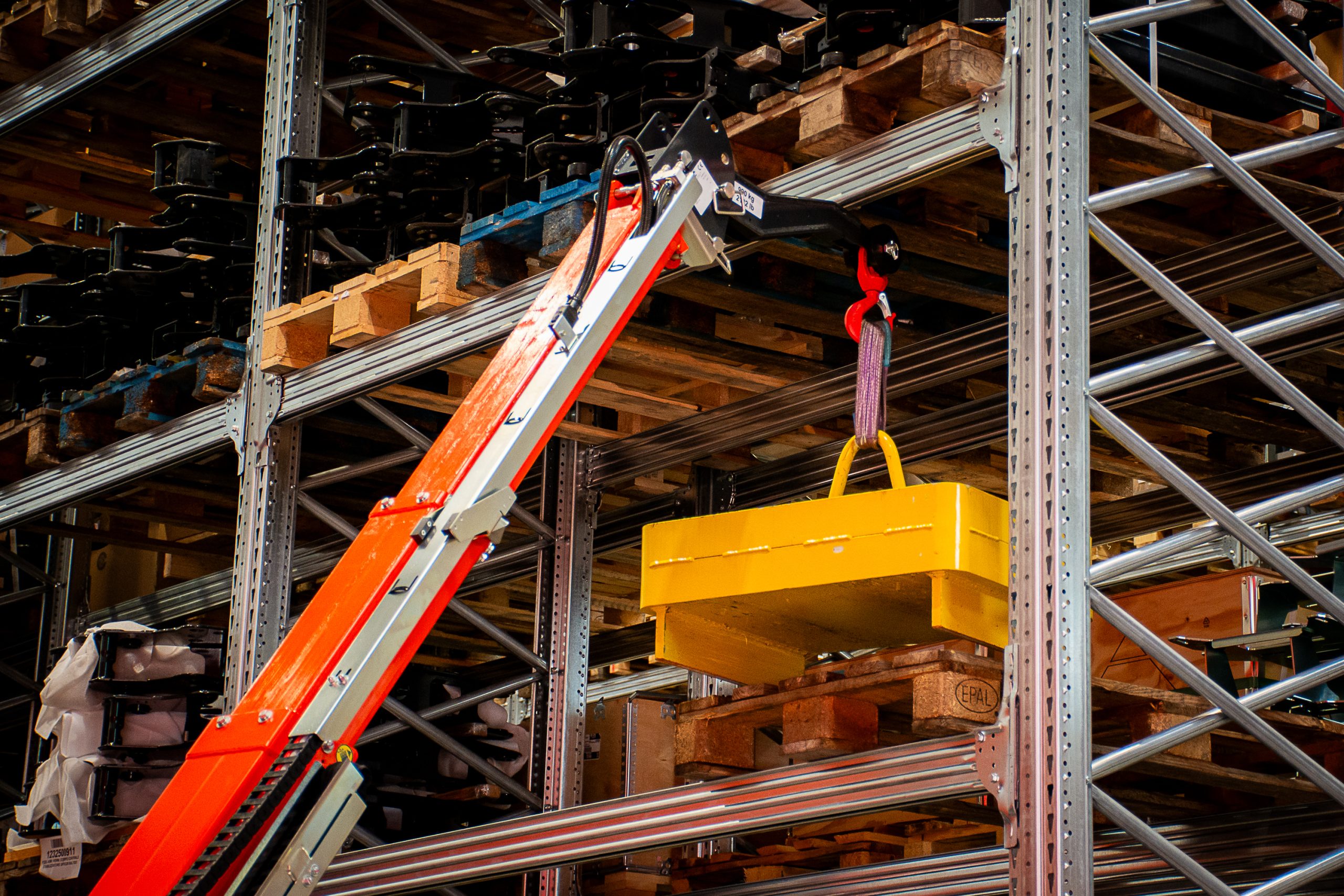

Double boom extension
