Anti Two Block (A2B)
This switch prevents the hook from blocking or from being pulled against the boom end.
Minipickers

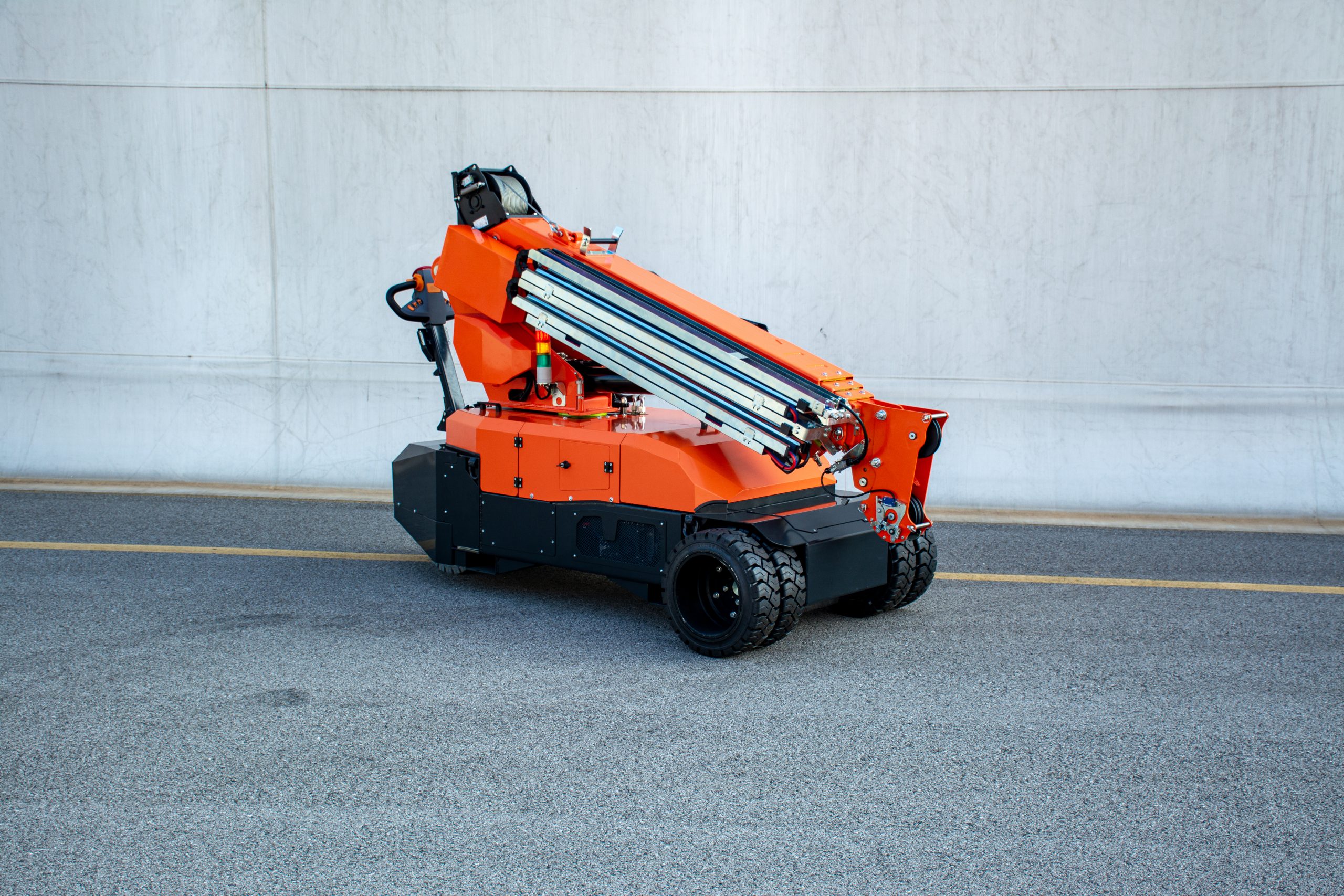

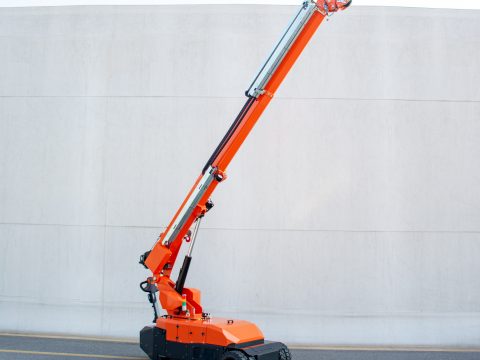

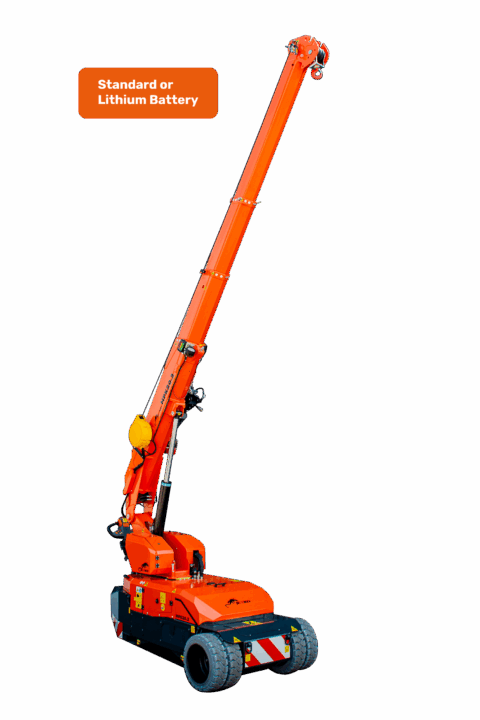

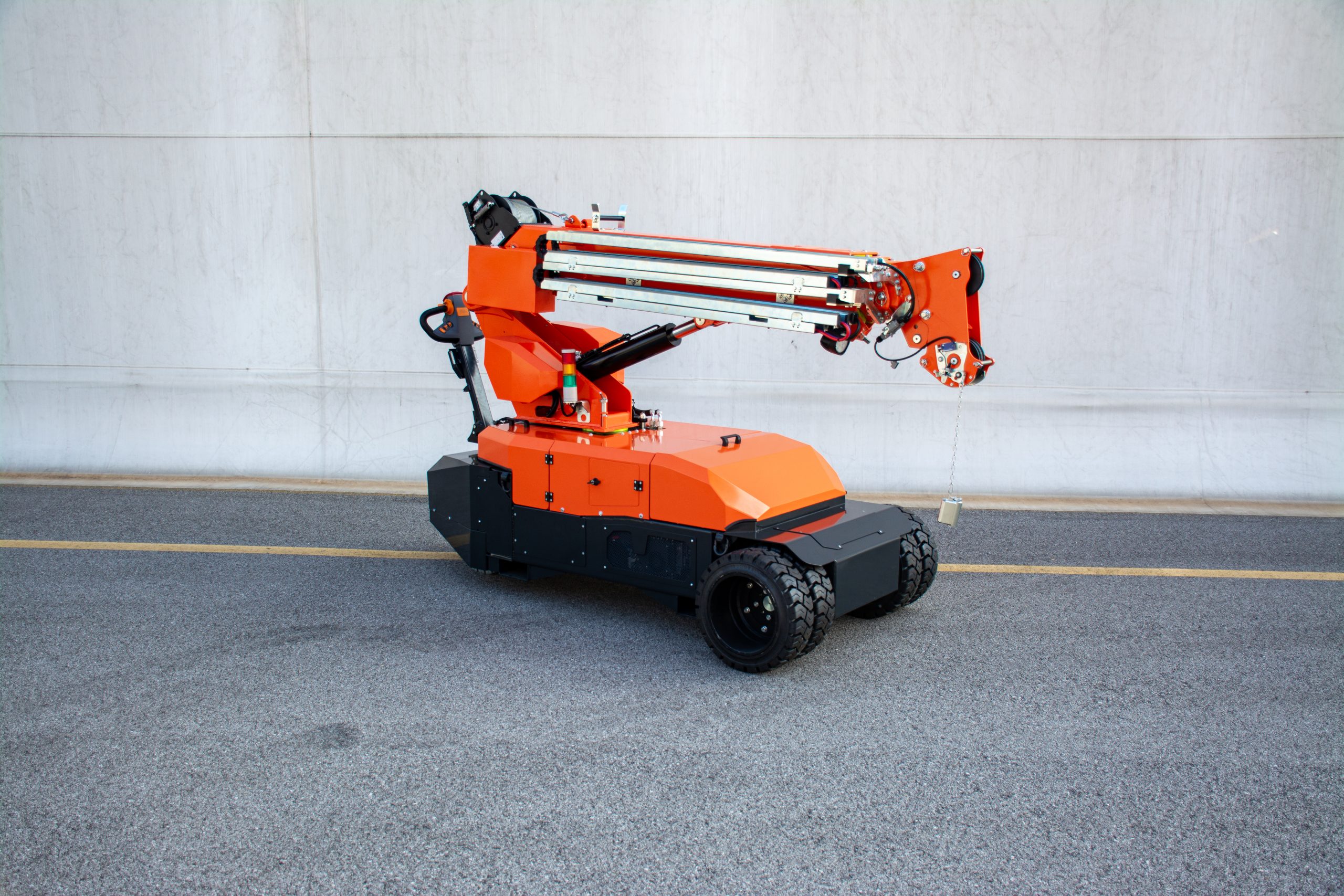

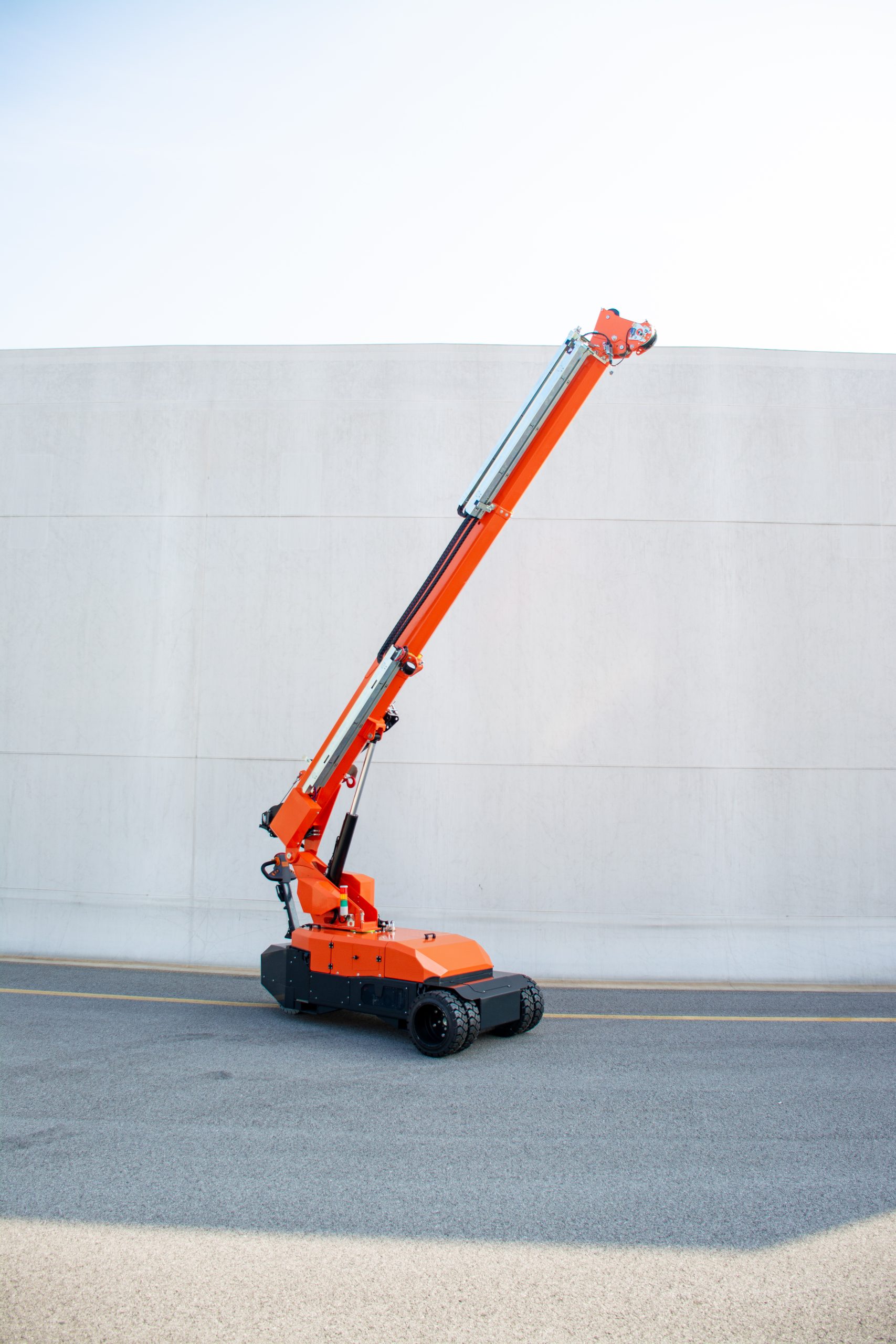

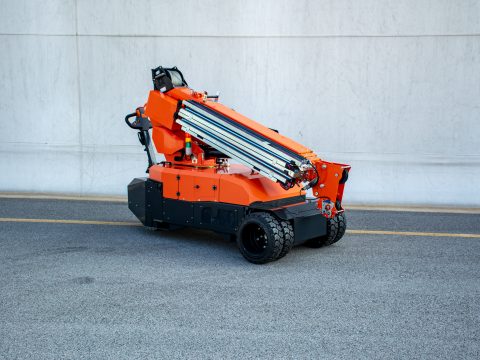

MPK20
4,400 lbs8'8" x 3'1" x 6'4"19'9'2"
The essential partner for industrial maintenance and glass handling. Reliable, safe and easy to use: a small crane with great potential.
Features:
1

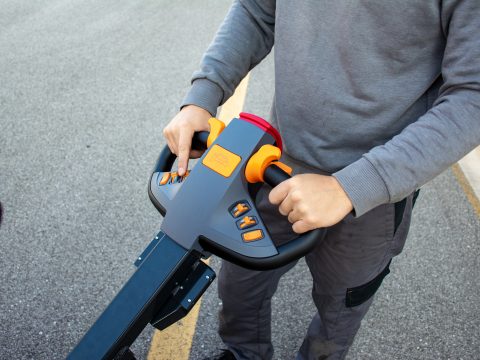

Manual Steering Wheel
Manual Steering Wheel
2
Vacuum Manipulator
Vacuum Manipulator
3

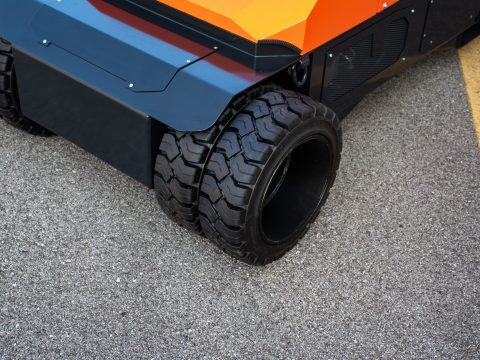

Non-marking tires
Non-marking tires
4
Hook Mode or Pulley Mode
Hook Mode or Pulley Mode
5
1100 lb Searcher Hook
1100 lb Searcher Hook
6
Rear Traction
Rear Traction
7

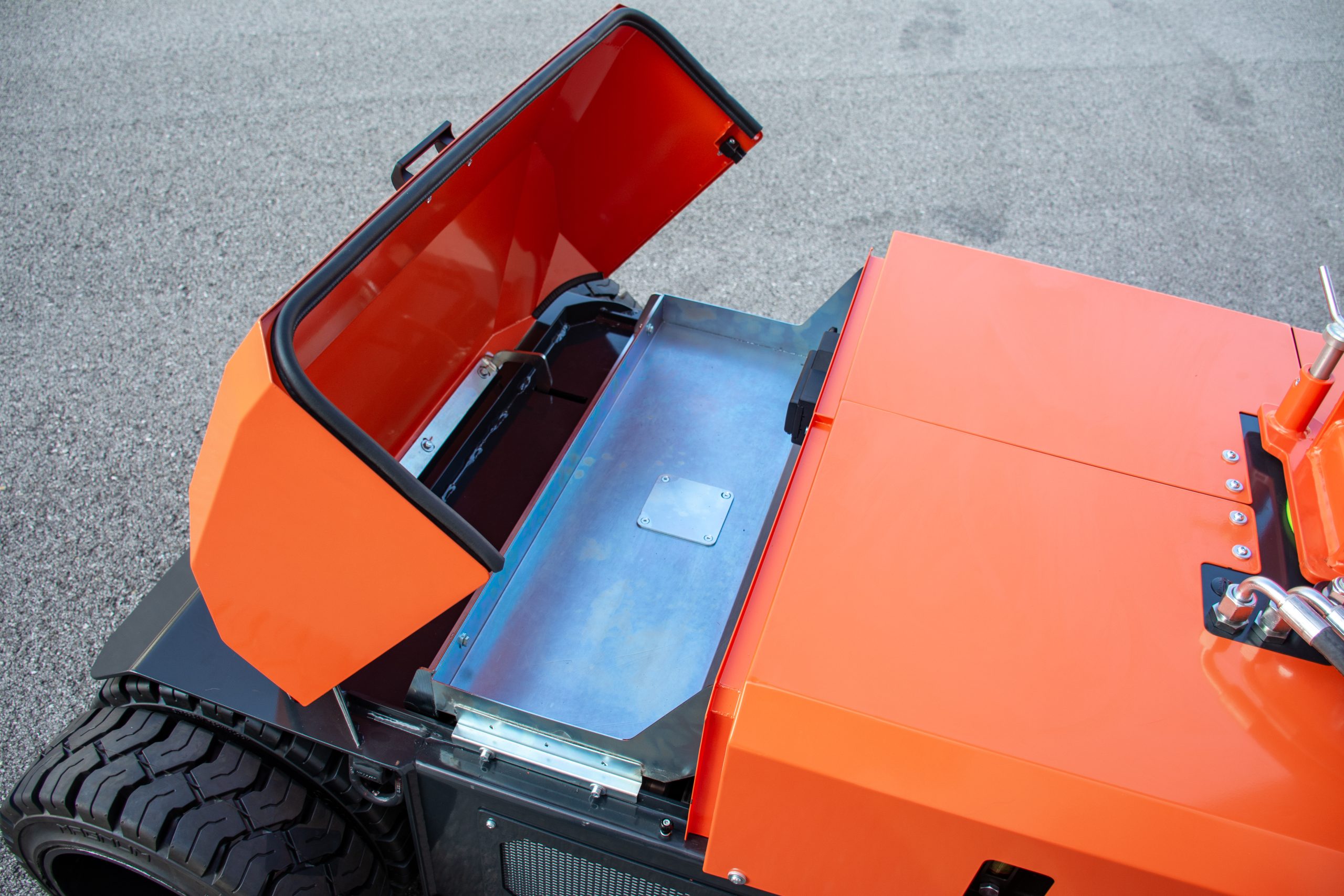

Rechargable Batteries
Rechargable Batteries
8
Radio Remote Control
Radio Remote Control
for the crane
| MPK20 | ||

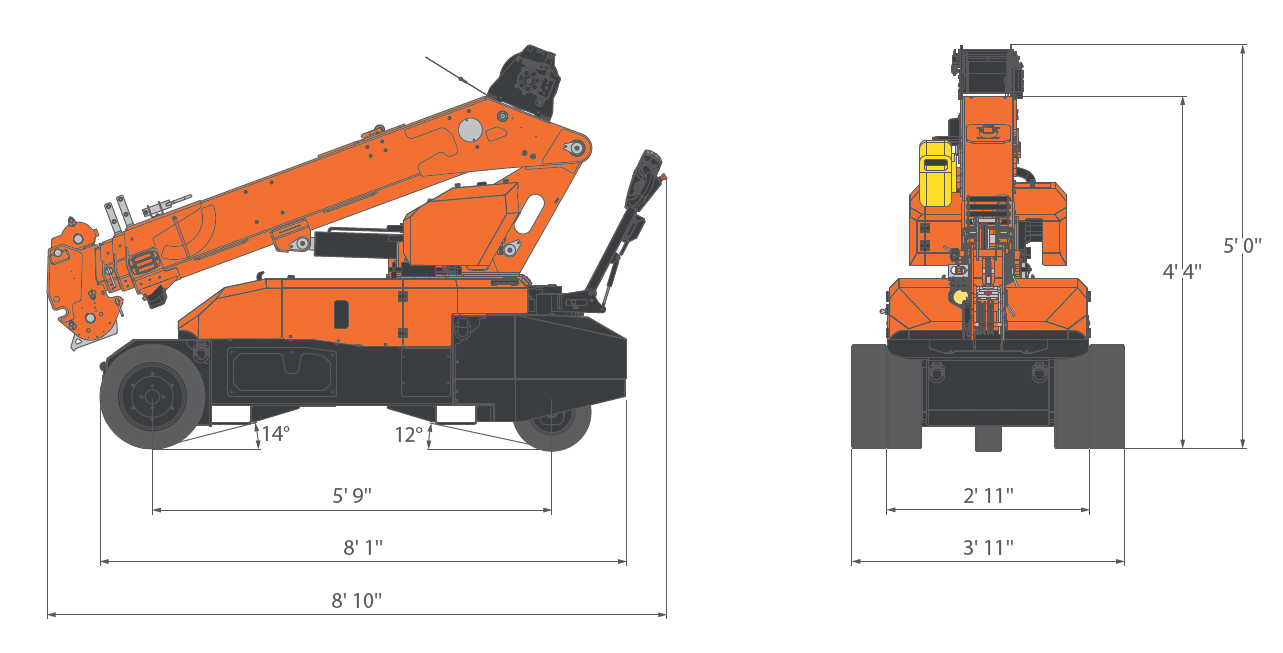

| Dimensions | 8’8″ x 3’1″ x 6’4″ | |
| Weight | Pounds | |
| Minipicker | MPK20 | 3,200 |

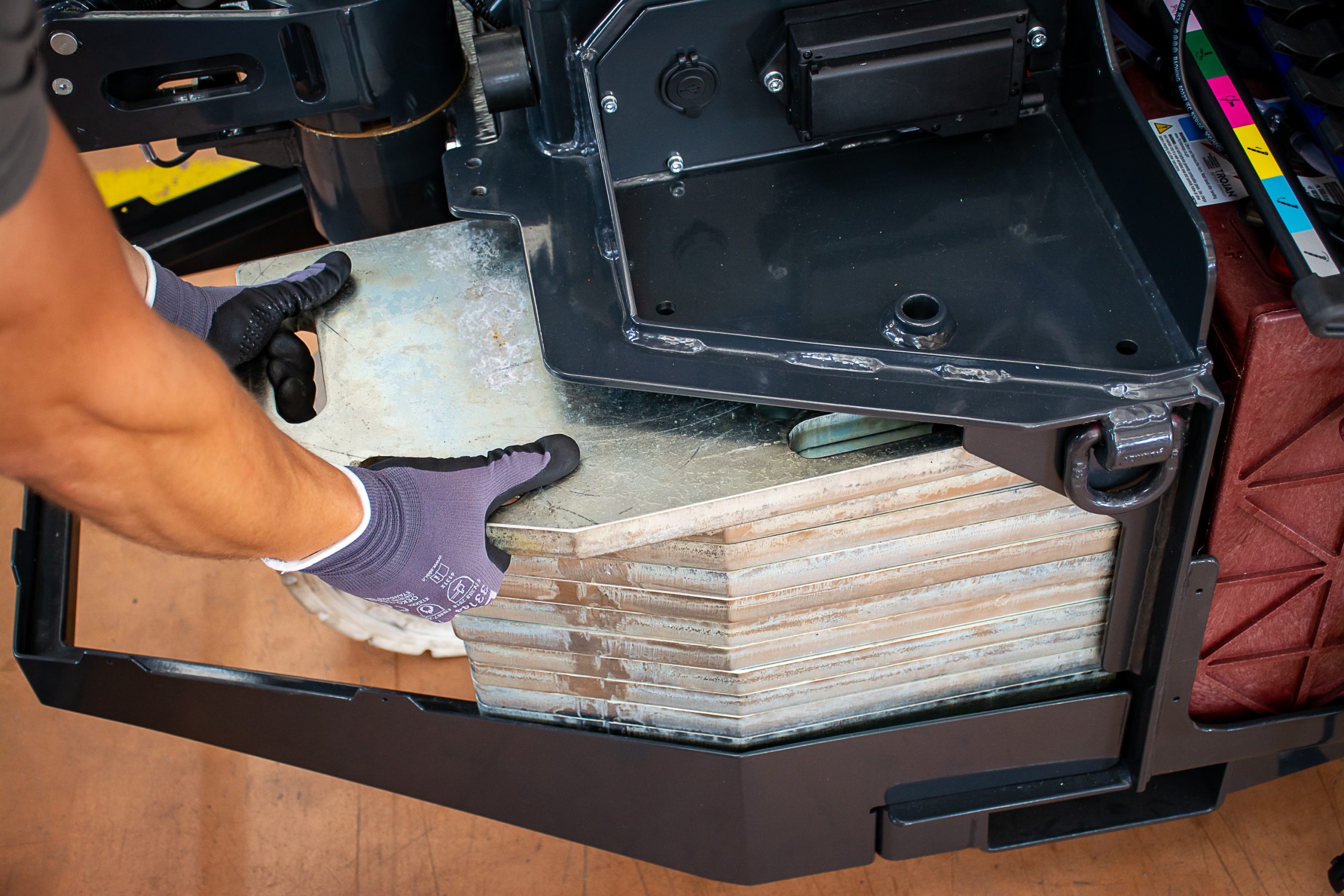

| Counterweight | 1,100 | |
| Hookblock / Capacity | 2T-D7 | 22 |
| Jib | JIB500G | 22 |
| Manipulator | MR800.4 | 660 |
| Electrical System | n°1 24V | |
| 345 Ah | ||
| Power | 3,0 kW | |
| 4,2 Hp | ||
| Main Winch | 1,320 lbs | |
| 190 feet – Ø 1/4 in | ||
| 59 ft/min | ||
| Travel Speed | 1.9 mph | |
| Gradeability | 10° | |
Standard Equipment
All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

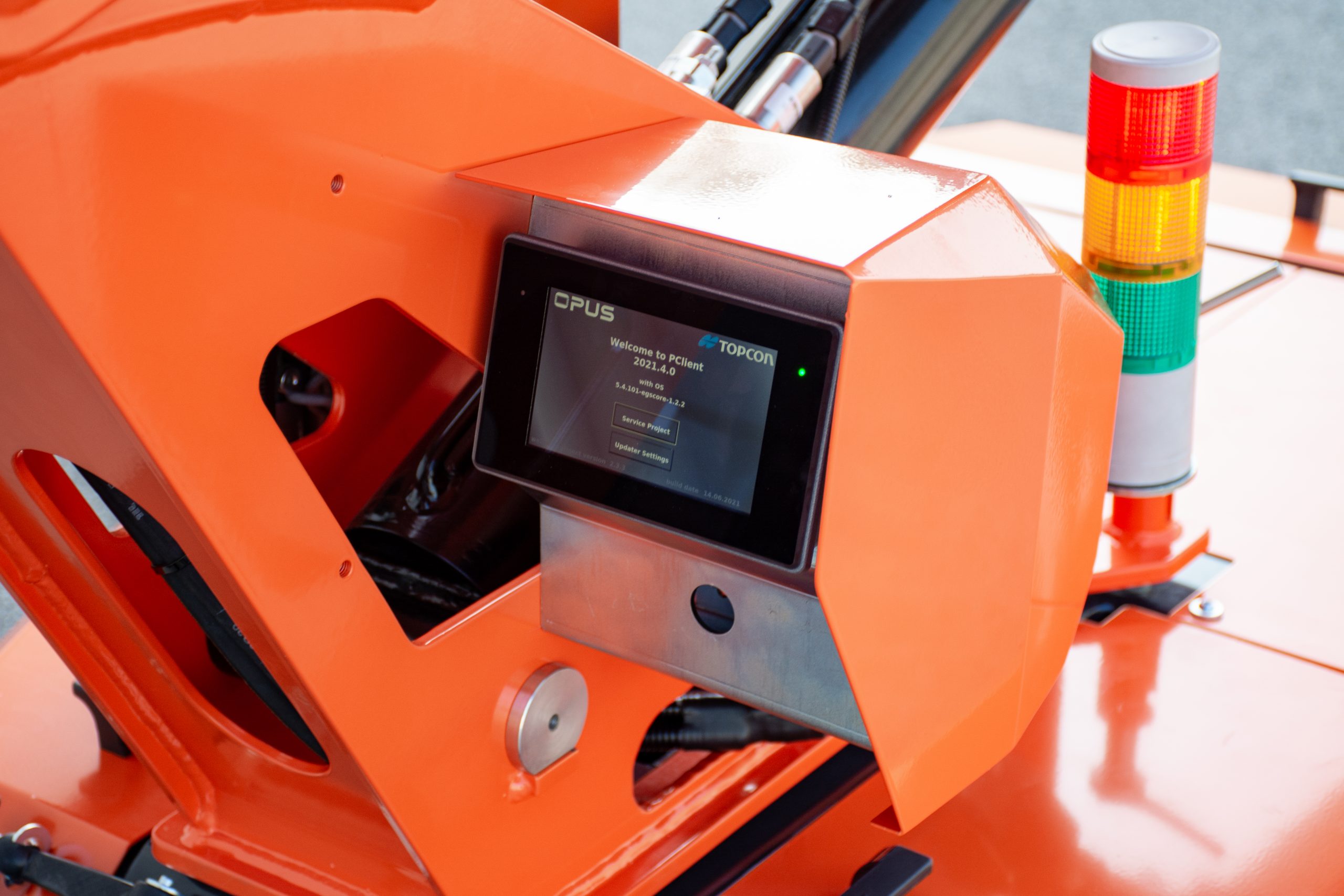

Diagnostic Trouble Code (DTC)
Onboard diagnostic system for troubleshooting
Load Moment Indicator (LMI)
The LMI prevents overload or tipping of the machine.
Low Marking Tires
White rubber wheels leaving no traces
Pick & Carry (P&C)
The machine can move on its tracks while the load is lifted up.
Single Line Hook
Hook for single line pull of the rope.

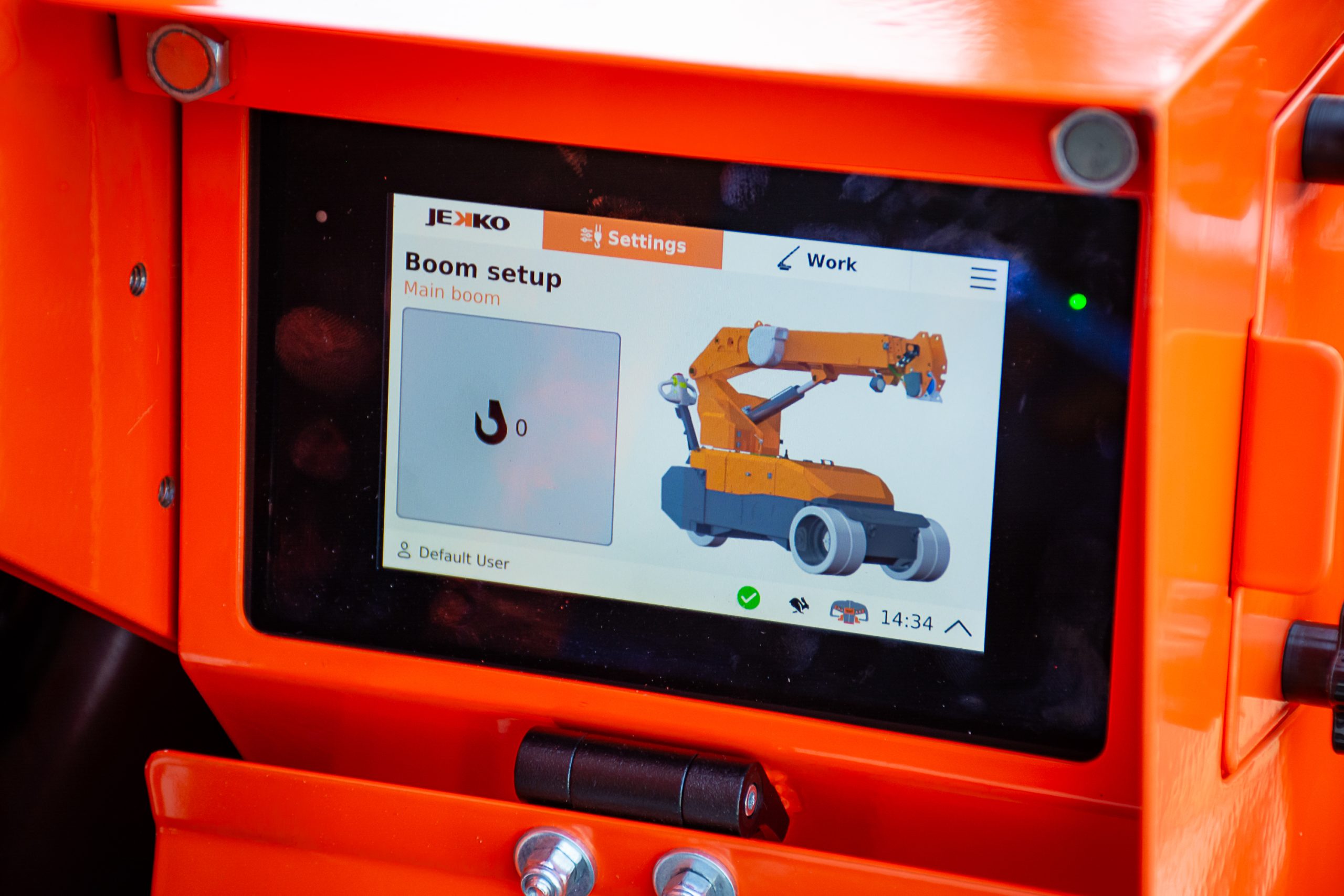

Software
The Jemmy software manages all the machine functions
Tower Lamp
Tower lights (green/yellow/red) that signal errors and dangers
Transportation Anchor Points
Anchor points for handling and transport of the minicrane
Visual Angle Indicator (VAI)
Working angle indicator, compulsory for North America
Options
All mini cranes Jekko can be customized depending on the industry for which they should be used.

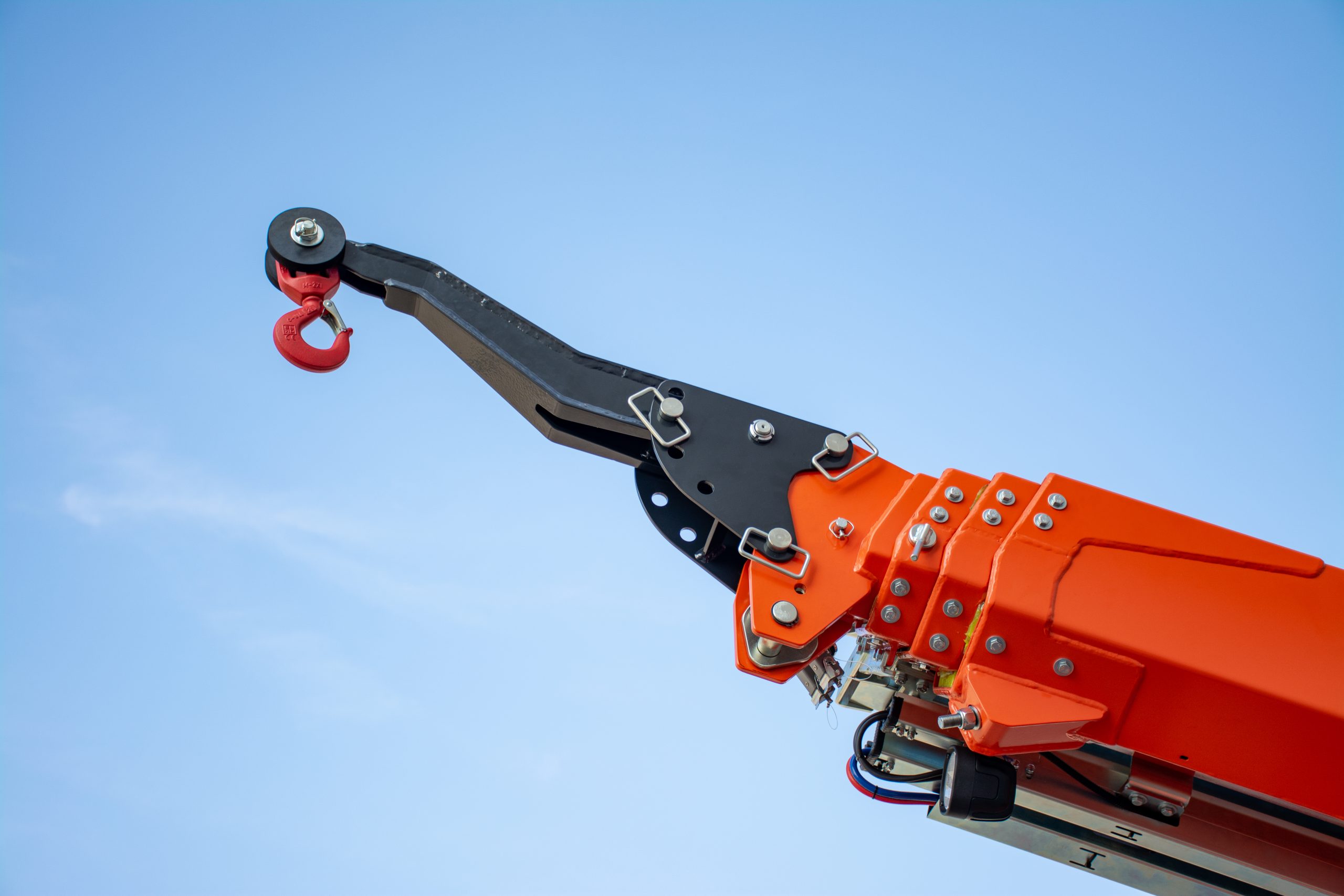

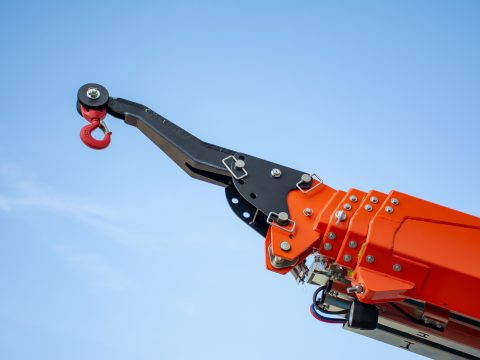

Runner Jib
Hook jib
Personalized Colour
Customized paint colour, choice of engine housing/boom or complete crane.
Radio Remote Control + 2 batteries
Scanreco proportional multipurpose radio remote control with additional battery

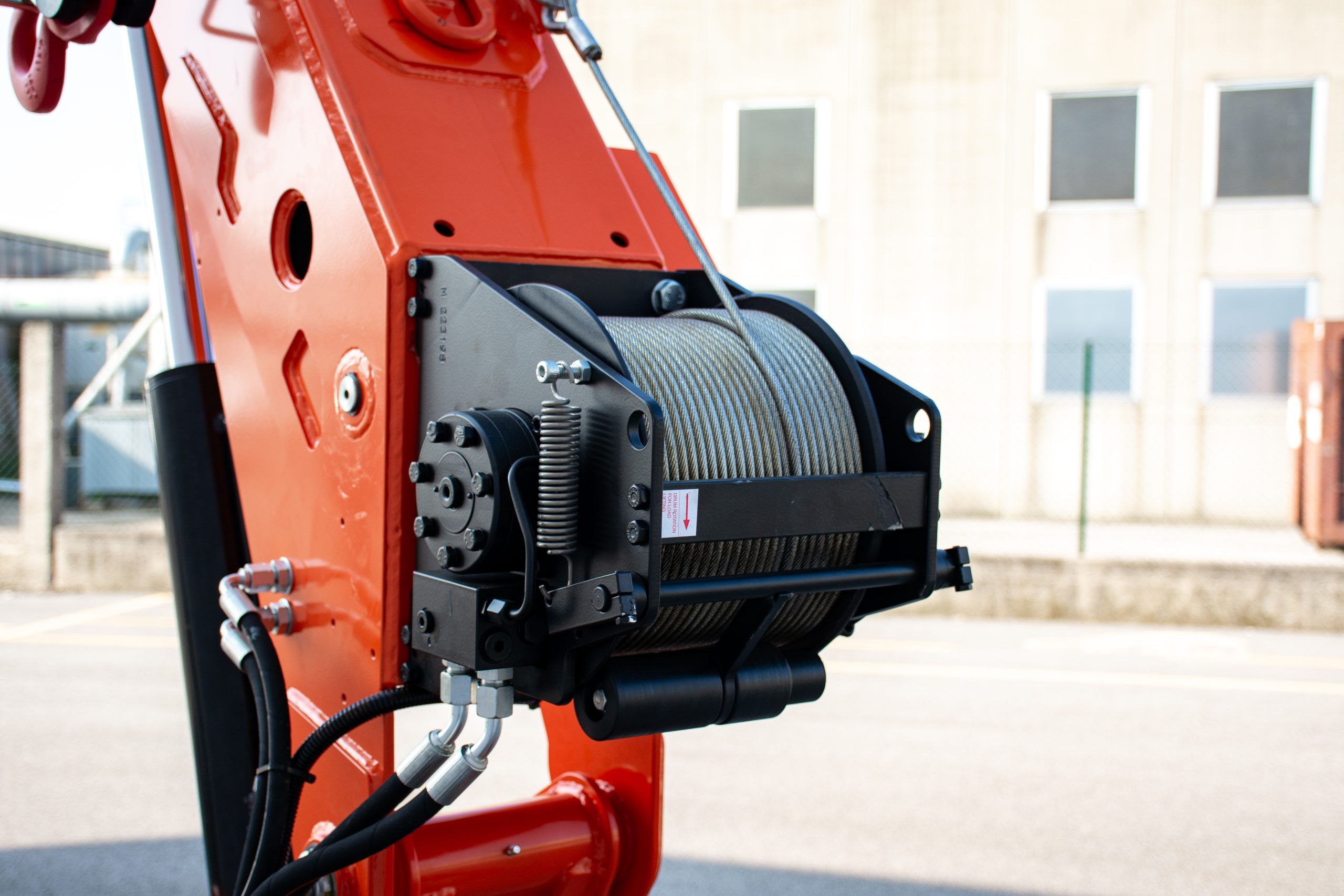

Winch
For additional information
