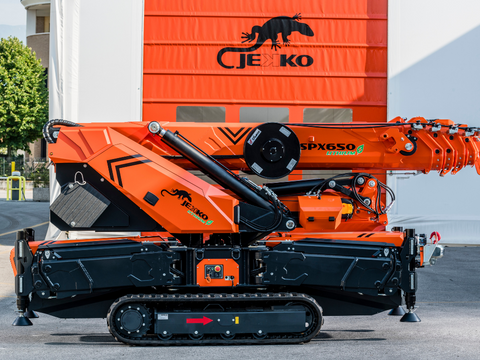

Minicrane

SPX650

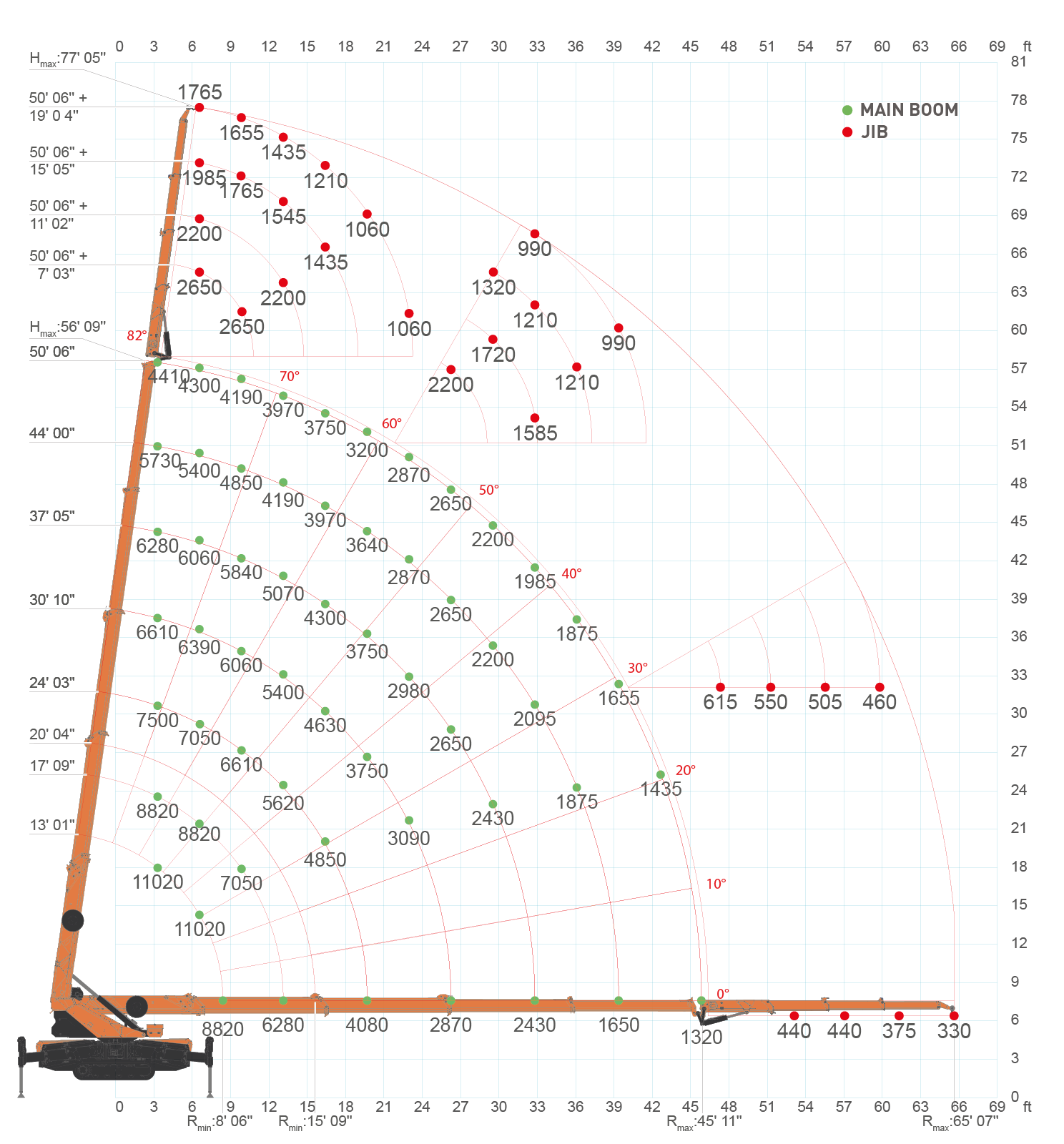

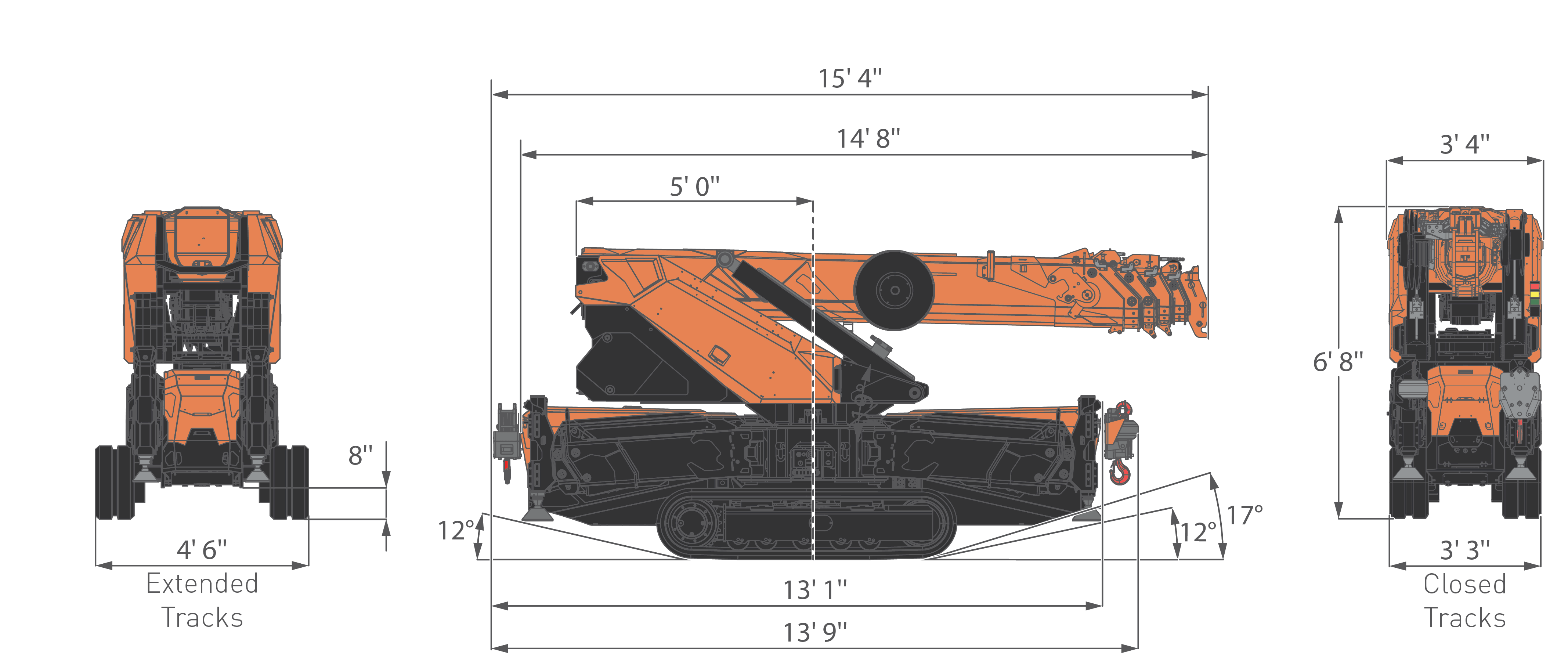

11,020 lb14’ 8’’ x 3’ 4’’ x 6’ 10’’77' 9''65' 7''

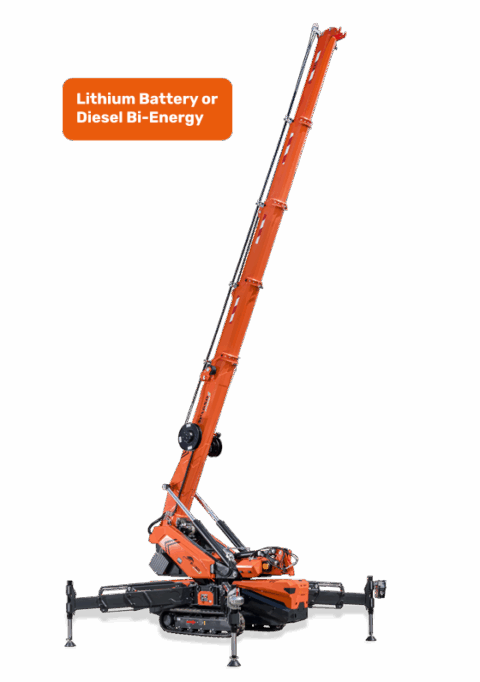

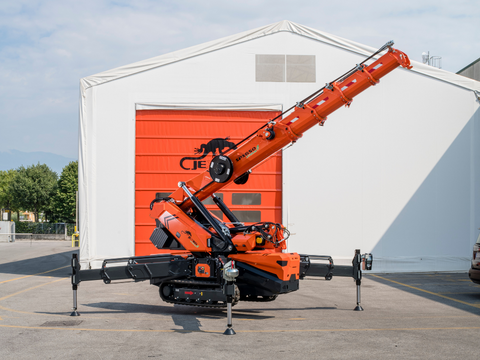

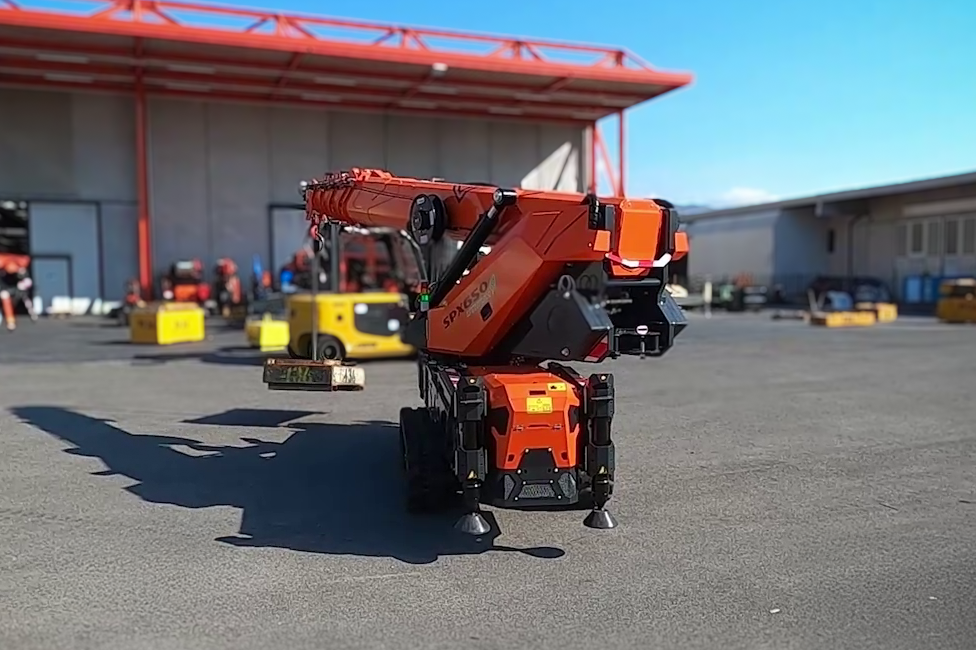

A serious multitasker. SPX650 is Jekko’s 5 ton spider crane that doesn’t just lift—it adapts to the different jobsites, as construction, industrial maintenance, glass handling.
SPX650CDH is available in By-Energy version: an high efficiency Diesel engine combined with an electric Power Pack for 100% electric operation. Compact and agile like all Jekko mini crawler cranes, the SPX650CDH delivers precise lifting in tight spaces.

Features:

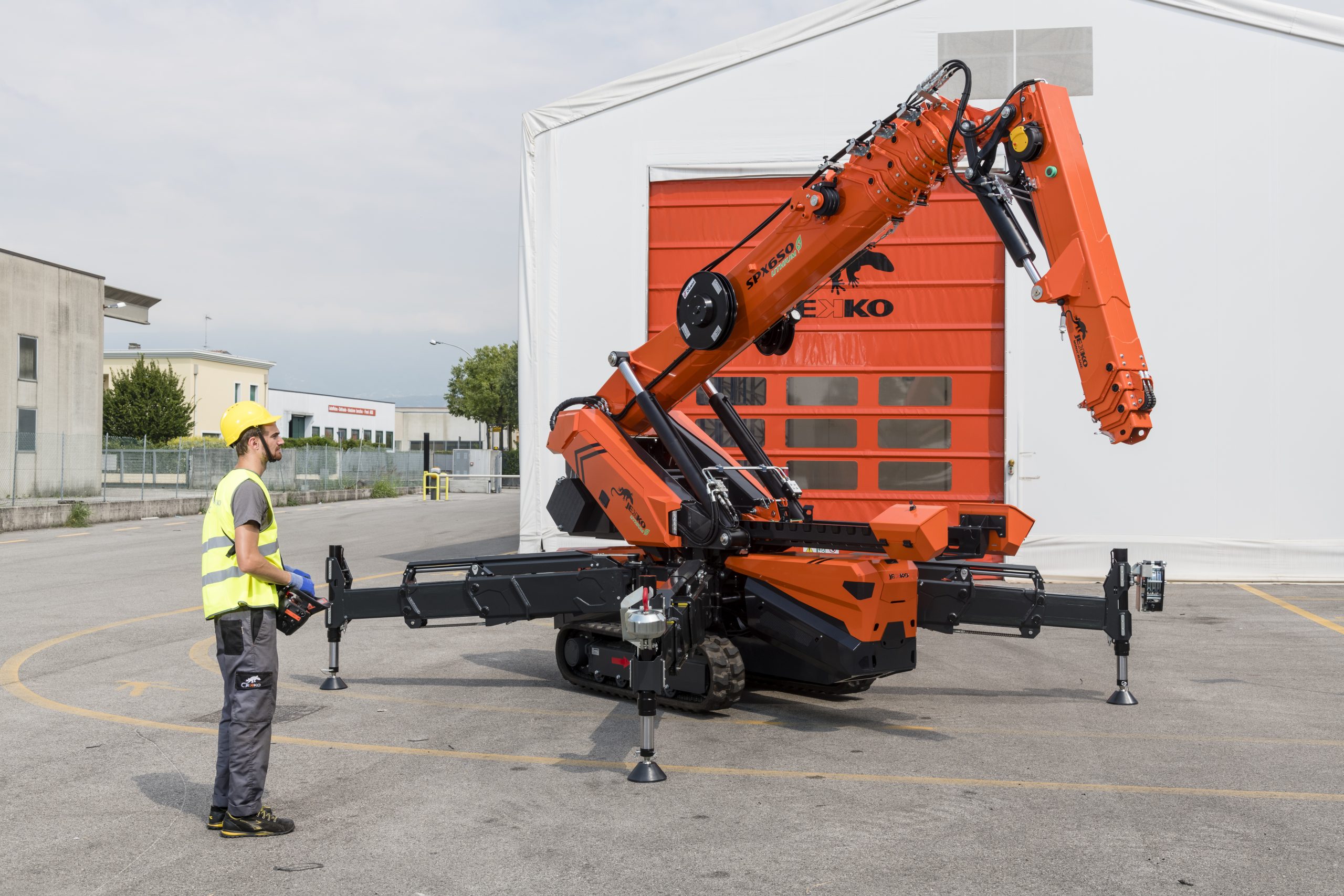

1 Strenght and precision Strenght and precision
  • Unmached structure design
  • Engineered to maximise stiffness and load stability
  • Dynamic load sway control for accurate load handling
  • Automatic speed adjustment to ensure smooth and precise maneuvers
  • Automatic movement limitation to maximise safety

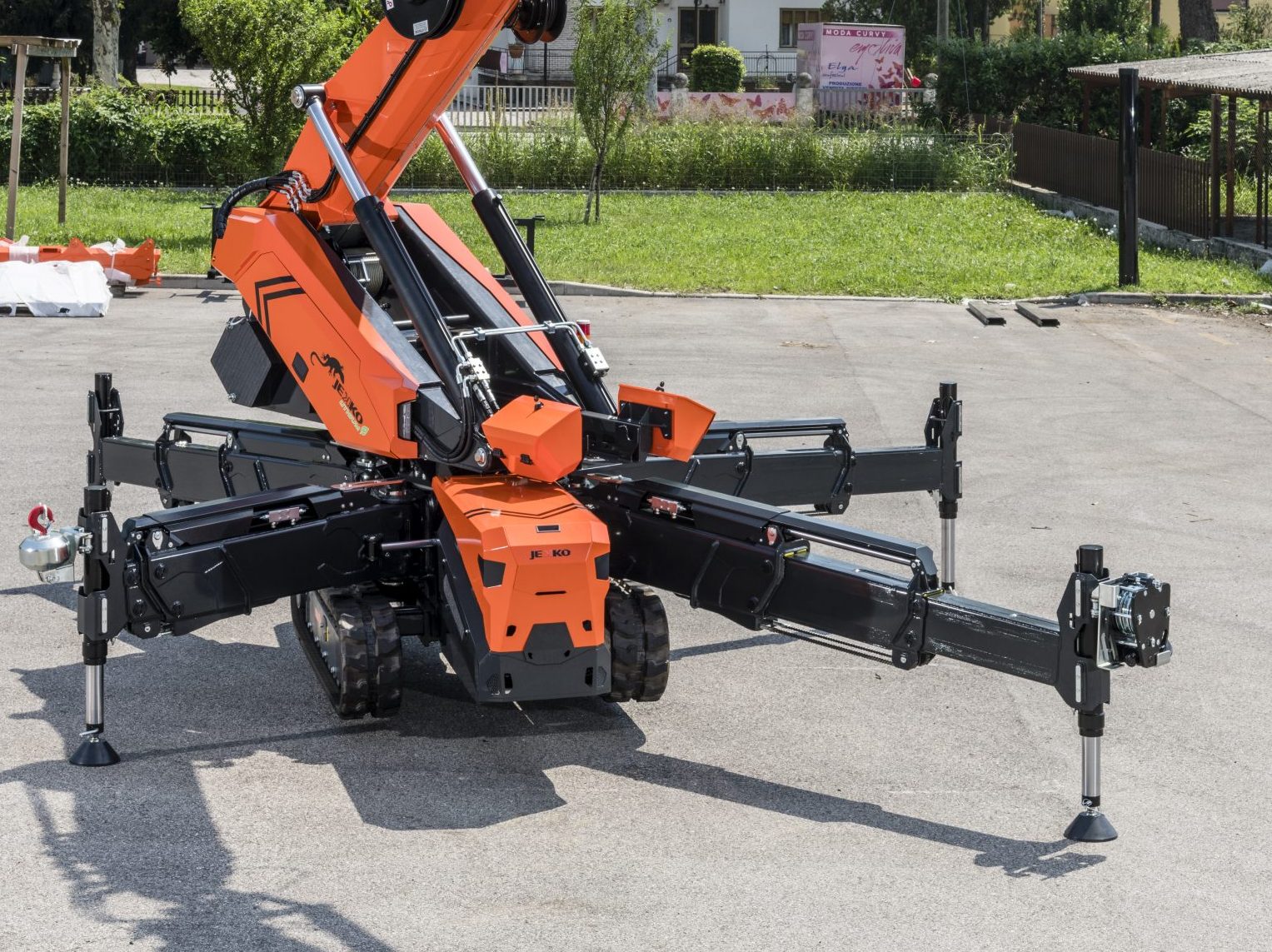

2 Wide stability solutions Wide stability solutions
  • Optimal lifting capacity/footprint ratio
  • Stepless outriggers rotation 0°/70°
  • Stepless telescopic outriggers extension
  • Adjustable outriggers height
  • Self-levelling

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

Endless crane configurations

Different working mode: hooke, winch, hydraulic jib, runner jib and Plug&Play tools

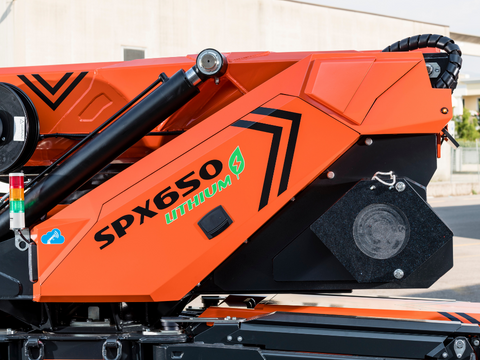

Lithium Battery

Indoor operation, emission freeMaintenance freeRuntime over 1 workdayOn board 110/230V fast charger: 0-80% in 3 hAdjustable charging currentWork while charging.

Pick & Carry

Up to 1750 lb; extendable crawler for improved driving; 360° turret rotation.

J-Link by TrackUnit

Remote fleet monitoring and diagnostics; Built-in or retrofit on existing units.

Accurate load handling

  • Dynamic load sway control;
  • Automatic speed adjustment to ensure smooth and precise manoeuvres;
  • Automatic movement limitation to maximize safety;
  • Compontents engineered to maximize stiffness and load stability.

Safety systems

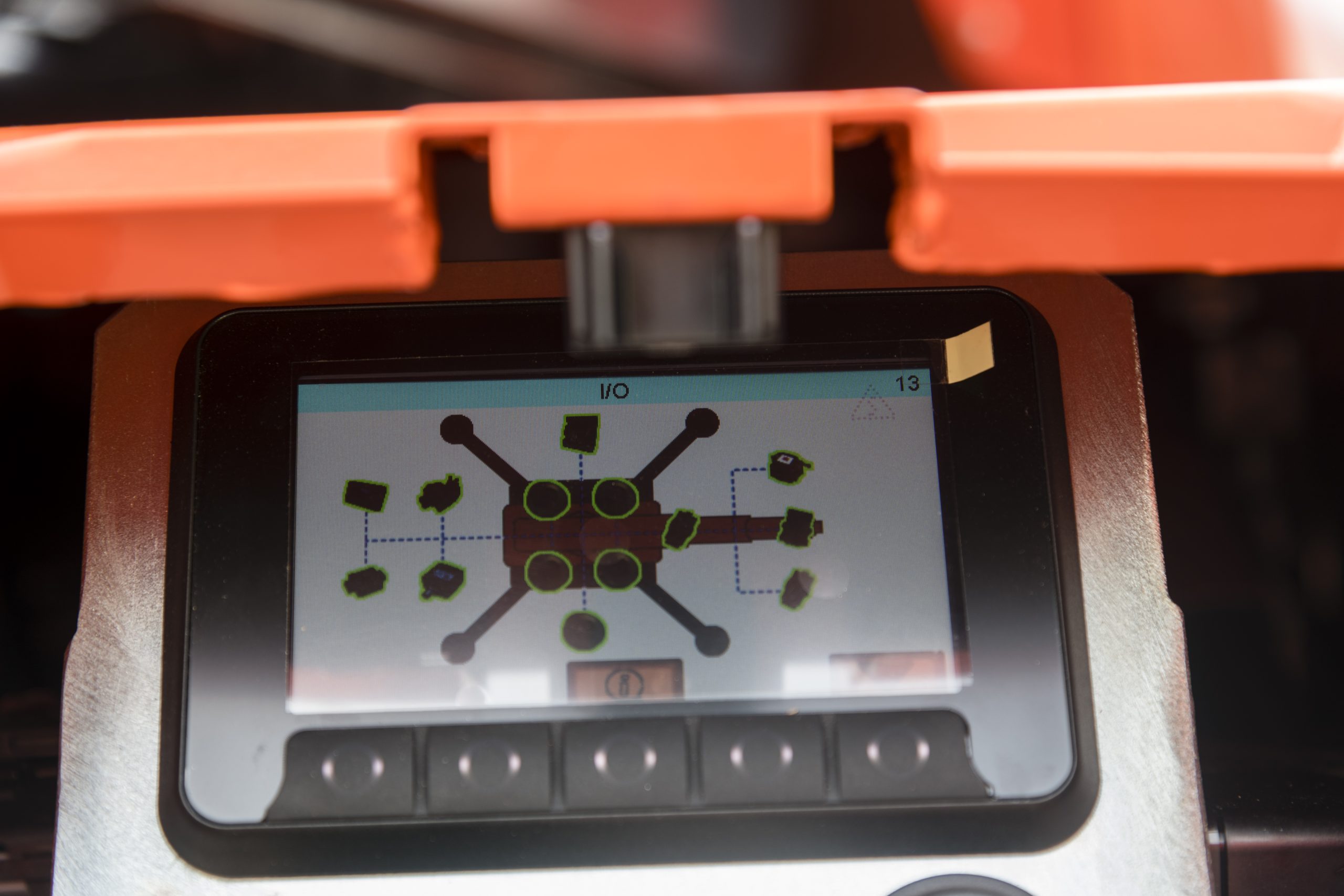

Full LMI, anti-crash system and feedback on display.
