Lifting beams

5 ton / 10 ton / 20 ton

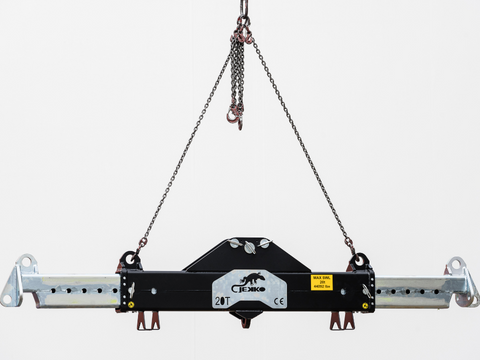

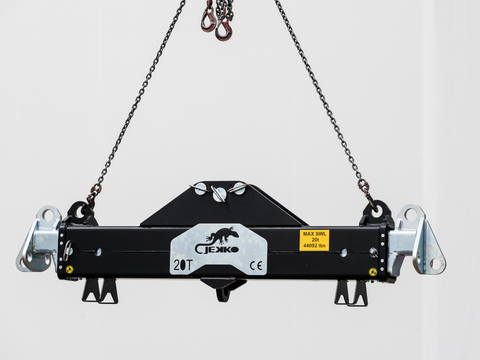

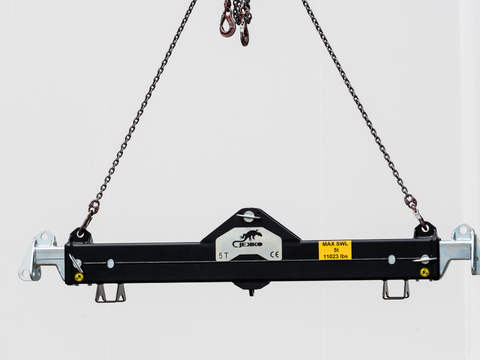

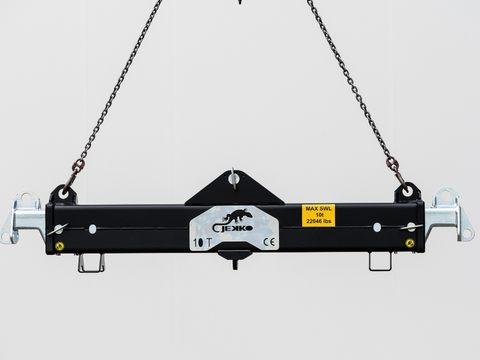

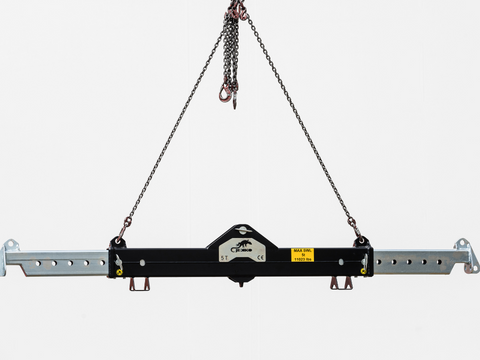

Used for various purposes, from industrial handling to load lifting, the special feature of the Jekko lifting beam is its side telescopic extension for increased versatility of operation. Made of high-strength steel and fitted with galvanized extensions and a painted central frame, it has several hooking points for different lifting configurations. The Jekko lifting beam range includes 5-, 10- and 20-ton capacity models.

JLB-5/2 JLB-10/2 JLB-20/2
Maximum Swl 5 ton 10 ton 20 ton
kg-lbs 220 lbs 331 lbs 661 lbs

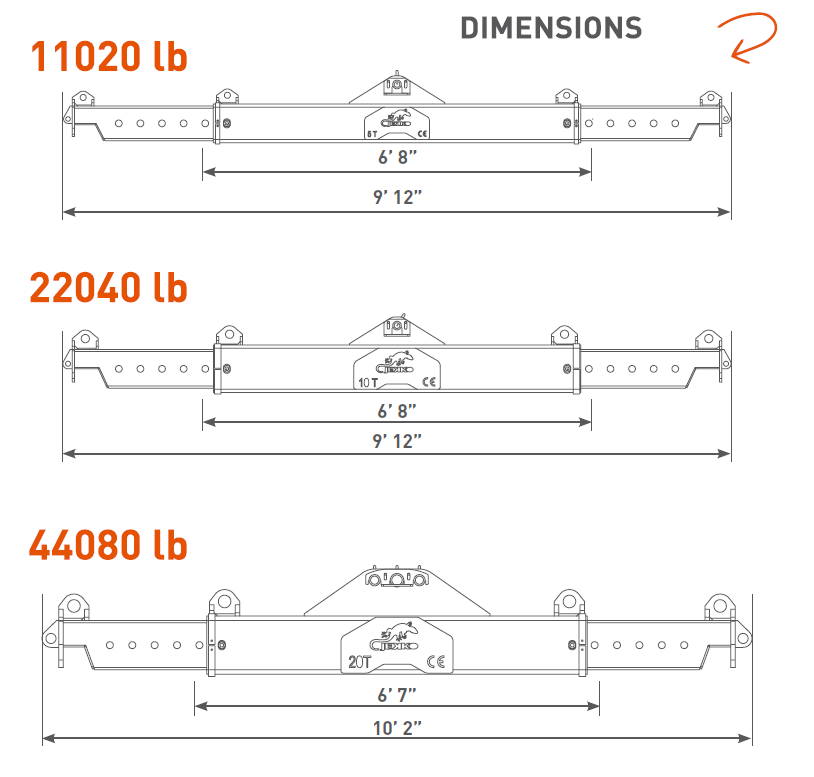

Beam2 6’5″ 6’5″ 6’6″
Beam 9’8″ 9’8″ 9’9″
Anchor no no yes
