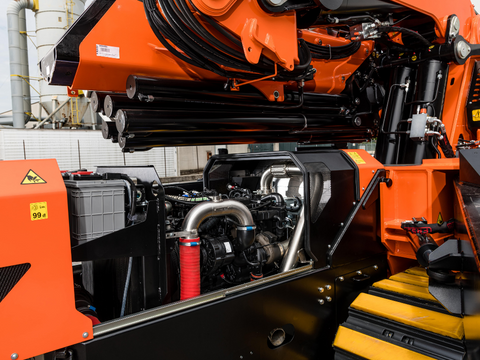

Diesel Electronic Engine
KUBOTA V3307-CR-TE4 TIER IV Stage 5 -TURBO 55.4Kw/74.3Hp
Articulated Crawler Cranes

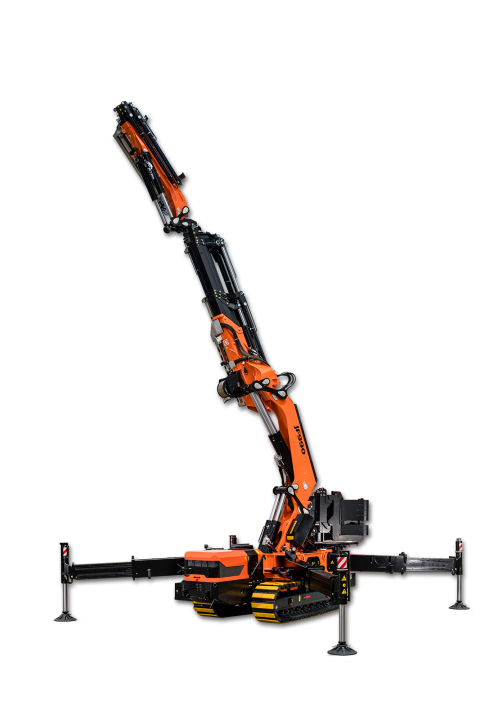

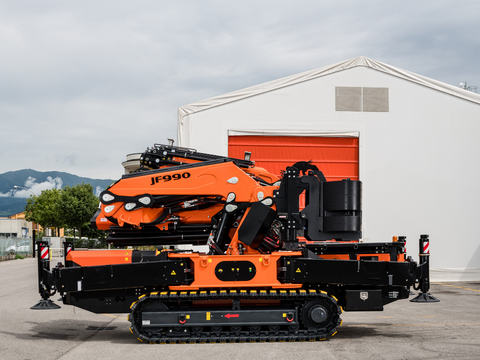

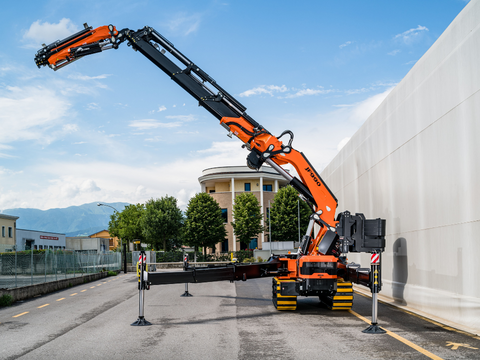

JF990
47,400 lbs22'2" x 7' x 10'2"134.5'124.6'
The biggest transportable crawler crane is now available.
| JF990 | ||

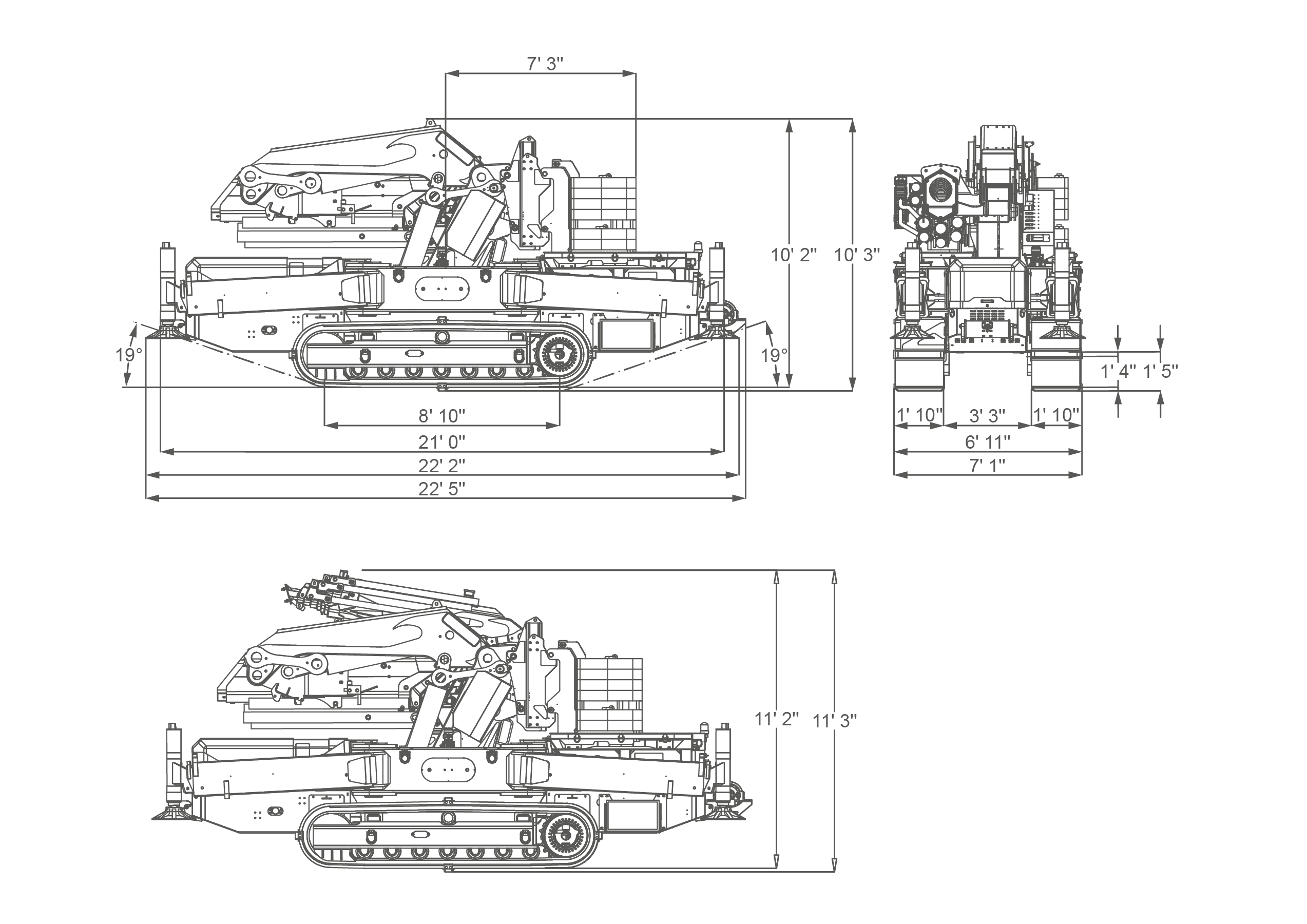

| Dimensions | 22.1′ x 7′ x 10.2′ | |
| Stabilization Area | 8,5 x 8,5 mm | |
| Weight | Pounds | |
| Crane | JF990 | 44.092 |
| Counterweight | 7716 lbs+ 6613.8 | |
| Jib | JIBL616 | 3703.7 |
| Basket | 440.9 | |
| Engine | KUBOTA V380-CR-T(I)E4 | |
| Diesel Fuel | Yes | |
| Power | 85kW – 110Hp | |
| Max Outrigger Load | 39,683 lbs | |
| Max Track Load | 0,82 kg/cm2 | |
| Travel Speed | 2.72 fps | |
| Gradeability | 20° | |
Standard Equipment
All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

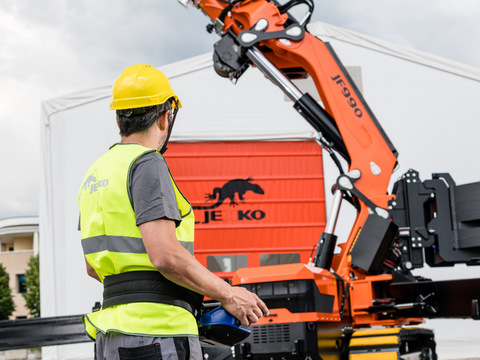

Radio Control Display (RCD)
Display on the radio remote control showing the machinery load information.
Geometrical Stability Control (GSC)
Geometrical Stability Control (GSC) shows the position of each single outrigger and operating sector.
Counterweight
Counterweight 3.5 ton
Steel Tracks
Tool Box
Rotation
with hydraulic motor and pinion.
Set up for Jib Installation
Mechanical, hydraulic and electric
Set up for Winch Installation
Mechanical, hydraulic and electric
Options
All mini cranes Jekko can be customized depending on the industry for which they should be used.

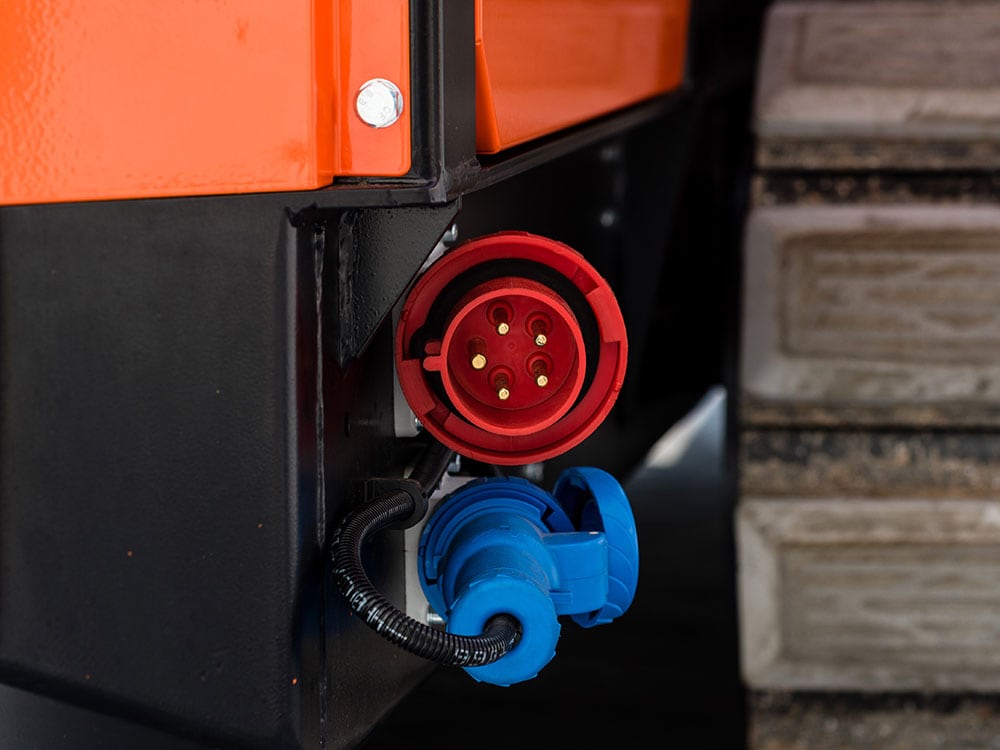

Power Pack
400V or 220V additional electric motor (North America)

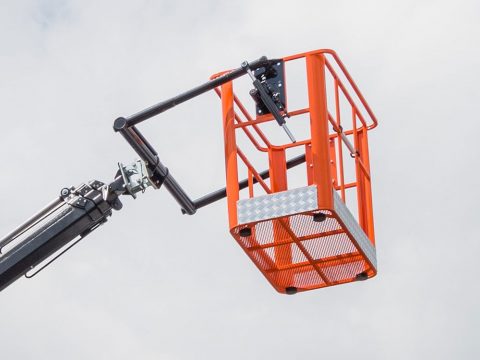

Man Basket
2 Men steel baske with gravity levelling and/or mechanic slewing
Towing winch
Towing winch 10 ton
Low marking pads
Low Marking White Track pads
J-Connect
Telemetry and remote assistance
Winch 2 ton
Winch V20, 2 ton with pulley block for 3 lines, 60m rope

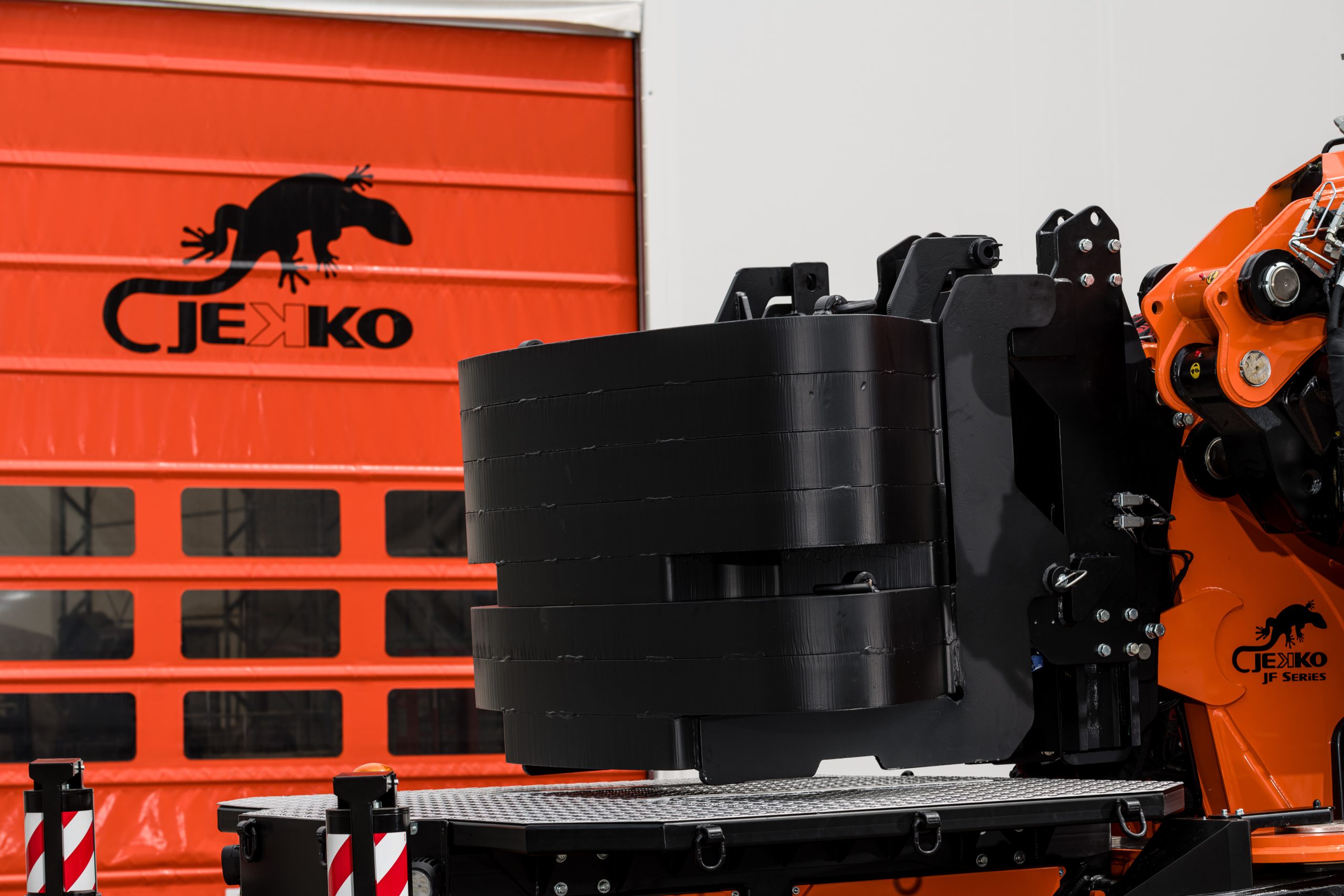

Automatic counterweight dismantling
Automatic counterweight dismantling system

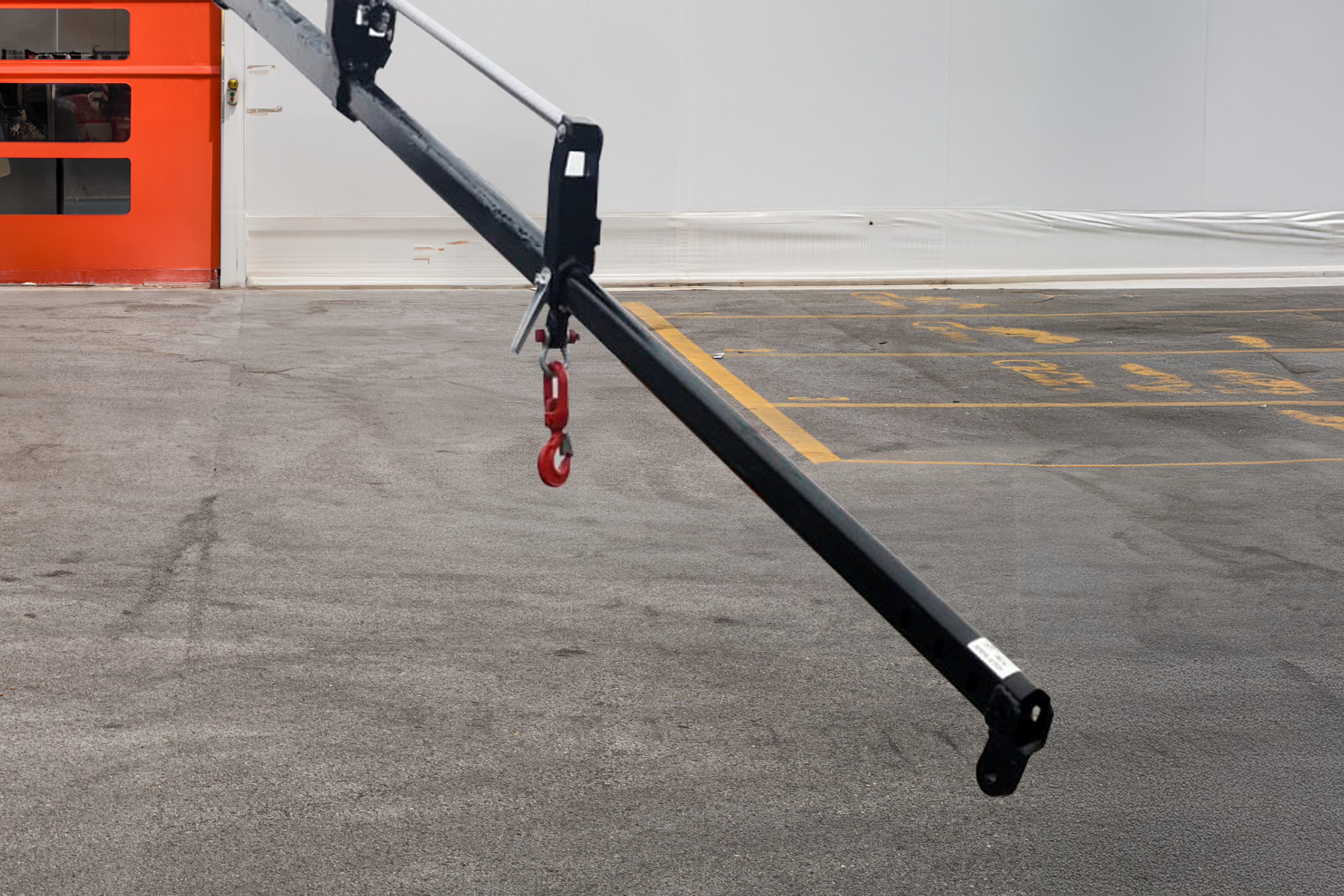

Manual extension
Manual extension for main boom or jib
Searcher hook kit
Searcher hook kit for main boom or jib
Hydraulic Extra Functions
Hydraulic activation for hydraulic accessories such as jibs and manipulators. It is necessary to deliver oil to the machine boom end.
Mobile Elevated Work Platform Kit
Mobile Elevated Work Platform Certification
Mobile Elevated Work Platform Certification on Man-Basket
Towing Winch Activation
Hydraulic activations for towing winch
Hook Leveling System for Winch
On main boom and jib.
Personalized Colour
Customized paint colour, choice of engine housing/boom or complete crane.
