Articulated Crawler Cranes

JF545.2

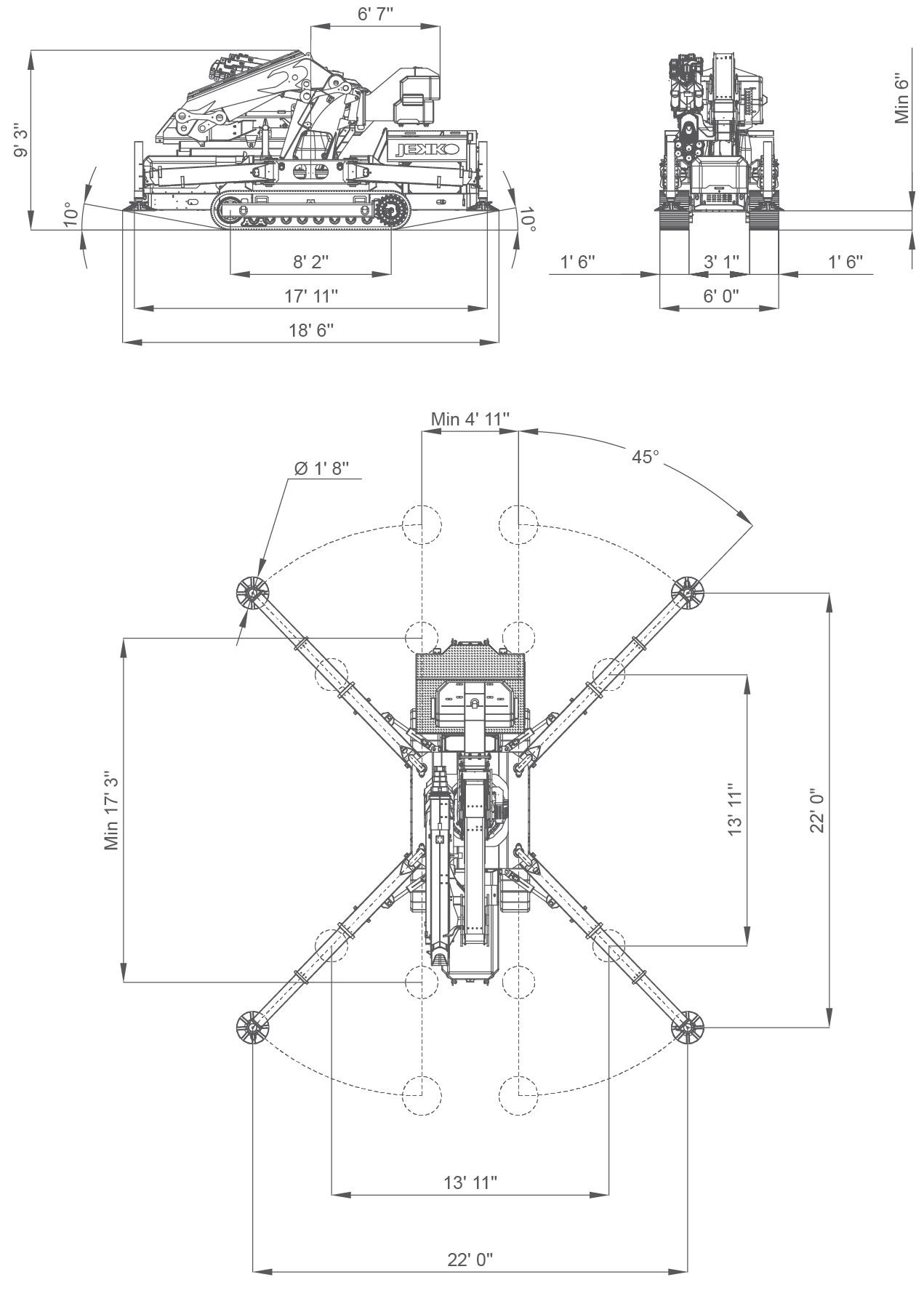

34,200 lb19’ 2’’ x 6’ 0’’ x 9’ 3’’102’ 0’’ 11392’ 6’’

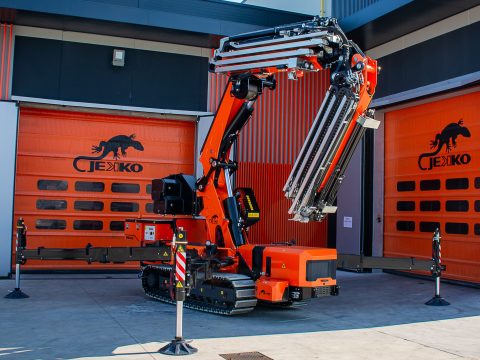

The JF545.2 knuckle boom crane combines the flexibility and power of an articulated crane boom with the compactness and versatility of a mini crawler crane. This advanced model – of a lifting capacity of up to 34,170 lb – stands out in the articulating crane market for its versatility, precision, and compact size.
JF545.2 is available in By-Energy version: an high efficiency Diesel engine combined with an electric Power Pack for 100% electric operation.
Whether you’re doing industrial maintenance, lifting in urban sites or navigating complex spaces, the JF545.2 articulated crawler crane with its knuckle boom design is built to handle the job with ease and reliability.

Features:

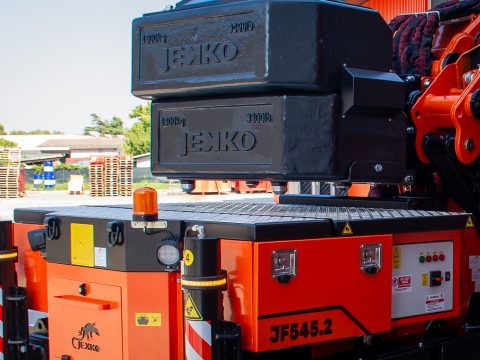

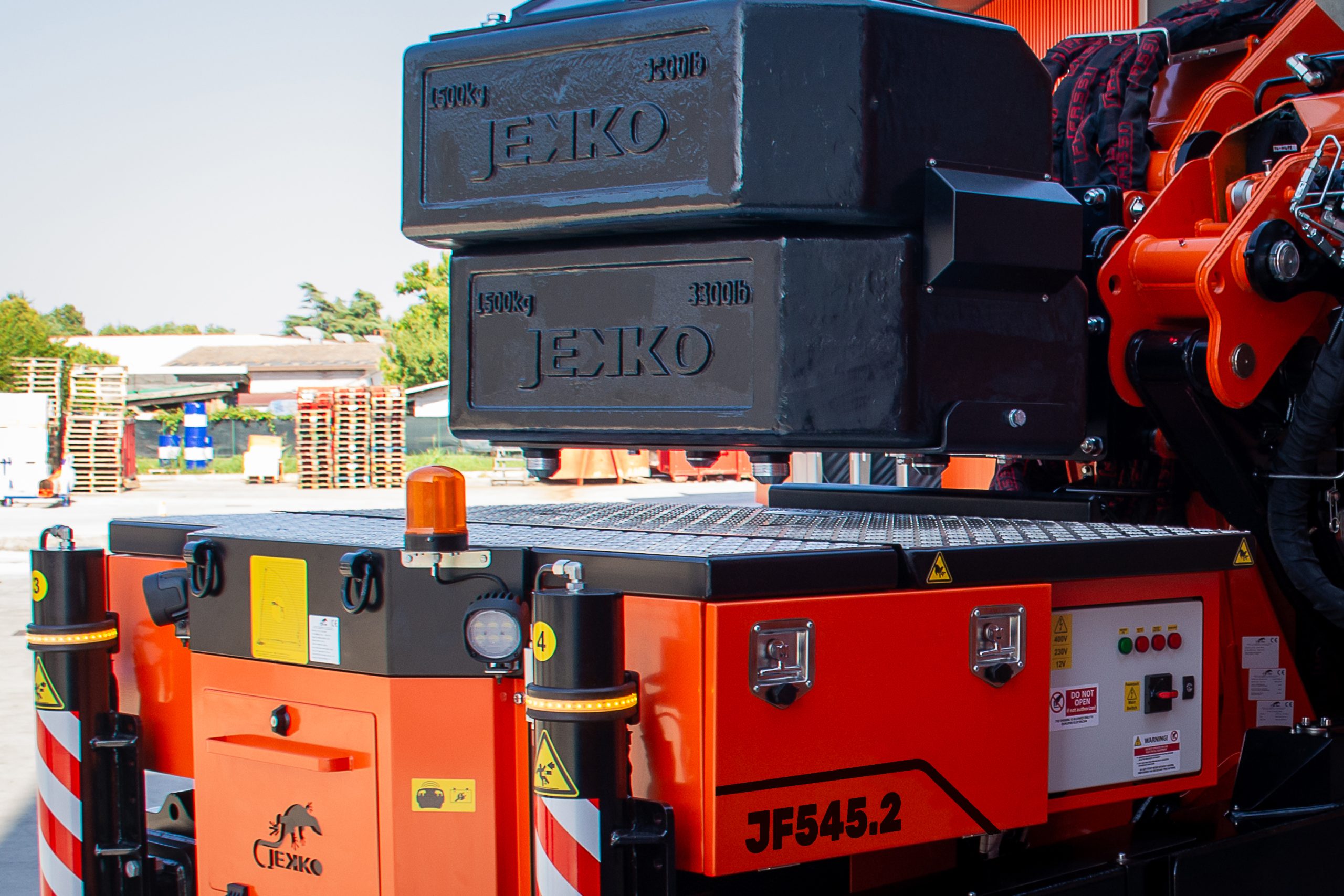

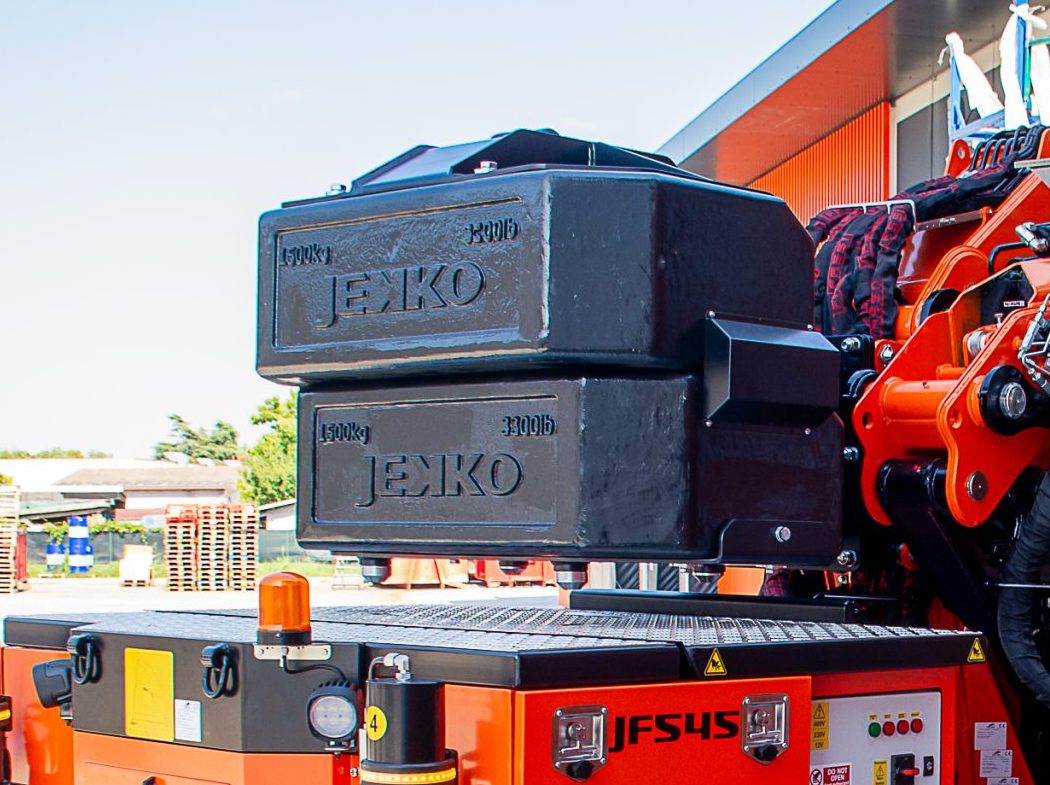

1 Self removable counterweight Self removable counterweight

7700 lb, easy to remove for an improved crane transport.
Easy to remove on jobsites to improve column rotation in narrow spaces.

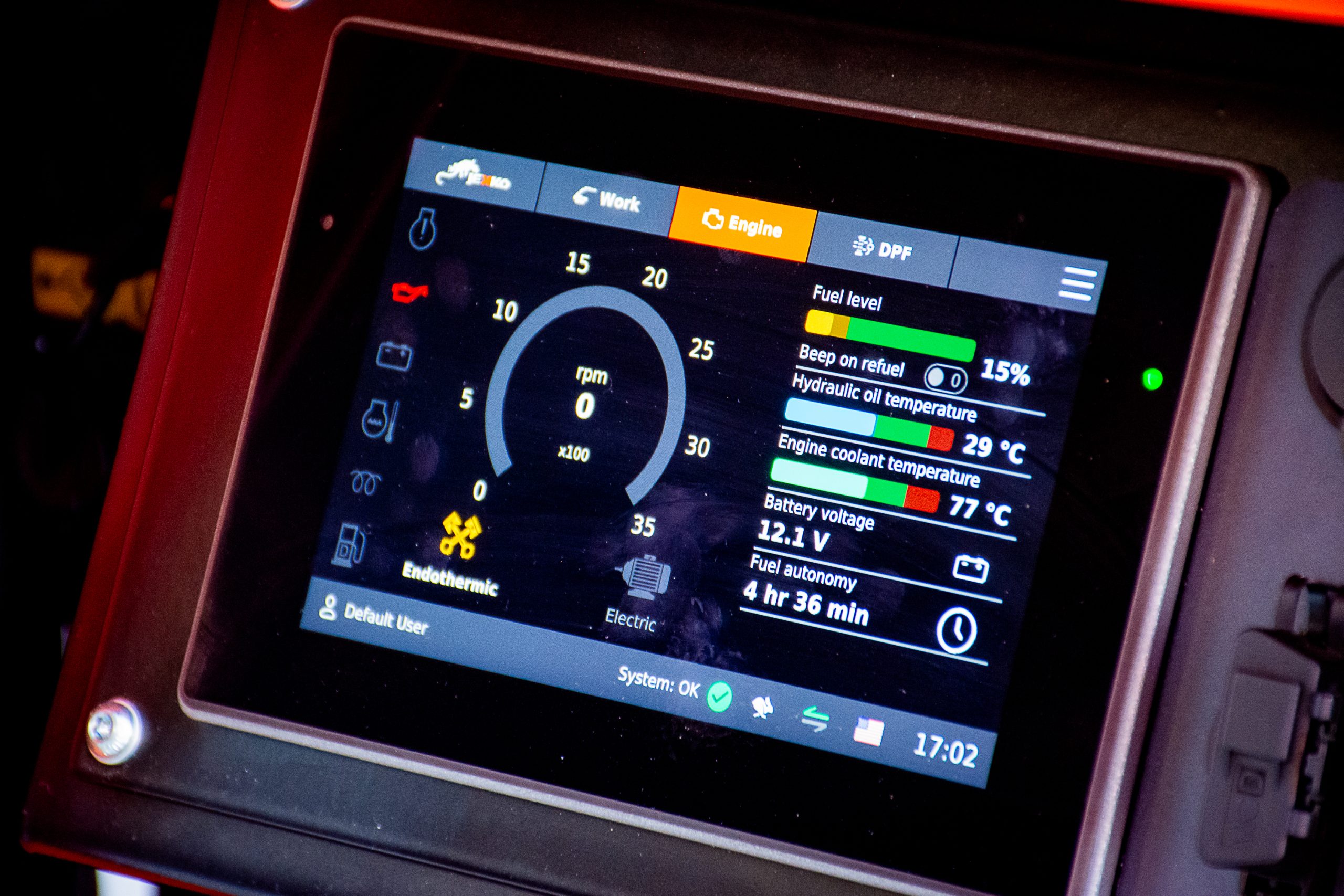

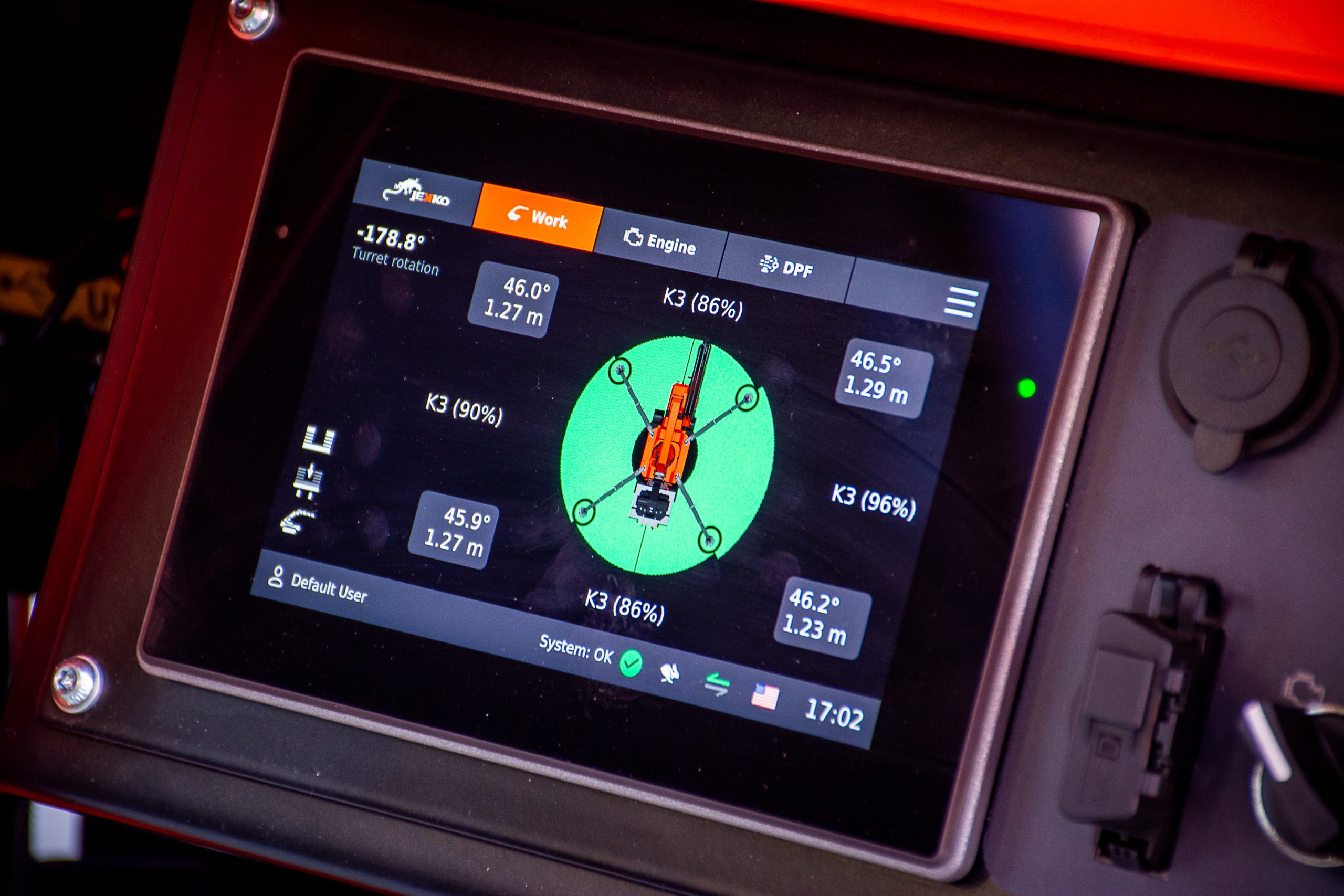

2 Intuitive Touch Display Intuitive Touch Display

• 7” IP66 heavy duty
• Live stability area
• Crane assistant onboard
• Self-diagnostics & troubleshooting

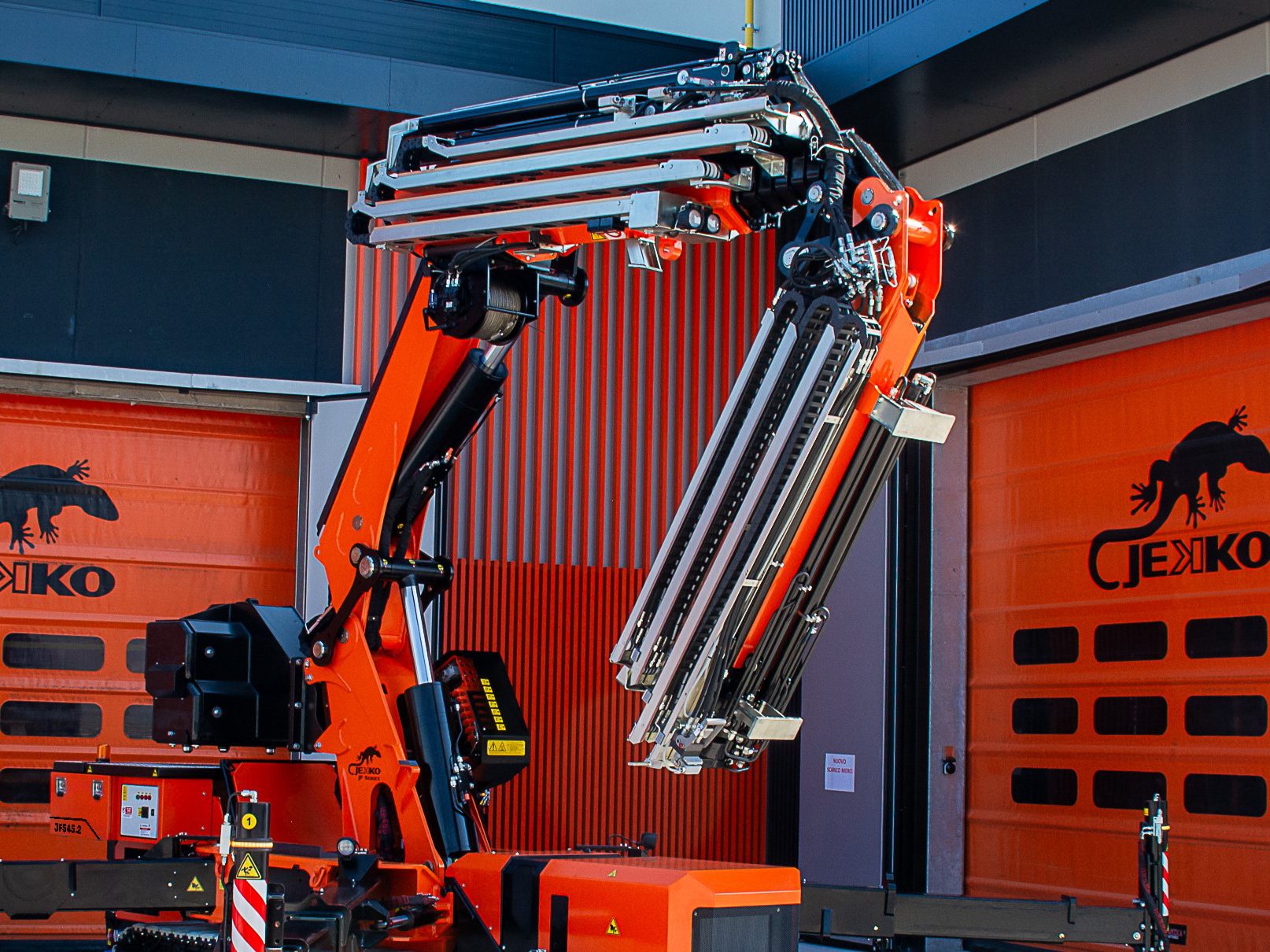

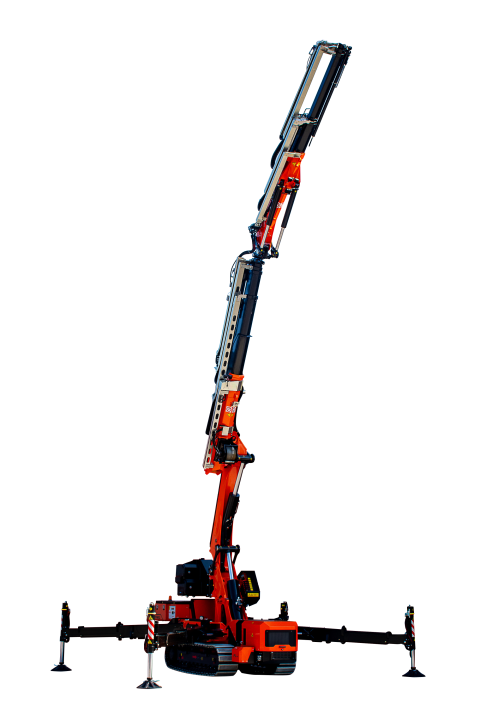

3 3 boom articulations 3 boom articulations

Higher boom versatility
Pass-over obstacles
Negative angle operation

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

Man Basket

2 Men steel baske with gravity levelling and/or mechanic slewing

J-Link by TrackUnit

Remote fleet monitoring and diagnostics; Built-in or retrofit on existing units.

Endless crane configurations

Different working mode: hooke, winch, hydraulic jib, runner jib and Plug&Play tools

Mechanical extensions

Diesel Engine

Kubota Diesel engine with DPF filter automatic management. Variable Speed Engine Management for low consumption, low noise, faster crane movement. Eco/Normal/Power working modes

Electric Power Pack (Bi-Energy)

Threephase Electric Power Pack 13kW - 50Hz 400V

Versatile stability configurations

  • Stepless outriggers rotation 0°/45°
  • Stepless telescopic outriggers extension
  • Adjustable outriggers height
  • Asymmetric configuration
