Articulated Crawler Cranes

JF235

13,560 lb16’ 1’’ x 5’ 11’’ x 9’ 2’’82’ 0’’74’ 6’’

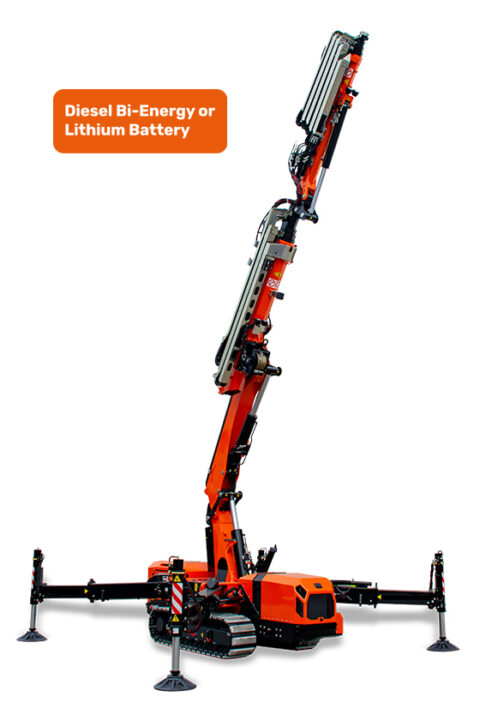

The JF235 knuckle boom crane is a powerful and compact solution that combines the flexibility of an articulated crane boom with the compactness and versatility of a mini crawler crane. This advanced model stands out in the articulating crane market for its versatility, precision, and compact size. Ideal for tight access areas, the JF235 performs liftings up to 13,560 lbs while offering the added reach and articulation of a knuckle boom design.
Now available in a full electric version – lithium battery operated –, JF235CL electric crane stands out for its ease of operation, offering clean, quiet operation with zero emissions.
Whether you’re doing industrial maintenance, lifting in urban sites or navigating complex spaces, the JF235CL articulated crawler crane is built to handle the job with ease and reliability.

Download the Technical Sheet Download the brochure JF235_CDH_V25.06_USA_DIGITAL Download the brochure JF235_CL_V25.06_USA_DIGITAL

Features:

Intuitive Touch Display

• 7” IP66 heavy duty
• Live stability area
• Crane assistant onboard
• Self-diagnostics & troubleshooting

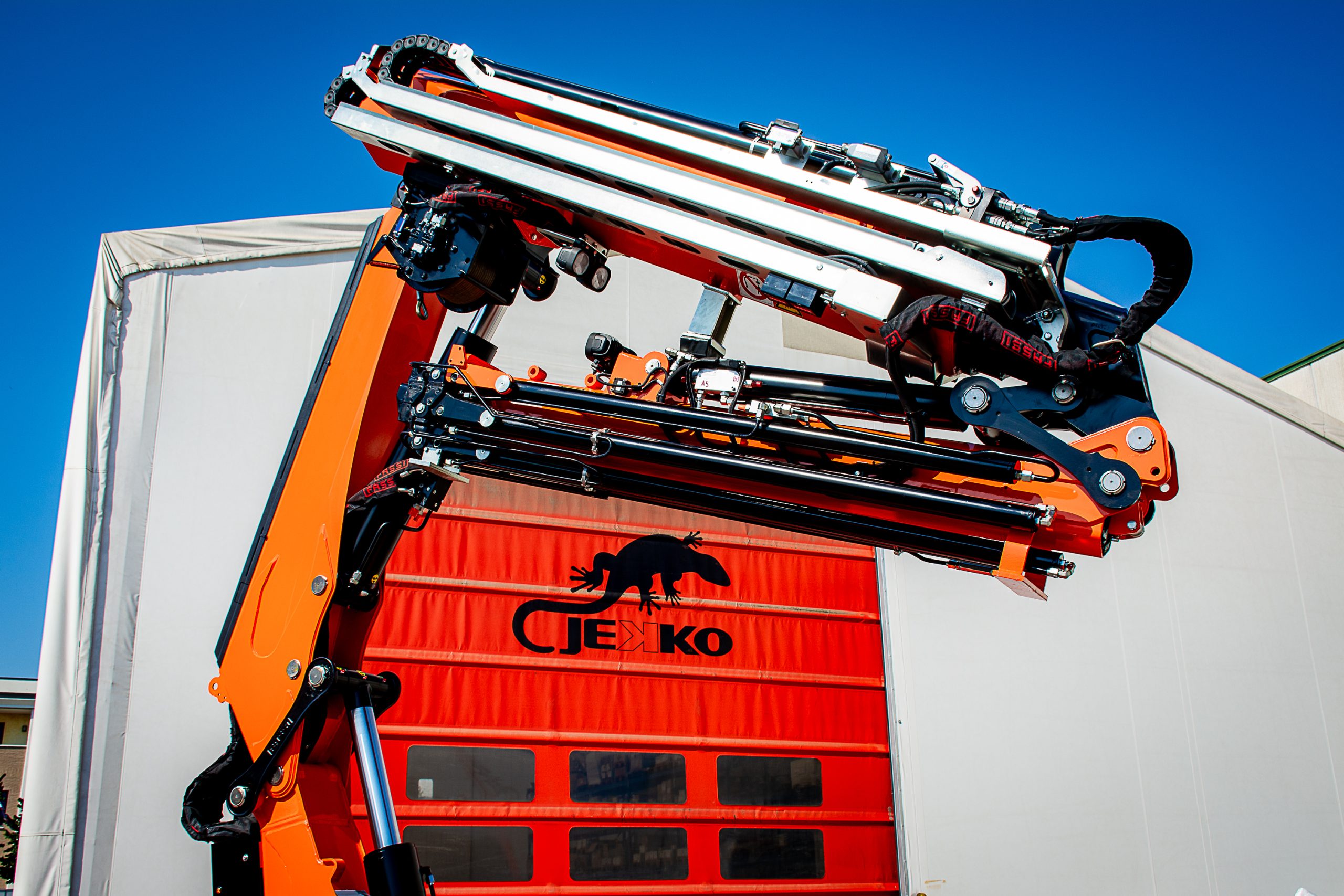

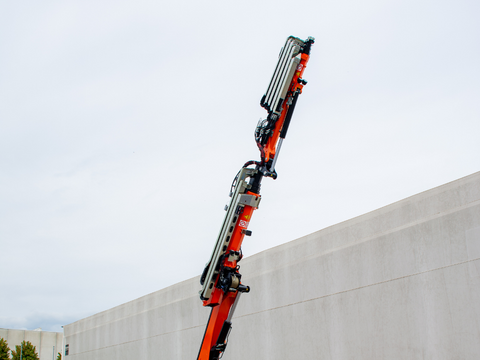

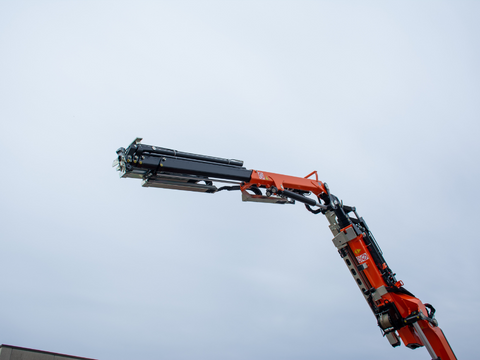

3 boom articulations

Higher boom versatility
Pass-over obstacles
Negative angle operation

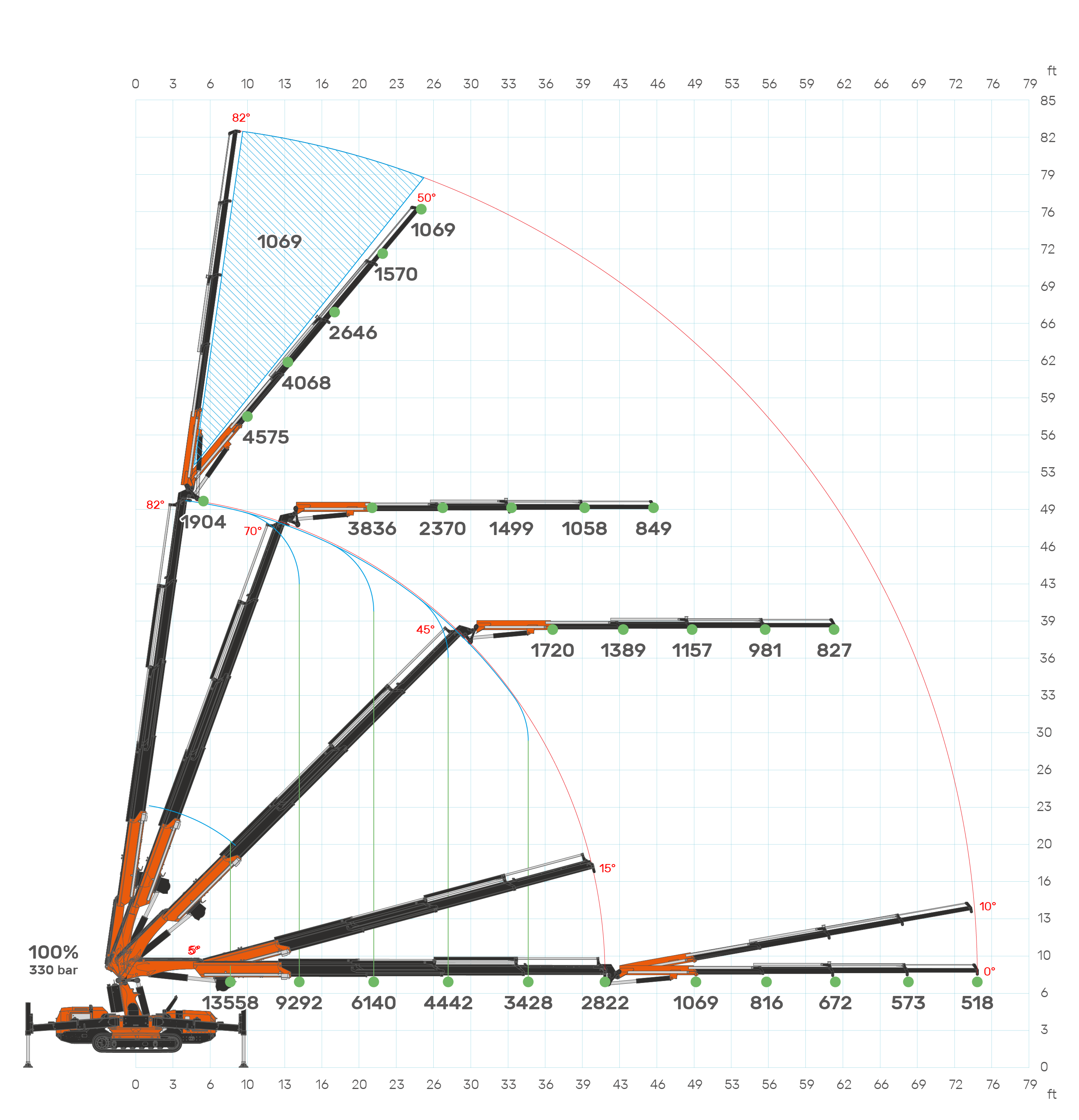

Load Chart

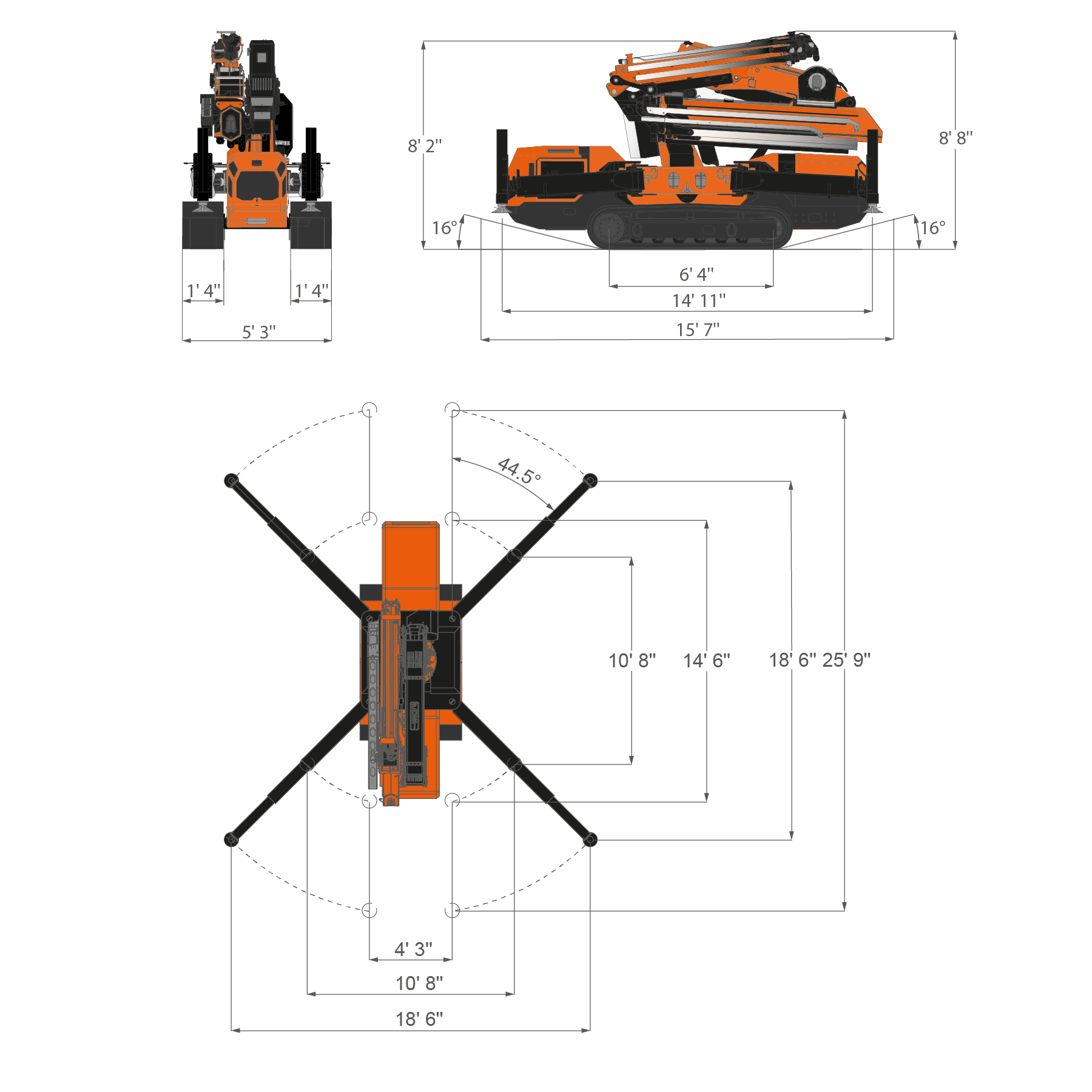

Dimensions

Standard Equipment

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

Man Basket

2 Men steel baske with gravity levelling and/or mechanic slewing

J-Link by TrackUnit

Remote fleet monitoring and diagnostics; Built-in or retrofit on existing units.

Lithium Battery

Indoor operation, emission freeMaintenance freeRuntime over 1 workdayOn board 110/230V fast charger: 0-80% in 3 hAdjustable charging currentWork while charging.

Endless crane configurations

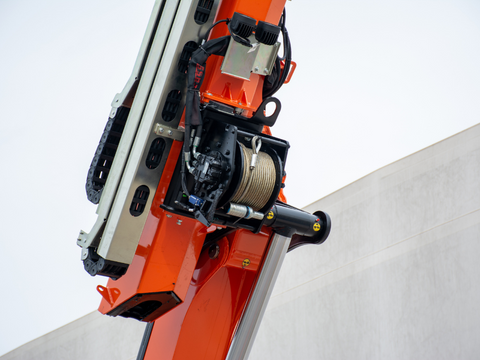

Different working mode: hooke, winch, hydraulic jib, runner jib and Plug&Play tools

Mechanical extensions

Diesel Engine

Kubota Diesel engine with DPF filter automatic management. Variable Speed Engine Management for low consumption, low noise, faster crane movement. Eco/Normal/Power working modes
